Acquisition
Setting Up Signal Input
Use front-panel buttons to set up your instrument to acquire the signal.

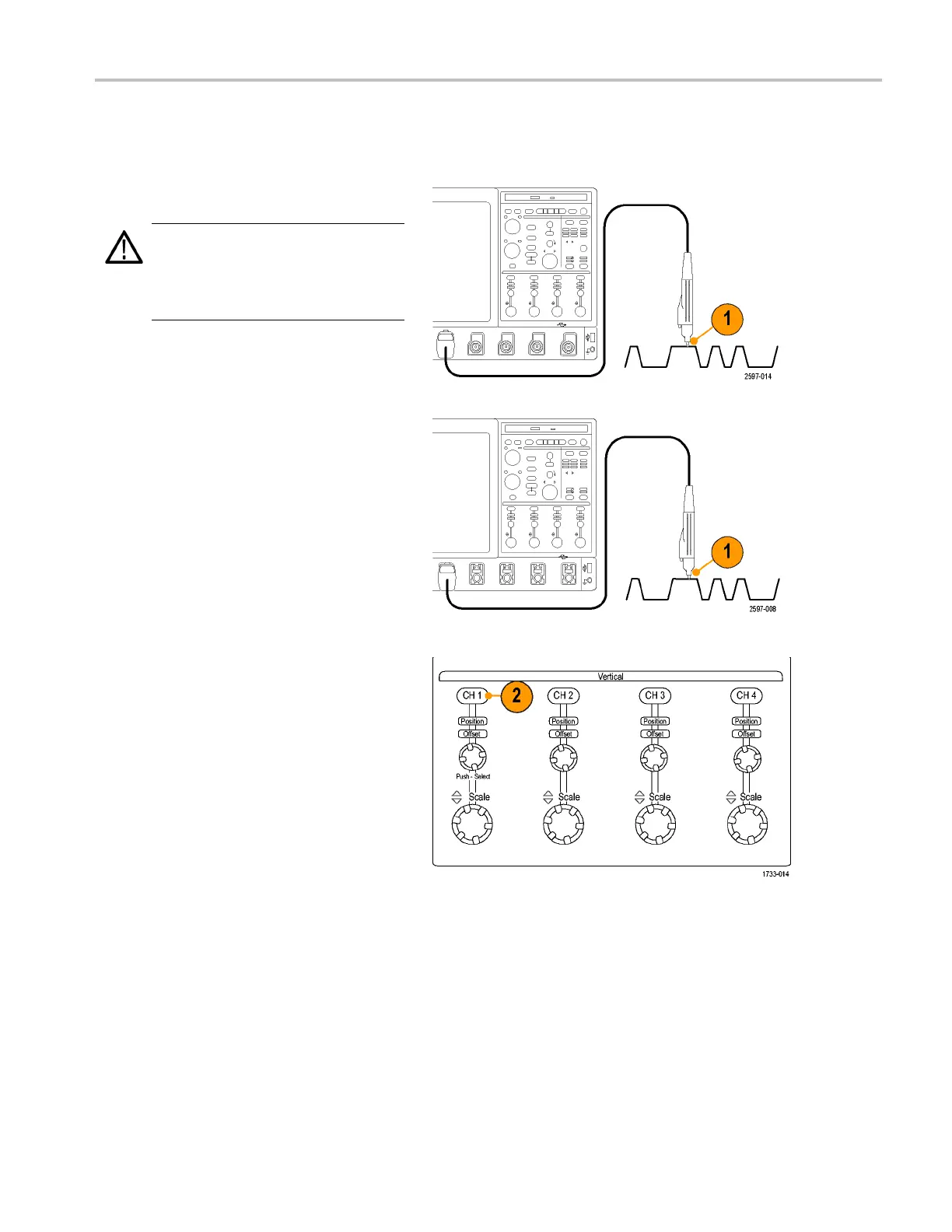

1. Connect the probe to the input signal
source.
CAUTION. To prevent damage to the
instrument, always wear an antistatic wrist
strap when making connections to the
instrument and observe the maximum input
voltage ratings for input connectors.
<4 GHz models
≥4 GHz models
2. Select the input channel by pushing
the front-panel buttons to toggle the
channe
ls on and off.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 25
