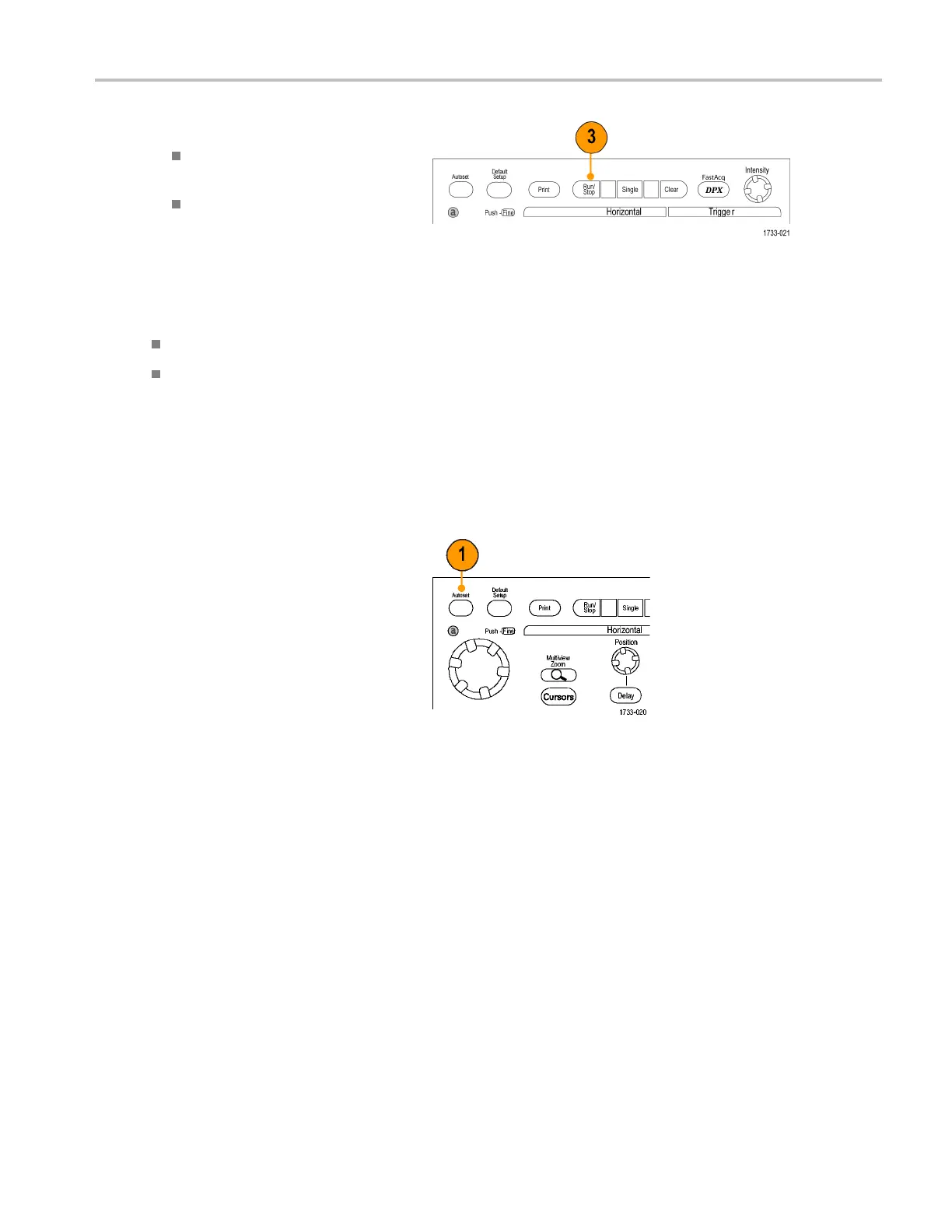

Acquisition
3. To stop acquisi
tions in Roll mode:
If you are not i
n Single Sequence,
push RUN/STOP to stop Roll mode.
If you are in Single S equence, Roll
mode acquisitions stop automatically
when a comple
te record is acquired.
Quick Tips
Switching to Envelope, Average, or WfmDB acquisition mode will turn off Roll mode.
Roll mode is disabled when you set the horizontal scale to 50 ms per division or faster.
Using FastFrame Mode
FastFrame allows you to capture m any trigger events as single records in a larger record, and then view and measure
each record individually. Time Stamps display the absolute trigger time for a specific frame and the relative time between
triggers
of two specified frames.
1. Push AUTOSET to set the horizontal,
vertical, and trigger controls or set the
control
s manually.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 39
