Acquisition

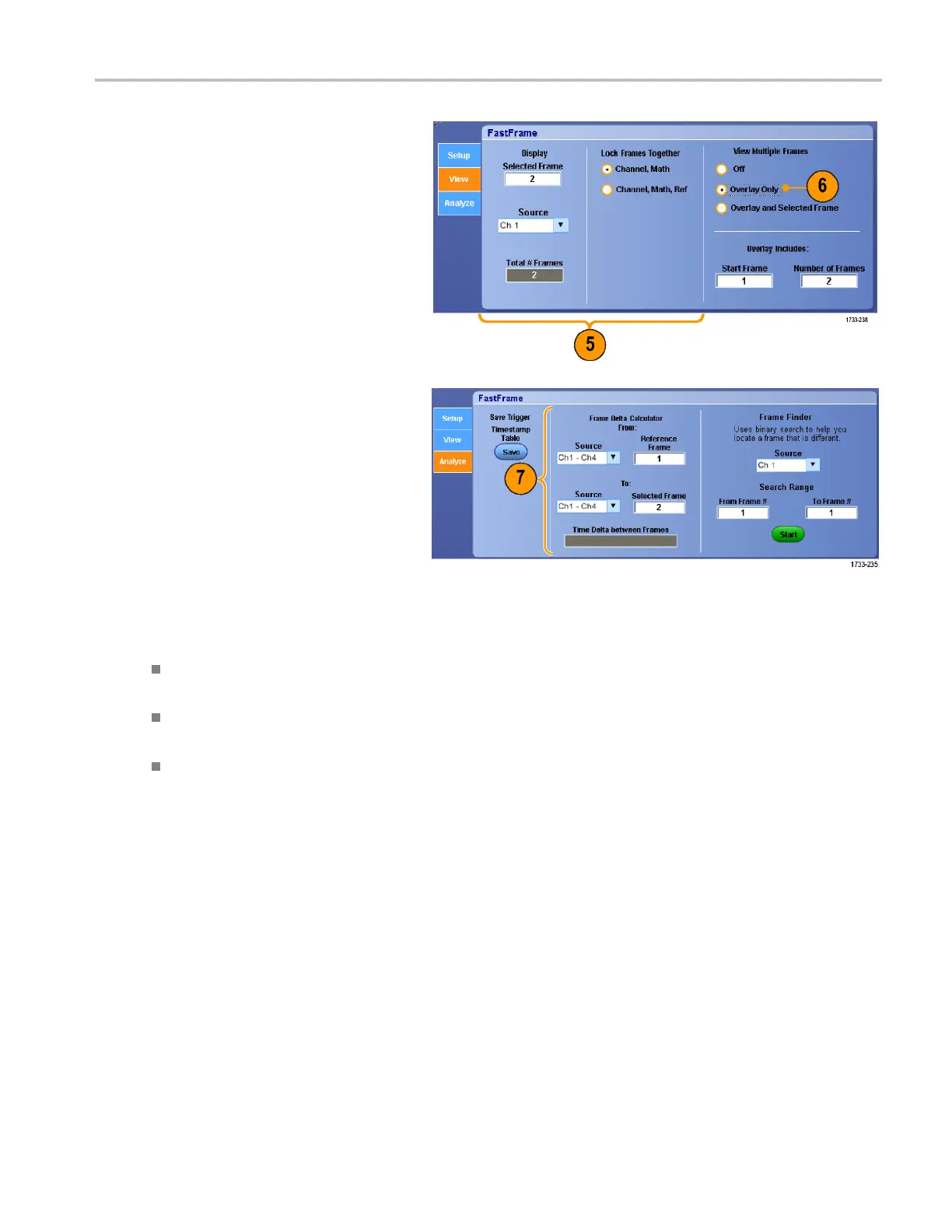

5. Use the Frame Vi
ewing controls to select
the frame that you want to view.
6. To view multiple frames superimposed
over each other, select Overlay.
7. Use the Time Stamps controls to select
the source for, and frame number of, the
reference
frame. The reference frame
is the starting point when measuring the
relative time between tw o frames.
Quick T
ips
Use FastFrame when you want to preserve the data associated with each trigger event for further analysis or visual
inspections.
Use FastFrame when you want to capture multiple events that have long dead times between them that are of no
interest to you.
Multiple frames are best viewed with the Normal, Green, or Gray color palettes because the dark b lue s elected frame
may be hard to distinguish if you use Temp or Spectral.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 41
