Front panel
The front panel of the 2601B-PULSE is shown below. The descriptions of the front-panel controls, USB port,
and indicators follow the figure.

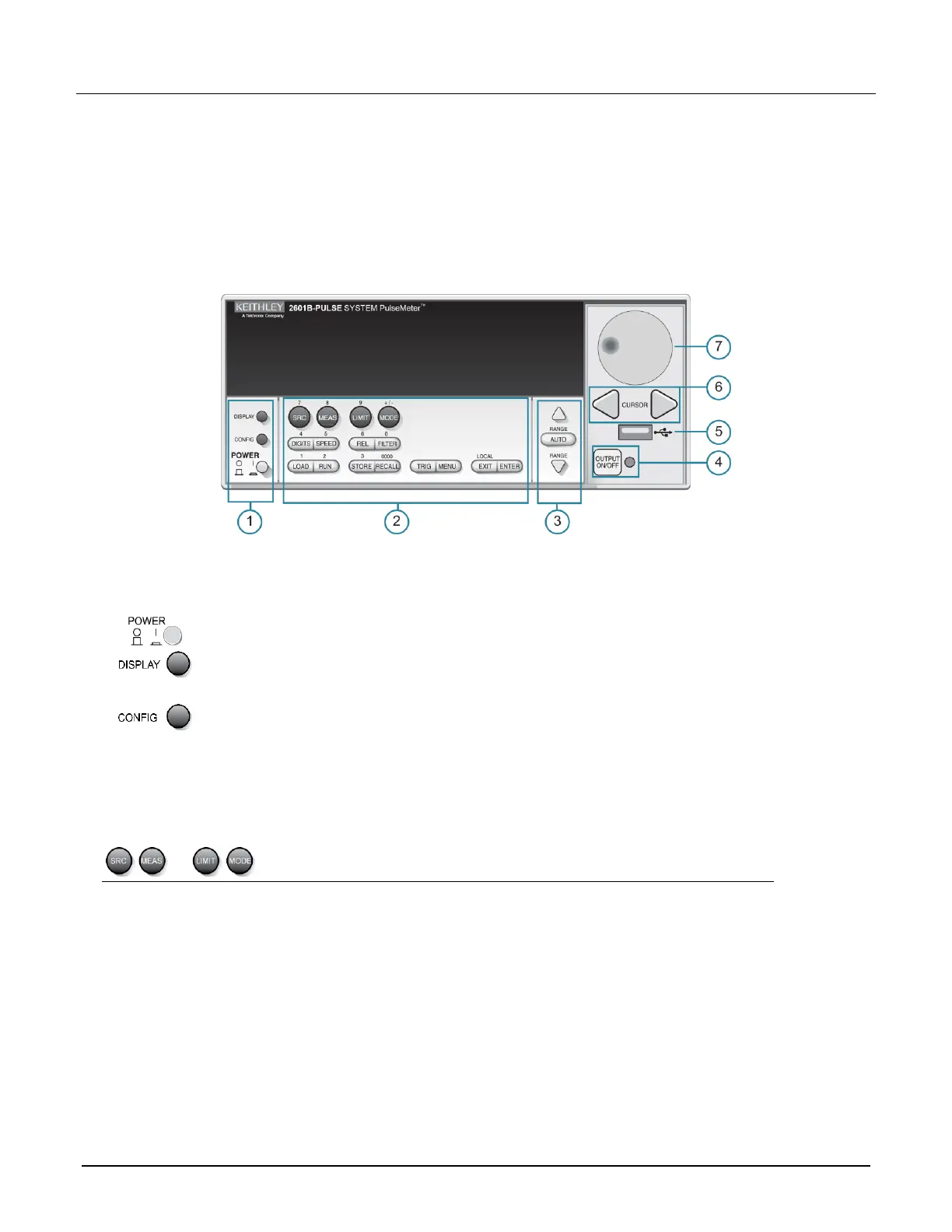

Figure 1: 2601B-PULSE front-panel controls
1. Power switch, display and configuration keys
Power switch. The in position turns the 2601B-PULSE on (I); the out position turns it
off (O).
Toggles between the various source-measure displays and the user message mode.
Configures a function or operation.
2. SMU setup, performance control, special operation, and
numbers
SMU (source-measure unit) setup
SRC
Selects the source function (voltage or current) and places the cursor in the source field
for editing.
MEAS
Cycles through measure functions (V, A, Ω or W).
LIMIT
Places the cursor in the compliance limit field for editing. Also selects the limit value to
edit (V, A, or W).
MODE
Selects a meter mode (I-METER, V-METER, OHM-METER, or WATT-METER).
