Power-On and Power-Off Procedure
1. Connect the osc
illoscope power cable.
2. Power on the oscilloscope.

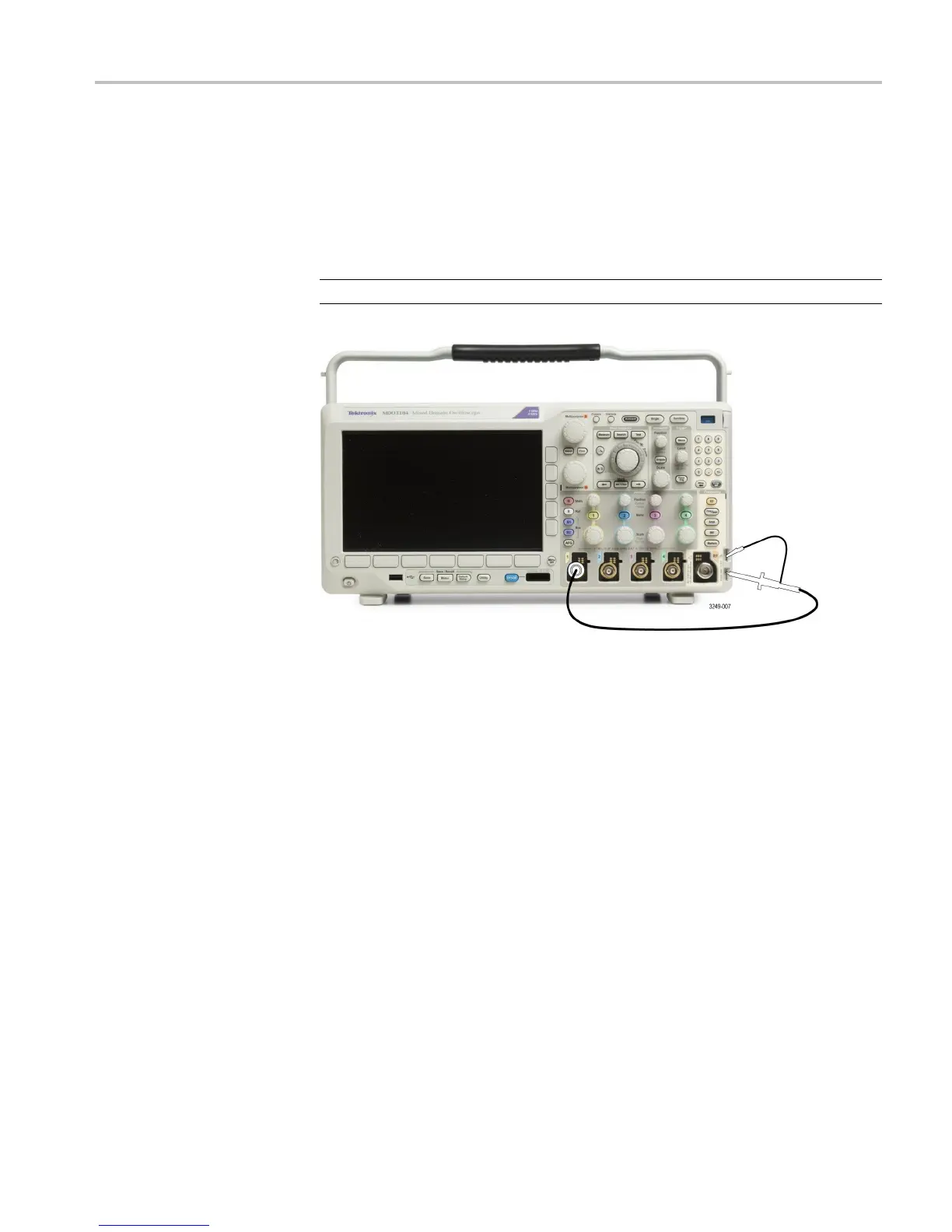

3. Connect the probe connector to the oscilloscope channel, and the probe tip
and reference lead to the PROBE COMP terminals on the oscilloscope
front panel
.
NOTE. Connect only one probe at a time to the probe comp terminals.
4. Push a front panel button for an input channel c onnected to the probe you
wish to compensate. (1, 2, 3,or4)
5. Notice on the lower menu that the oscilloscope has automatically set the
probe termination v alue.
6. Push More repeatedly to se lect Probe Setup from the resulting pop-up menu.
7. Not
ice that the compensation status starts as Default.
8. Push Compensate probe and follow the instructions that appear on the
di
splay.
MDO3000 Installation and Safety Instructions 25
