Getting Acquainted with the Oscilloscope
Identifyin
g Items in the Frequency Domain Display
Activate the frequency domain display by pressing the front panel RF button.

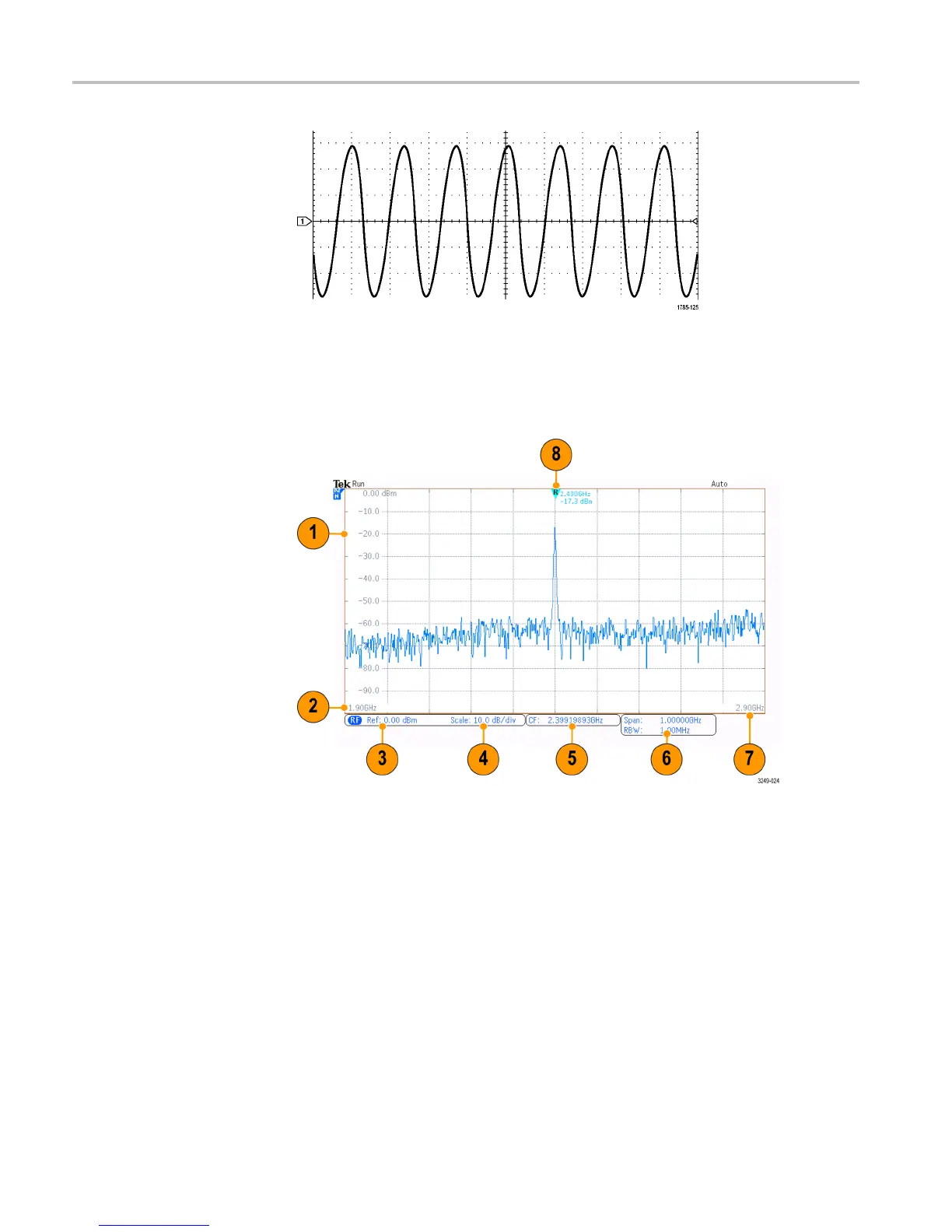

1. Vertical graticule labels
2. Start frequency
3. Reference level
4. Ver
tical scale
5. Center frequency
6. Span and resolution b andwidth
7. Stop frequency
8. Reference marker
