A. Multiple Peaks Demonstration
This exercise demonstrates how the
frequency and amplitude of peaks in
the spectrum are quickly identified with
automatic peak markers.
1. Attach an N-to-BNC adapter to the RF
input on the oscilloscope.
2. Connect a BNC cable to the adapter.
3. Connect the other end of the cable to
the RF Out (BNC) connector on the
demonstration board.
4. Press the Mode button on the MDO
Demonstration board until the Multiple
Peaks LED is lit.
5. Press Default setup front-panel button.

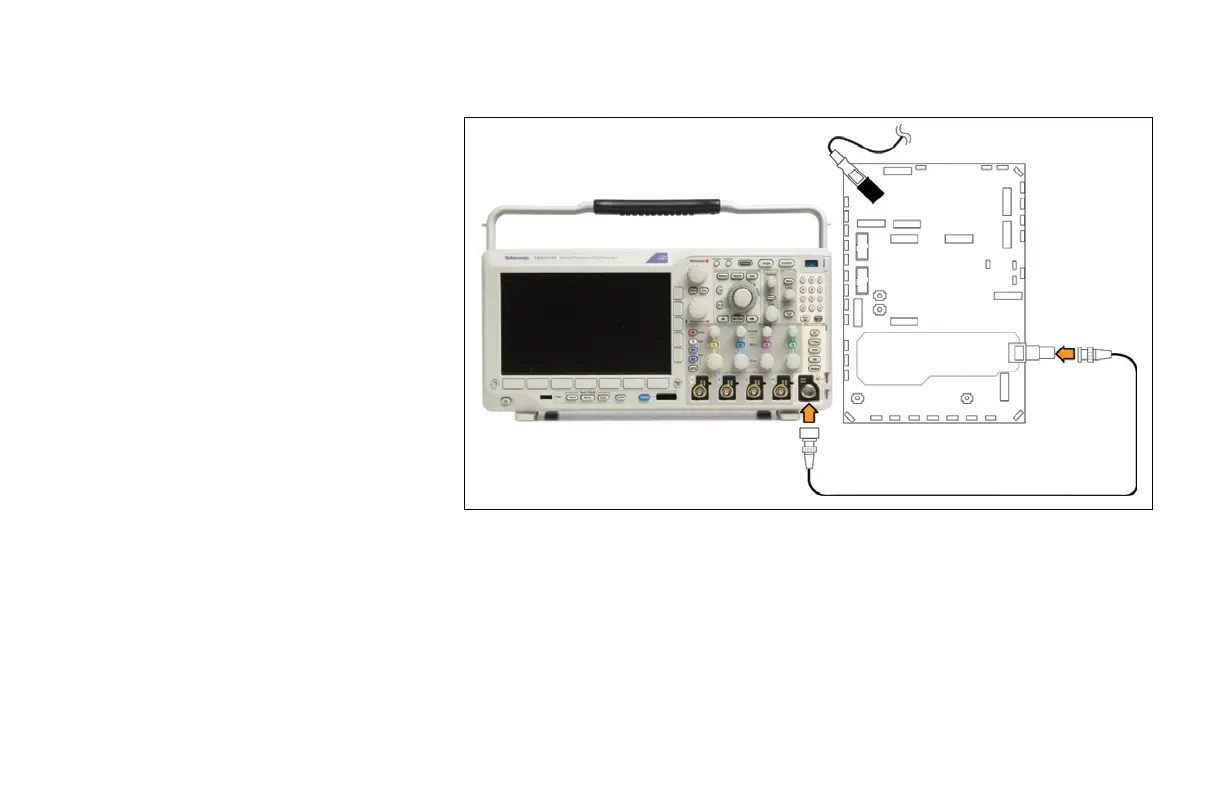

Figure 26.
