Tektronix MDO34 Installation And Safety Manual

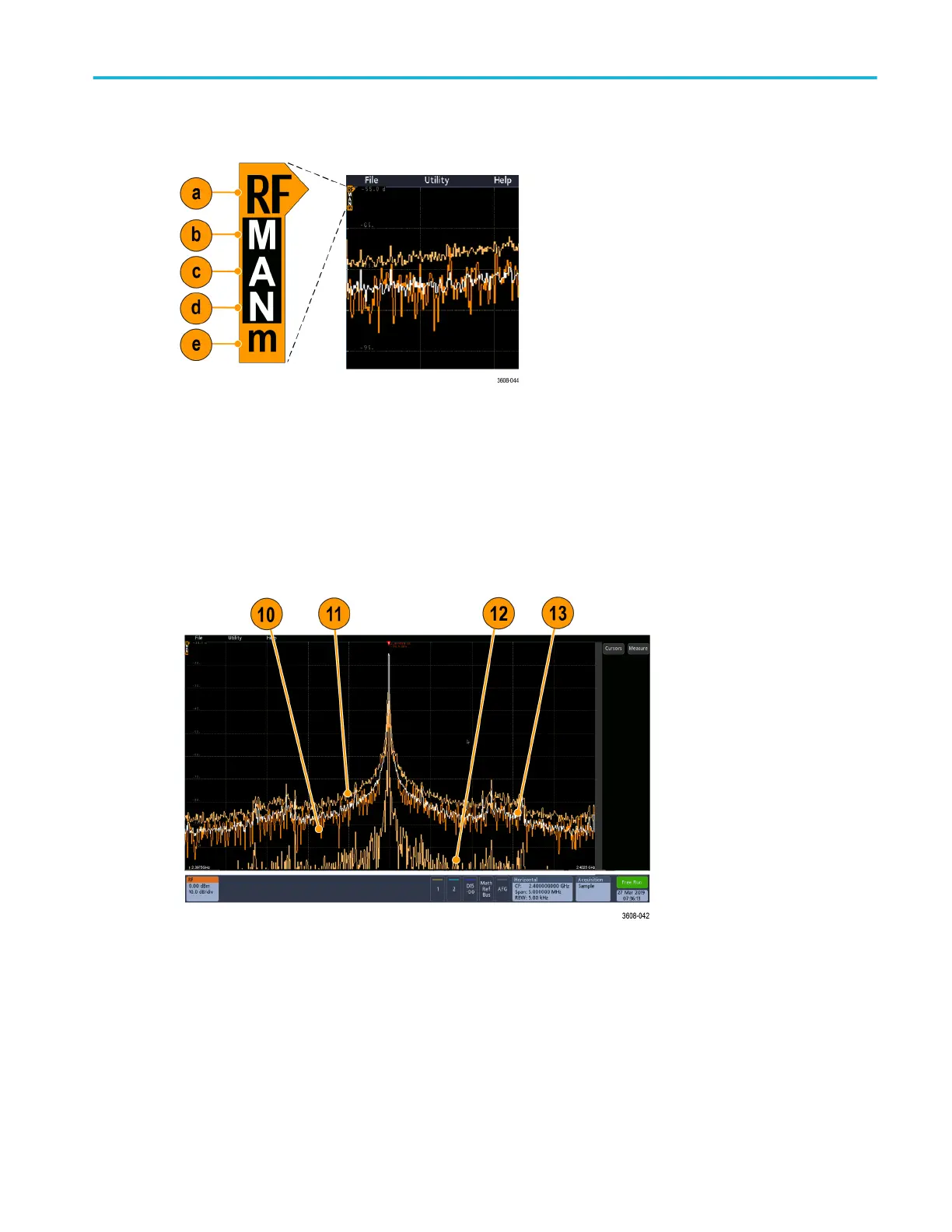

9. Displayed trace indicators
a. An RF trace indicator is placed at the Reference Level.
b. A capital M appears if the maximum trace is turned on.
c. A capital A appears if the average trace is turned on.
d. A capital N appears if the normal trace is turned on.
e. The small m appears if the minimum trace is turned on.
Orange highlighting indicates the currently selected trace. In the figures the small m, which stands for the minimum
trace, is highlighted. This indicates that the minimum trace is currently selected.
10. Normal trace: Each acquisition is discarded as new data is acquired.
11. Max hold trace: The maximum data values are accumulated over multiple acquisitions of the Normal trace.
12. Min hold trace: The minimum data values are accumulated over multiple acquisitions of the Normal trace.
13. Average trace: Data from the Normal trace is averaged over multiple acquisitions. This is true power averaging, which
occurs before the log conversion. Each power of 2 averaging reduces the displayed noise by 3 dB.
Getting acquainted with your instrument
MDO32, MDO34 Installation and Safety Manual 21
ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
