Trigger Setup
Slope and Level

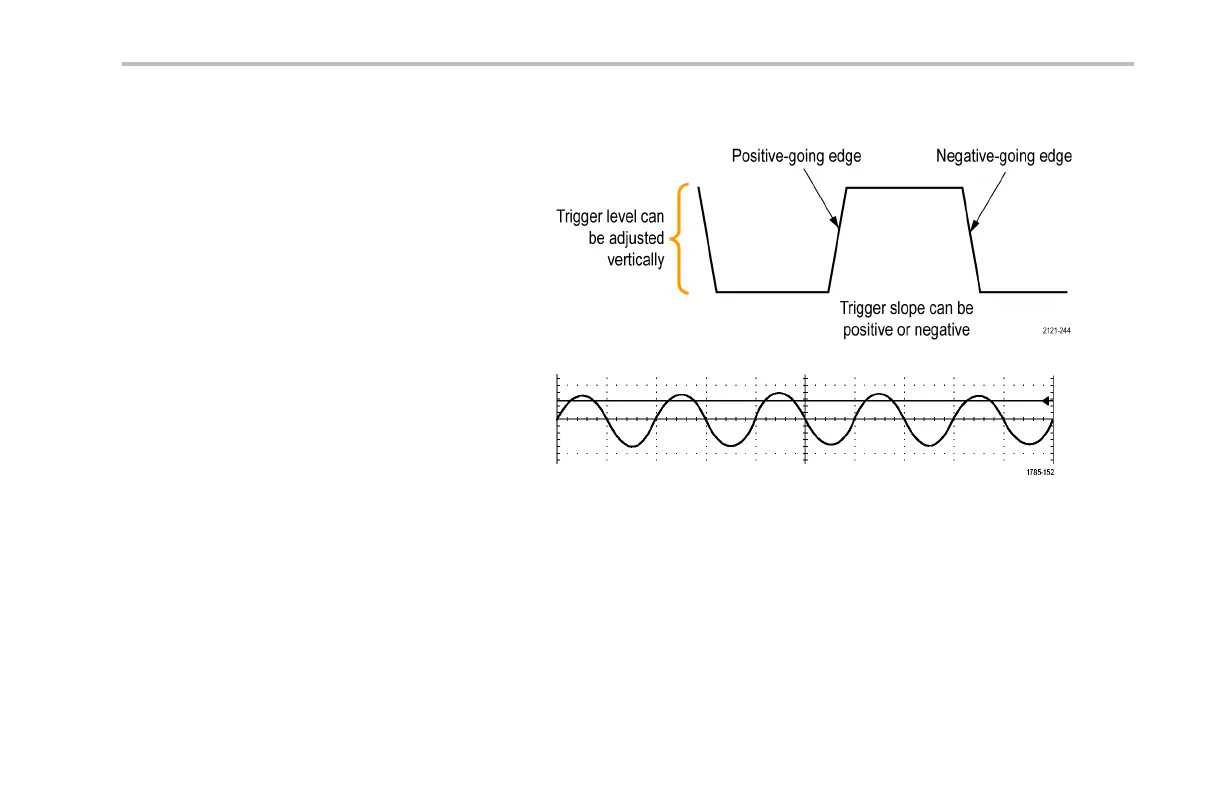

The slope contro l determines whether the
instrument find s the trigg er point on the rising
or the falling edge of a signal.
The level control determines where on that
edge the trigger point occurs.
The oscilloscope provides a long horizontal bar
or bars across the graticule to temporarily show
the trigger level.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 135
