Analyze Waveform Data
2. Push Cursors again.

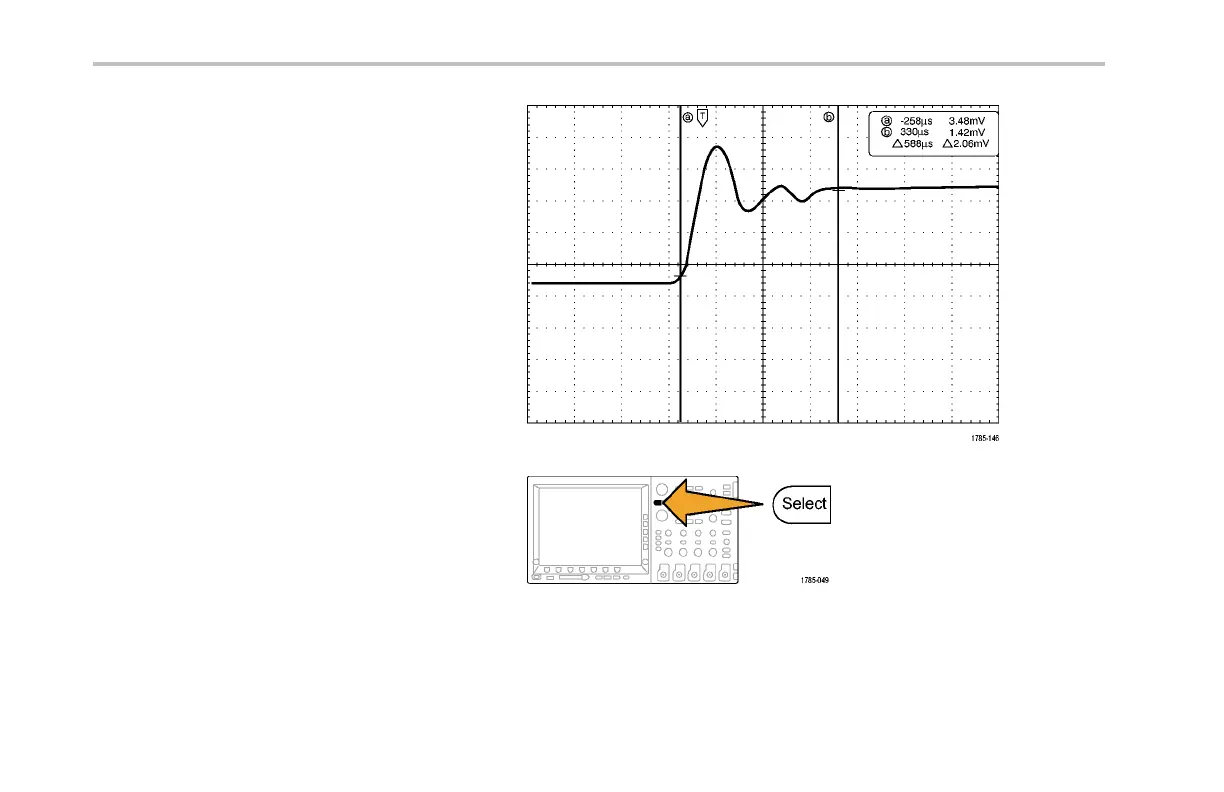

In the example, two vertical cursors appear
on the selected screen waveform. As you
turn multipurpose knob a, you move on e
cursor to the right or left. As you turn knob
b, you move the other cursor.
If you c ha nge the selected waveform by
pushing the front-panel 1, 2, 3, 4, M, R,or
D15-D0 button, both cursors jump to the
new selected waveform.
3. Push Select.
This turns the cursor linking on and off. If
linking is on, turning multipurpose kn ob a
moves the two cursors together. Turning
multipurpose knob b adjusts the time
between the cursors.
208 MSO4000 and DPO4000 Series Oscilloscopes User Manual
