Application E xamp les

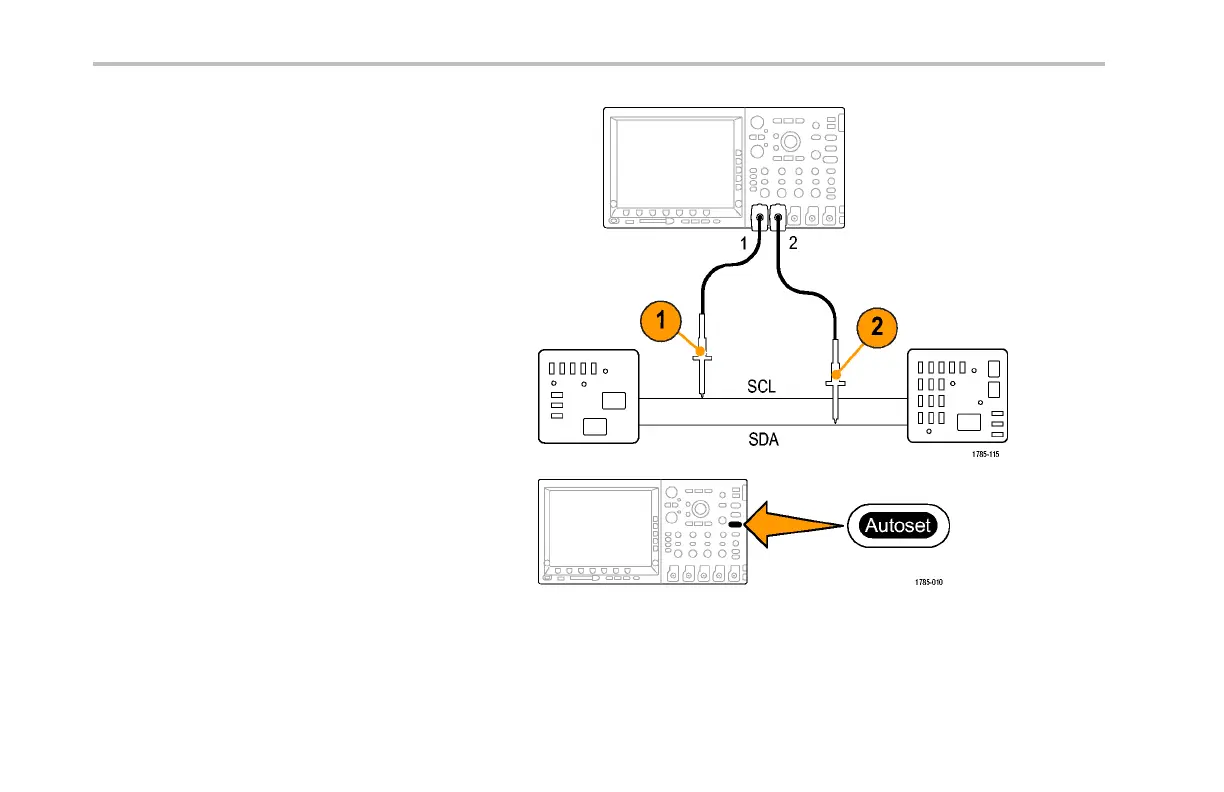

1. Connect the channel 1 probe to the clock line.
2. Connect the channel 2 probe to the data line.
3. Push Autoset.
306 MSO4000 and DPO4000 Series Oscilloscopes User Manual
