Application E xamp les
7. Turn the H orizontal Scale knob to adjust the
timebase.
As you increase the time per division, you will
see m ore data appear in the Bus display.

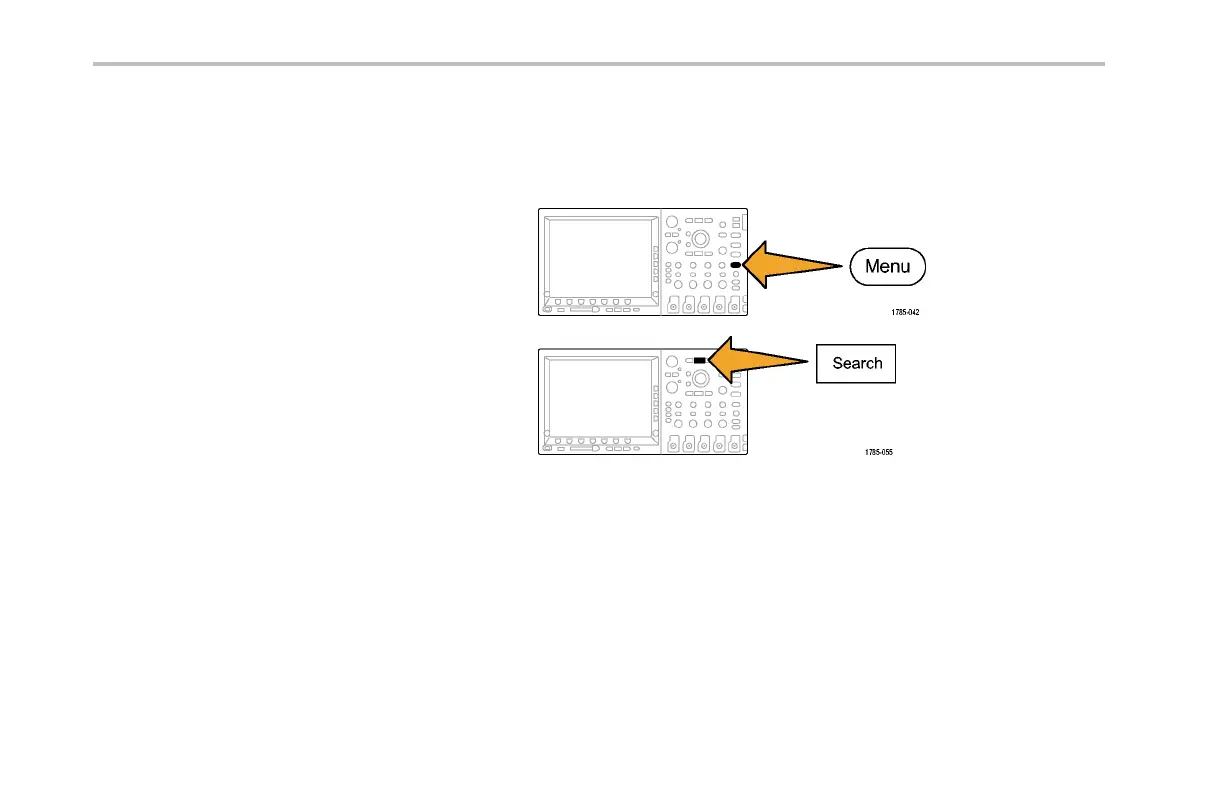

8. Push Trigger Menu .PushType, select Bu s ,
and enter the parameters of t he trigger, such
as the Source Bus and Data. Define the Mode
and Holdoff as desired.
9. Push Search, push the Search lower-bezel
button, and select On in the side-bezel menu.
10. Push Sea rch Type. Use the multipurpose
knob a to se lect Bus and then push Data.Use
the multipurpose knobs a and b to define the
data value.
312 MSO4000 and DPO4000 Series Oscilloscopes User Manual
