Power-On and Power-Off Procedure

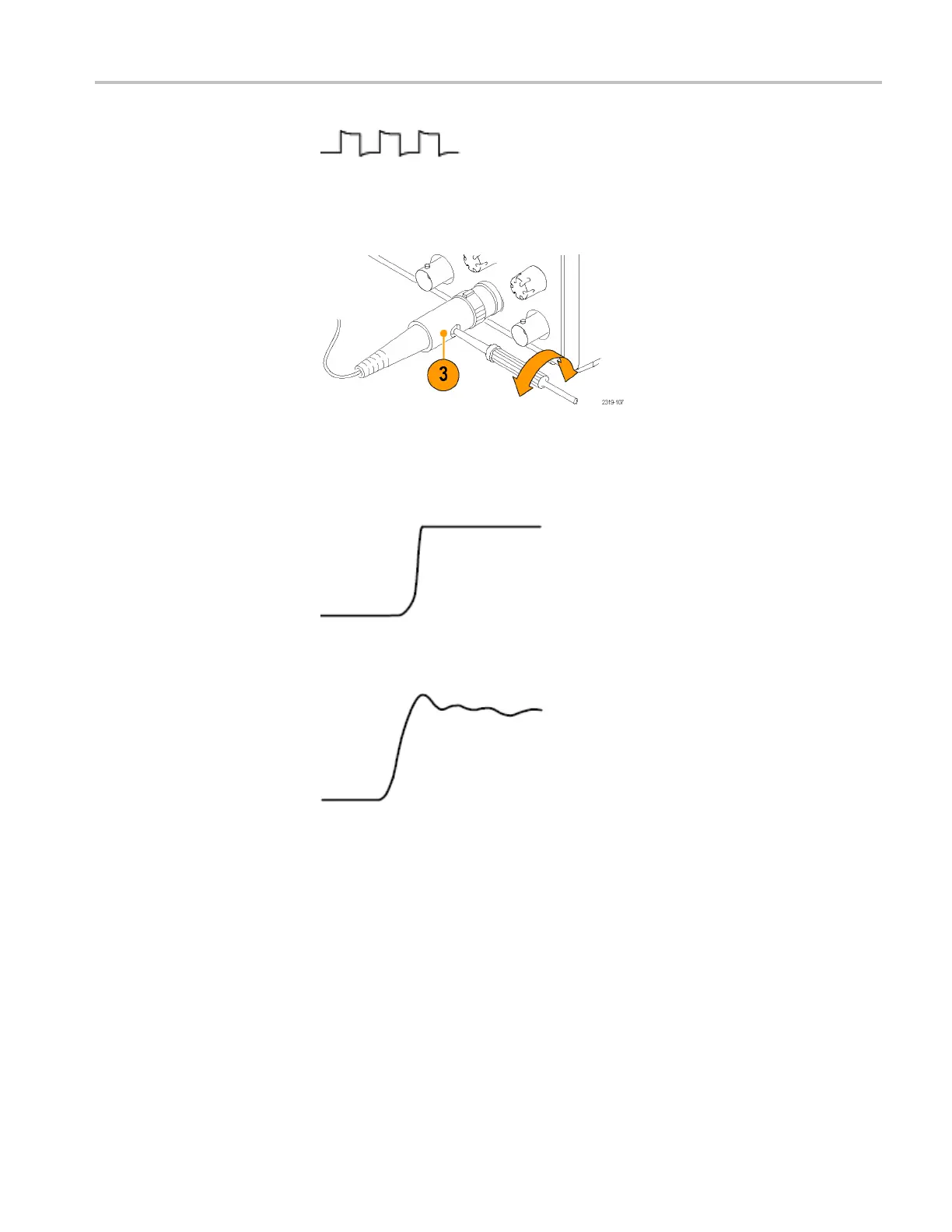

Figure 5: Over
compensated
3. If necessary
, adjust your probe. Repeat as needed.
Quick Tips
Use the shortest possible ground lead and signal path to minimize probe-induced
ringing and distortion on the measured signal.
Figure 6: Signal with a short ground lead
Figure 7: Signal with a long ground lead
Application Module Free Trial
A 30-day free trial is available for all application modules not installed in your
oscilloscope. The trial period begins when you power on the oscilloscope for
the first time.
After 30 days, you must purchase the module if you want to continue using the
application. To see the date when your free trial period expires, push the front
panel Utility button, push the lower-bezel Utility Page button, use multipurpose
knob a to select Config, and push the lower-bezel About button.
