Getting Acquainted with the Oscilloscope

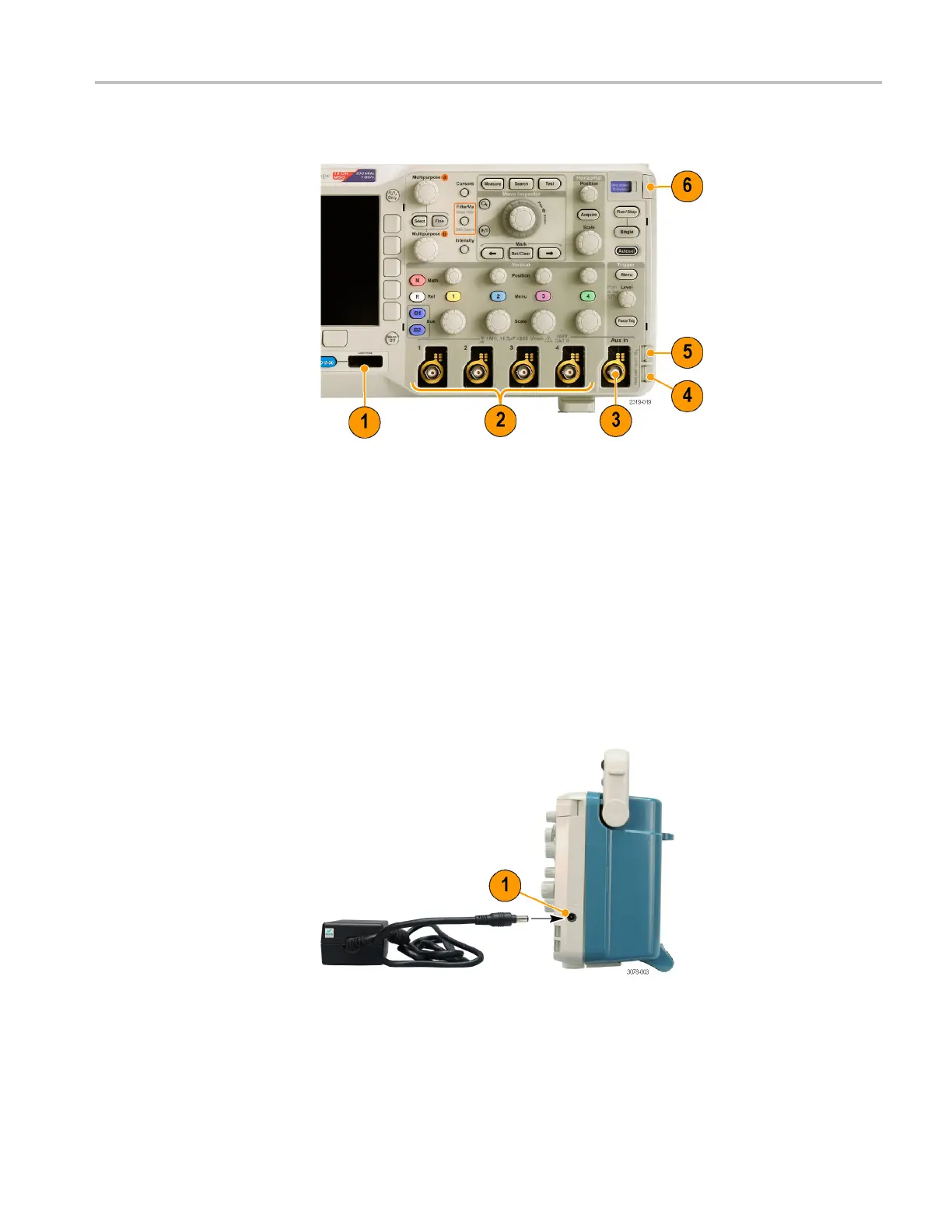

Front-Panel C
onnectors
1. Digital Probe Connector (MSO2000B series only).
2. Channel 1, 2 ,(3, 4). Channel inputs w ith TekVPI Versatile Probe Interface.
3. Aux In. Trigger level range is adjustable from +12.5 V to –12.5 V.
4. PROBE COMP. Square wave signal source to compensate probes
Output voltage: 0 V to 5 V, Frequency: 1 kHz
5. Groun
d.
6. Application Module Slots.
Side-Panel Connector
MSO2000B and DPO2000B Installation and Safety Instructions 31
