Acquire the Signal

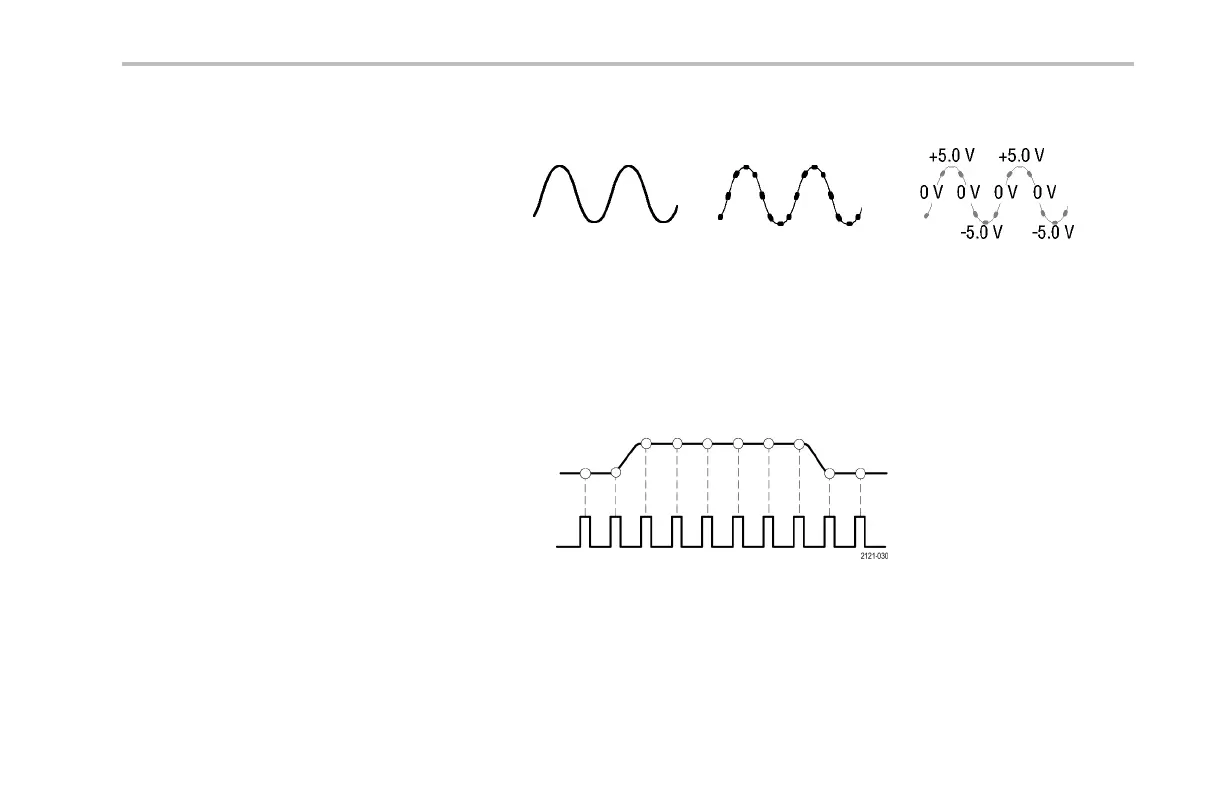

Sampling Process
Acquisition is the process of sampling an
analog signal, c onverting it into digital data,
and assembling it into a waveform record,
which is then stored in acquisition memory.
Input signal
Sampled points
Digital values
Real-Time Sampling
Record points
DPO2000 and MSO2000 series oscilloscopes
use real-time sampling. In real-time sampling,
the oscilloscope digitizes all of the points it
acquires using a single trigger event.
Sampling rate
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 85
