Tektronix MSO2012 User Manual

Trigger Setup

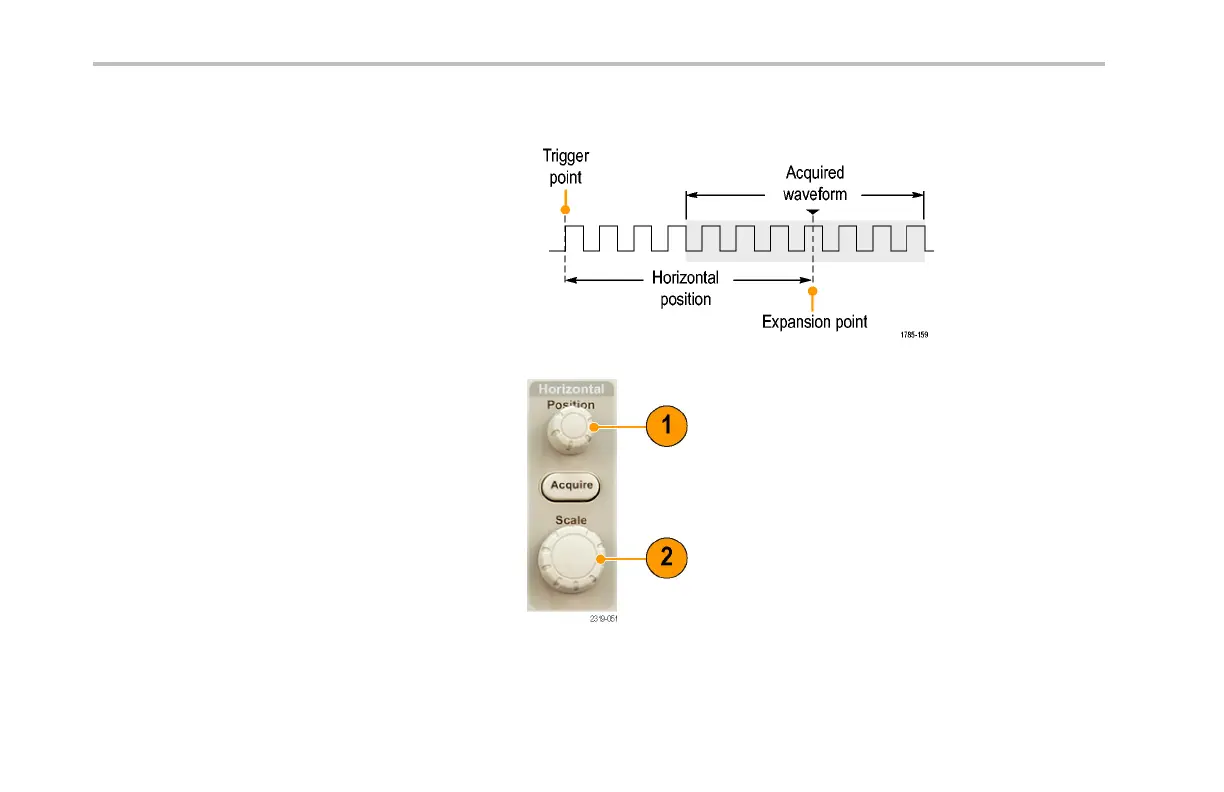

Horizontal Position
When Delay Mode is on, use horizontal
position to acquire waveform detail in a region
that is separated from the trigger location by a
significant interval of time.
1. Adjust the position (delay) time by rotating
the Horizon tal Position knob.
2. Turn the horizontal Scale knob to acquire
the det ail that you need around the position
(delay) expansion point.
126 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
