Getting Acquainted with the Oscilloscope

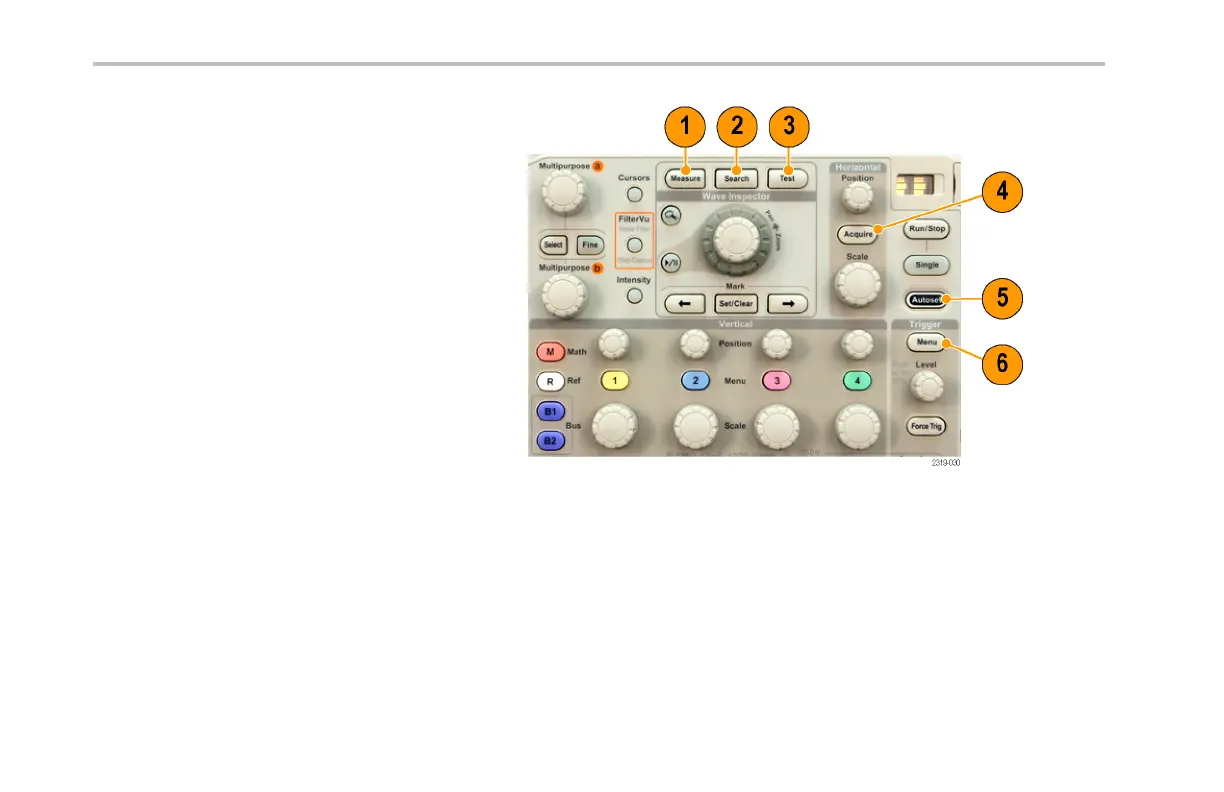

1. Measure. Push to perform automated
measurements on waveforms o r to
configure cursors.
2. Search. Push to search t hrough an
acquisition for user-defined events/criteria.
3. Test. Push to activate advanced or
application-specific testing features.
4. Acquire. Push to set the acquisition mode
and adjust the record length .
5. Autoset. Push to perform an automatic
setup of oscilloscope settings.
6. Trigger Menu. Push to specify trigger
settings.
52 DPO2000 and MSO2000 Series Oscilloscopes User Manual
