Getting Acquainted with the Oscilloscope

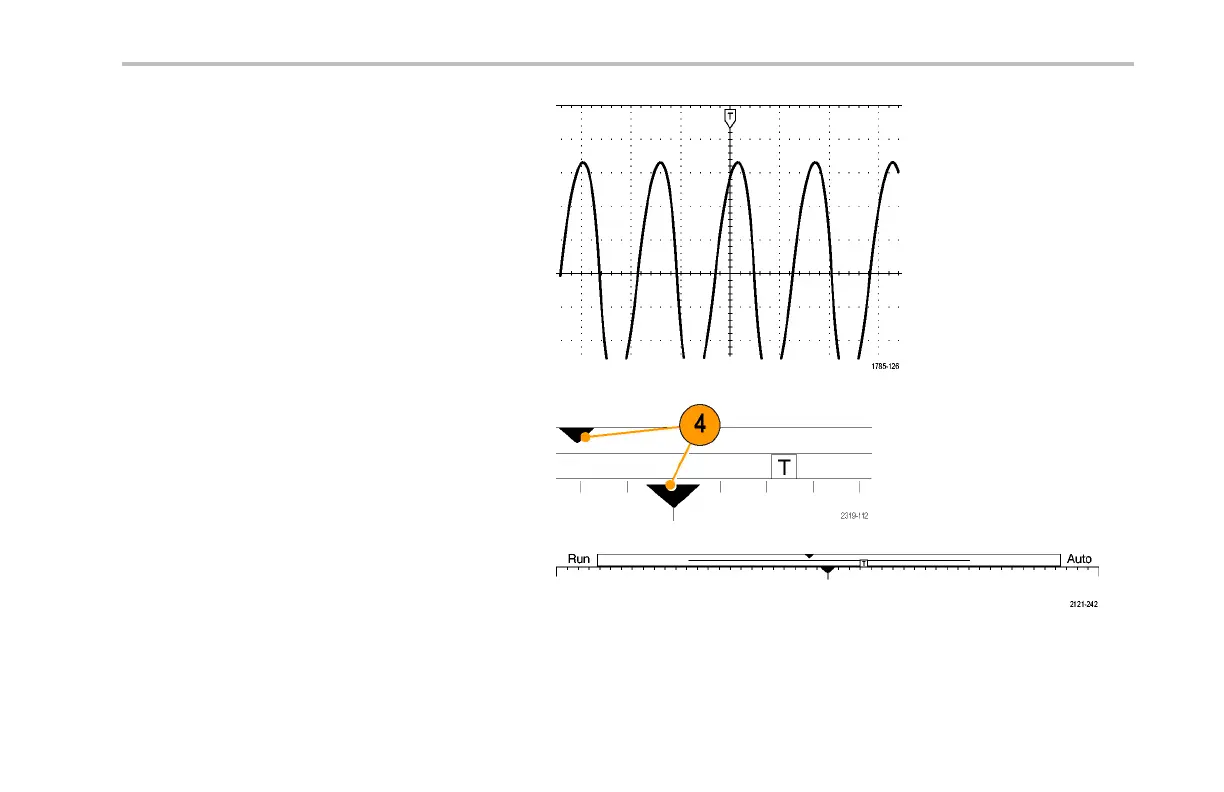

3. The trigg er position icon shows where the
trigger occurred in the acquisition.
4. The expansion point icon (an orange
triangle) shows the point that the horizon tal
scale expands and compresses around.
5. The waveform record view shows the
trigger location relative to the waveform
record. The line color corre sponds to the
selected waveform color.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 65
