Get Acquainted with the Instrument

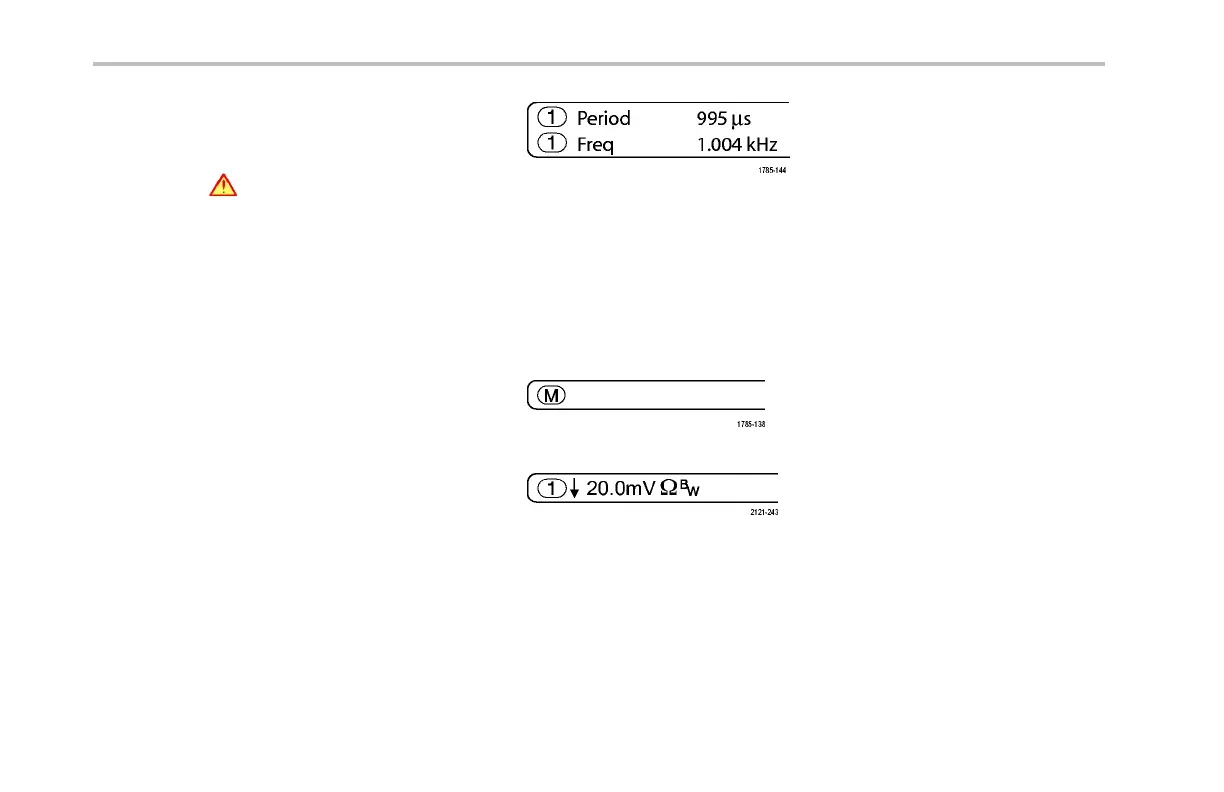

12. Measurement readouts show the selected
measurements. You can select up to eight
measurements to display at one time.
A
symbol appears instead of the
expected numerical measurement if a
vertical clipping condition exist s. Part of the
waveform is above or below the display. To
obtain a proper numerical measure m ent,
turn the vertical scale and position knobs
to make all of the wa veform appear in the
display.
13. T he auxiliary waveform readouts show the
vertical and horizontal scale factors of the
math and reference waveforms.
14. T he channel readout shows the channel
scale factor (per division), coupling, invert,
and bandwidth status. Adjust with the
Vertical Scale kno b and the channel 1, 2,
3,or4 menus.
74 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
