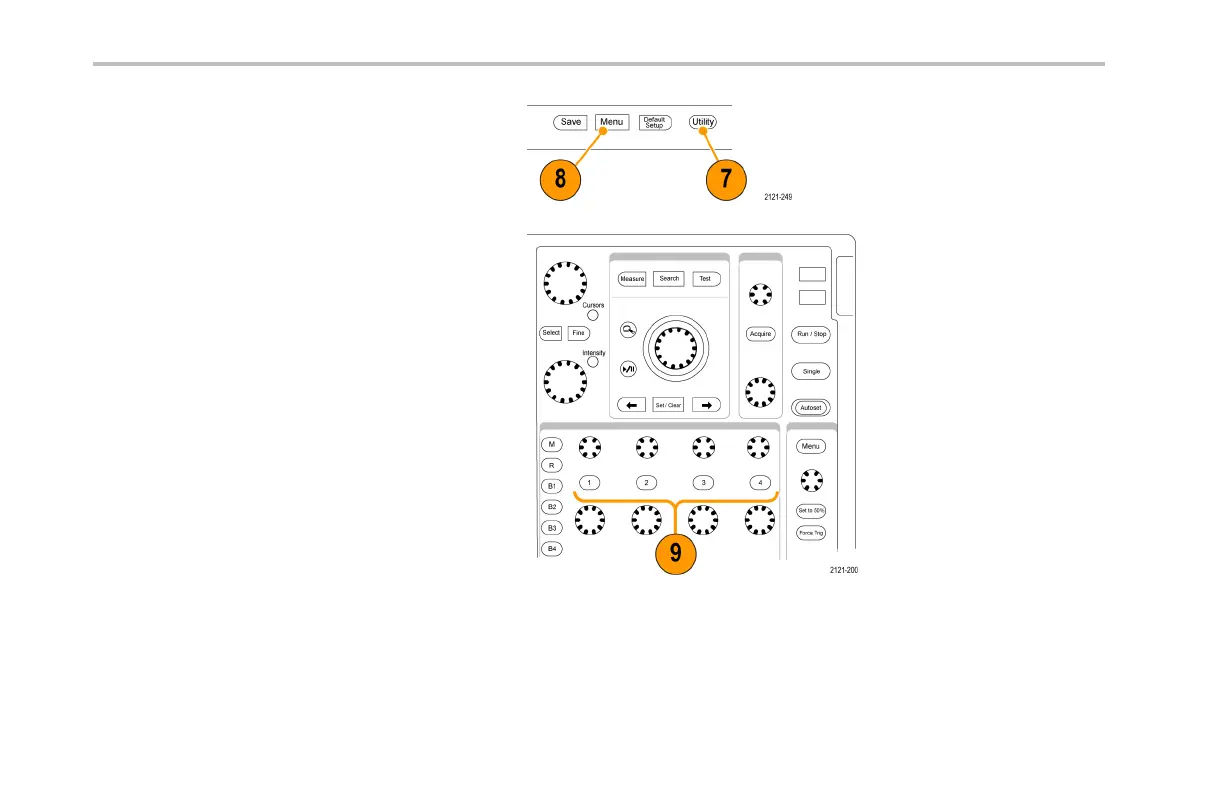

Get
Acquainted
with
the
Instrume
nt
7.
Utility
.
Push
to
activate
the
system
utility
functions,
such
as
selecting
a
language
or
setting
the
date/time.
8.
Save
/
Recall
Menu
.
P
u
s
ht
os
a
v
e
and
recall
setups,
waveforms,
and
screen
images
to
internal
m
emory
,
a
CompactFlash
card,
or
a
USB
fl
ash
drive.
9.
Channel
1
,
2
,
3
,o
r
4M
e
n
u
.
P
u
s
ht
os
e
t
vertical
parameters
for
input
waveforms
and
to
display
or
remove
the
corresponding
waveform
from
the
display
.
58
MSO4000
and
DPO4000
S
eries
Oscilloscopes
User
Manual
83
85
