Get Acquainted with the Instrument
6. Turn the lower multipurpose knob b,
when activated, to move a cursor or set
a numerical parameter value for a menu
item. P ush Fine to make adjustments
more slowly.

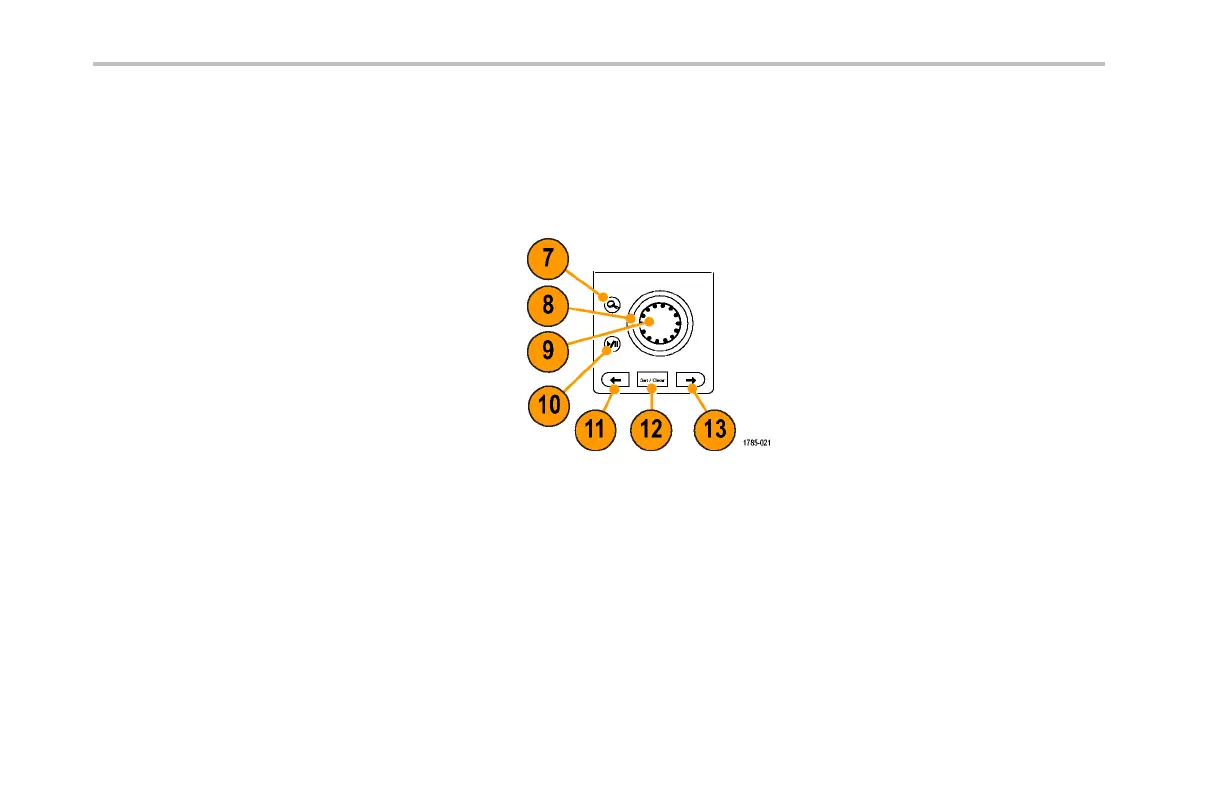

7. Zoom button. P ush to activate zoom
mode.
8. Pan (outer knob). Turn to scroll the zoom
window through the acqu ired waveform.
9. Zoom (inner knob). Turn to control the
zoom factor. Turning it clockwise zooms in
further. Turning it counterclockwise zooms
out.
10. Play -pause button. Push to start or stop
the automatic panning of a waveform.
Control the speed and direction w ith the
pan knob.
11. ← Prev. Push to jump to the previous
waveform mark.
62 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
