Tektronix MSO44 Installation And Safety

Powering the oscilloscope
Use this procedure to connect the oscilloscope to line power and power on and off the oscilloscope. Always connect the
oscilloscope to AC power using the power cord that shipped with the instrument.
Prerequisite: Use the AC power cord that shipped with your oscilloscope.
1. Connect the supplied power cord to the oscilloscope power connector on the back of the instrument.

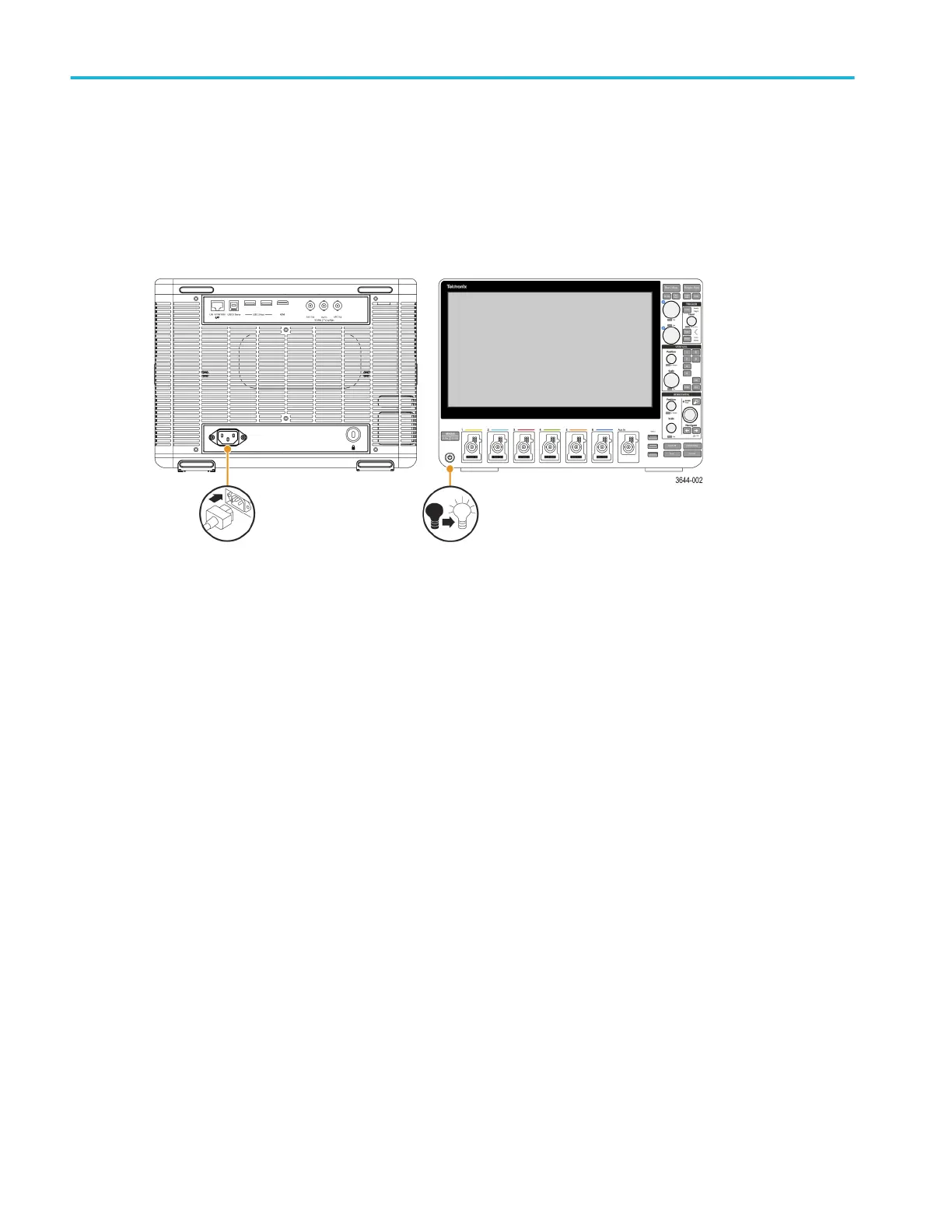

Figure 1: MSO44, MSO46 power cord connector and power standby switch
2. Connect the power cord to an appropriate AC mains source.
Power is supplied to the power supply and some other boards whenever the AC power cord is connected to a live mains
circuit, putting the instrument in standby mode.
3. Push the front panel power button to power the instrument on and off.
The power button color indicates instrument power states:
Unlit – no AC power applied
Yellow – standby mode
Blue – powered on
4. To completely remove power from the instrument, disconnect the power cord.
Installing your instrument
4 MSO44, MSO46 Installation and Safety Manual
ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com

Tektronix MSO44 Specifications

General

Bandwidth	200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels	4
Operating Temperature	0 °C to +50 °C
Sample Rate	6.25 GS/s
Record Length	62.5 Mpoints
Input Impedance	1 MΩ ±1%, 50 Ω ±1%
Vertical Resolution	12 bits
Waveform Capture Rate	Up to 500, 000 wfm/s
Maximum Input Voltage	5 VRMS (50 Ω)
Probe Interface	TekVPI
Digital Channels	16 (optional)
