Change waveform view settings
Use this procedure to change the waveform display mode (Stacked or Overlay), waveform trace interpolation algorithm,
waveform persistence, style and intensity, and graticule style and intensity.

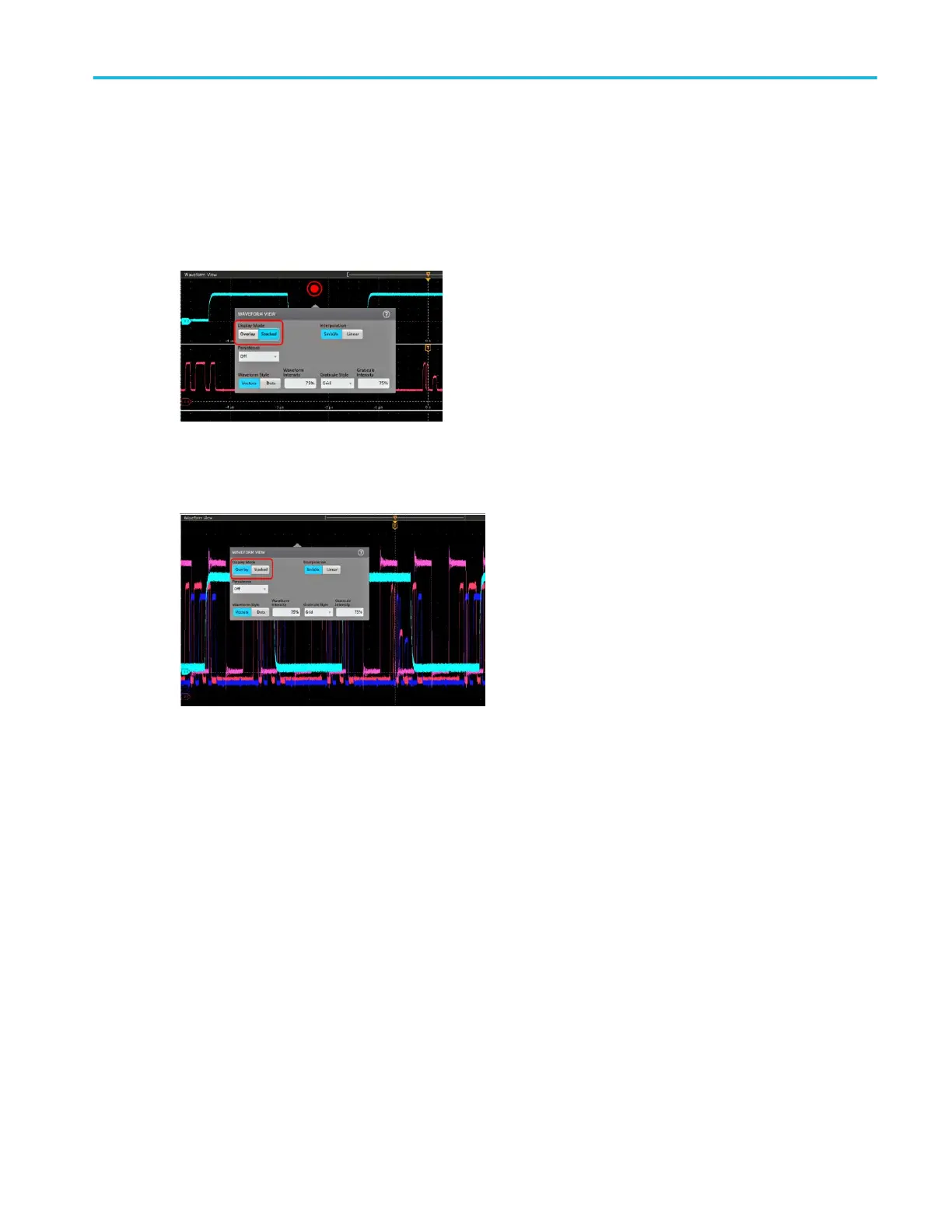

1. Double-tap on an open graticule area to open the Waveform View configuration menu.
2. Tap the buttons in the Display Mode to toggle between Overlay and Stacked modes.
3. Use the other controls to set the waveform interpolation algorithm, waveform point persistence, style, and intensity, and
graticule style and intensity.
4. Tap the Help icon on the menu title to open the Waveform View menu help topic for more information on the waveform view
parameters.
5. Tap outside the menu to close the menu.
Display and configure cursors
Cursors are on-screen lines that you can move to take measurements on specific parts of a waveform or plot, or between two
different waveforms. Cursor readouts show both current position values and the difference (delta) between cursors.
1. Tap the waveform slice (in Stacked mode), or the channel or waveform badge (in Overlay mode) to which you want to add
cursors.
2. Tap the Add New...Cursors button, or push the front-panel Cursors button.
The cursors are added to the display.
Operating basics
MSO44, MSO46 Installation and Safety Manual 49
