Tektronix MSO44 Installation And Safety

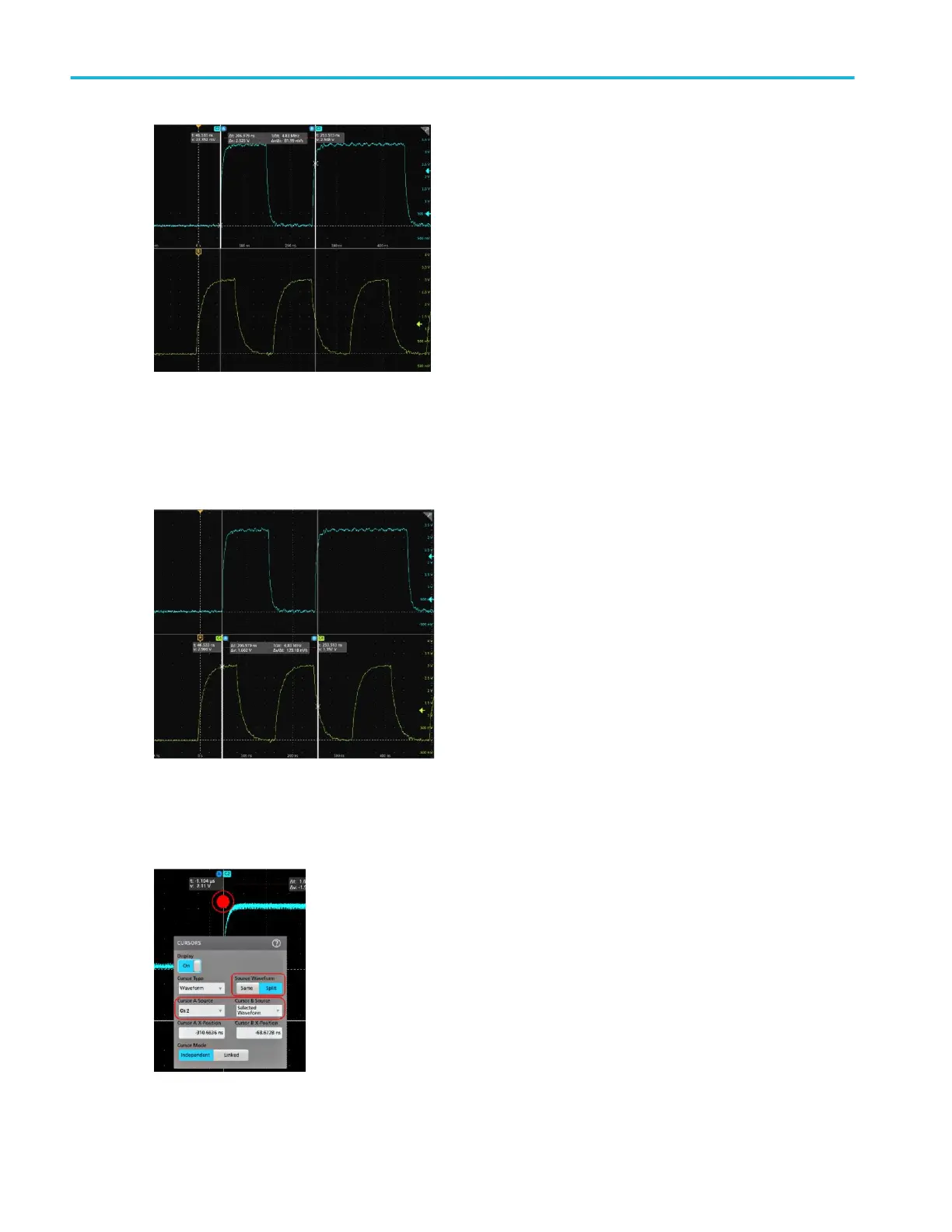

3. Use Multipurpose Knobs A and B to move the cursors, or touch and drag a cursor. Cursors show readouts that show
position and difference measurements between the cursors.
4. To move the cursors to a different channel or waveform, just tap in that waveform graticule.
5. To further configure cursors, double-tap on either cursor line or the cursor readouts to open the Cursors configuration
menu. For example, tap the Cursor type to select the cursors to display, such as Waveform, V Bars, H Bars, and V&H Bars.
6. To split the cursors between two waveforms, tap the Source field and select Split and select the source for each cursor.
Operating basics
50 MSO44, MSO46 Installation and Safety Manual
ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com

Tektronix MSO44 Specifications

General

Bandwidth	200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels	4
Operating Temperature	0 °C to +50 °C
Sample Rate	6.25 GS/s
Record Length	62.5 Mpoints
Input Impedance	1 MΩ ±1%, 50 Ω ±1%
Vertical Resolution	12 bits
Waveform Capture Rate	Up to 500, 000 wfm/s
Maximum Input Voltage	5 VRMS (50 Ω)
Probe Interface	TekVPI
Digital Channels	16 (optional)
