Tektronix MSO44 Installation And Safety

9. FlexChannel probe connectors:
Figure 4: 4 Series MSO
■

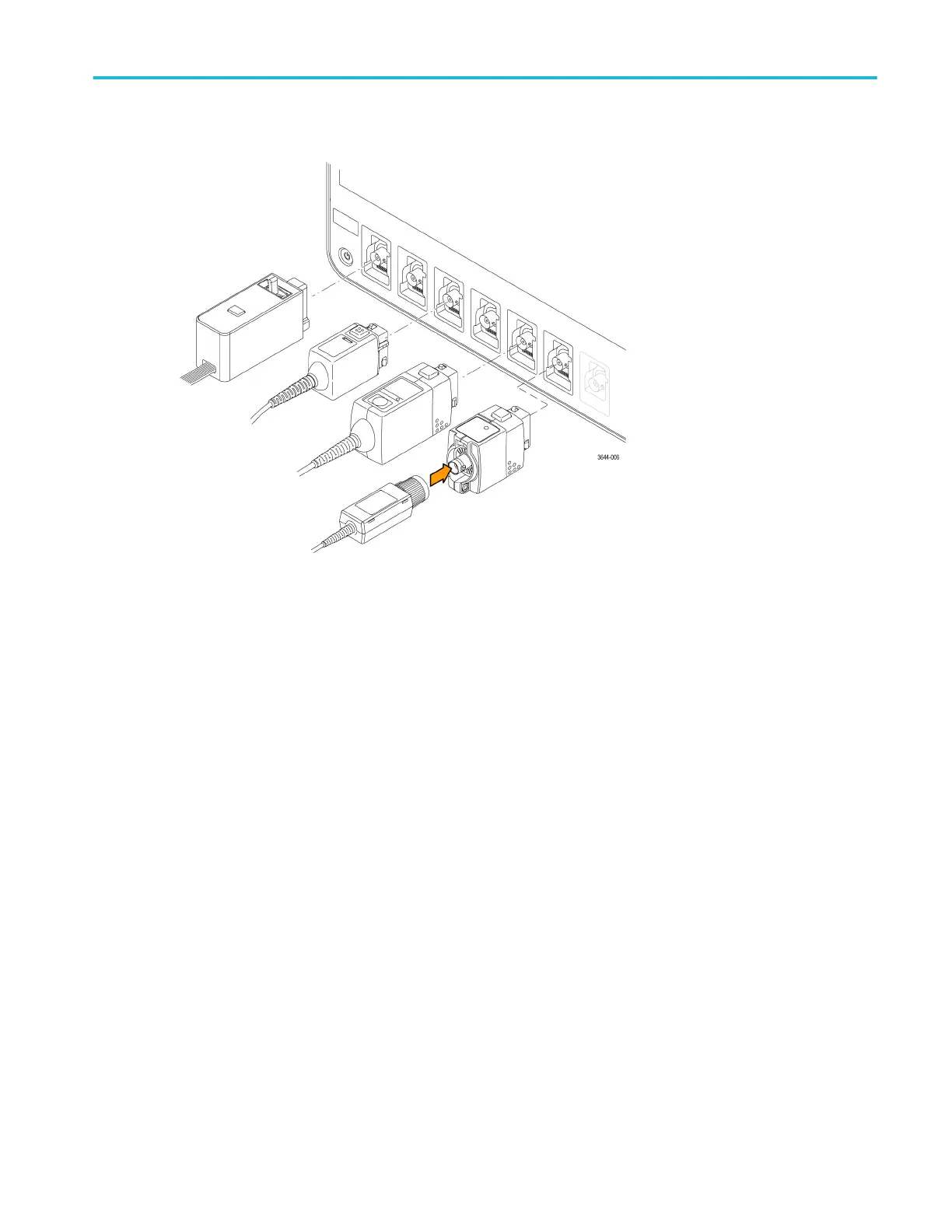

FlexChannel connectors support all TekVPI+ and TekVPI measurement probes, BNC passive probes, the TPL058
FlexChannel Logic Probe, and BNC cables. You connect most probes simply by pushing them into the connector until
the probe seats with a click. See Connecting Probes on page 5.
10. Aux In auxiliary trigger input connector (4 Series, 6 Series only):
A connector to which you can connect an external trigger input signal. Use the Aux In trigger signal with the Edge trigger
mode.
Getting acquainted with your instrument
MSO44, MSO46 Installation and Safety Manual 13
ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com

Tektronix MSO44 Specifications

General

Bandwidth	200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels	4
Operating Temperature	0 °C to +50 °C
Sample Rate	6.25 GS/s
Record Length	62.5 Mpoints
Input Impedance	1 MΩ ±1%, 50 Ω ±1%
Vertical Resolution	12 bits
Waveform Capture Rate	Up to 500, 000 wfm/s
Maximum Input Voltage	5 VRMS (50 Ω)
Probe Interface	TekVPI
Digital Channels	16 (optional)
