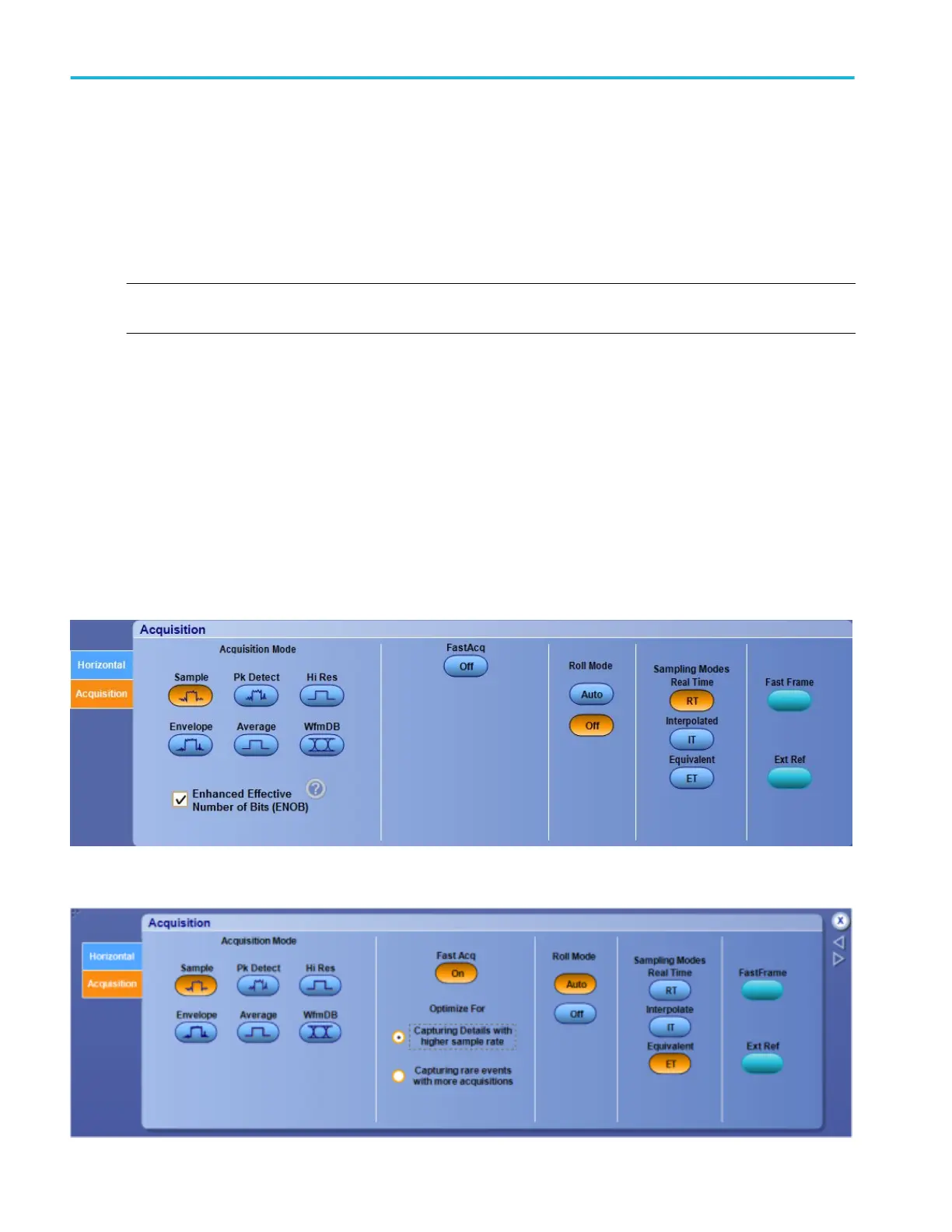

Horizontal-Acquisition control window (Acquisition tab)
From the Horiz /Acq menu, select Horizontal/Acquisition Setup; then open the Acquisition tab.
Overview
Use the Acquisition tab to set the acquisition parameters for all live waveforms. The Acquisition controls are common to all
channels. This means that you cannot acquire in Sample mode on channel 1 while channel 2 acquires in Envelope mode.
NOTE. This document is for more than one instrument. Your instrument, or instrument setup, may not include some of these
features.
To use
For information on the controls, click the buttons.
■
Acquisition Mode
■
ENOB
■
Fast Acq
■
Roll Mode
■
Sampling Modes
■
FastFrame
■
Ext Ref
