Tektronix MSO71254C

Set up a PCIe bus trigger
NOTE. The Bus Trigger Control Window for PCIe Serial option is available only on instruments with option SR-PCIE.
From the Trigger menu, select Bus setup.

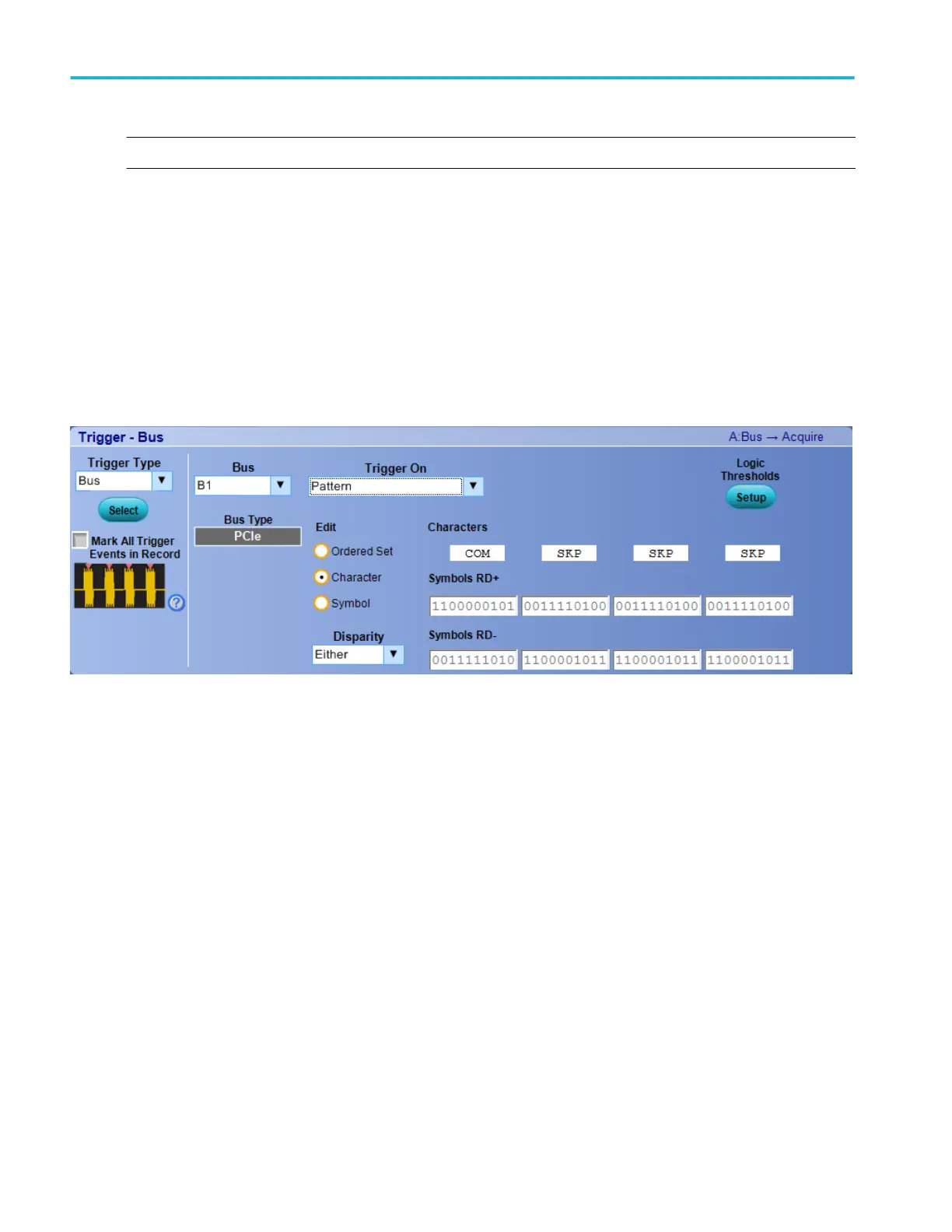

Overview. Use the controls to set up the PCIe Bus parameters.
To use. For information on the controls, click the buttons.
■
Trigger Type
■
Mark All Trigger Events
■
Bus
■
Logic Thresholds
Trigger setups
