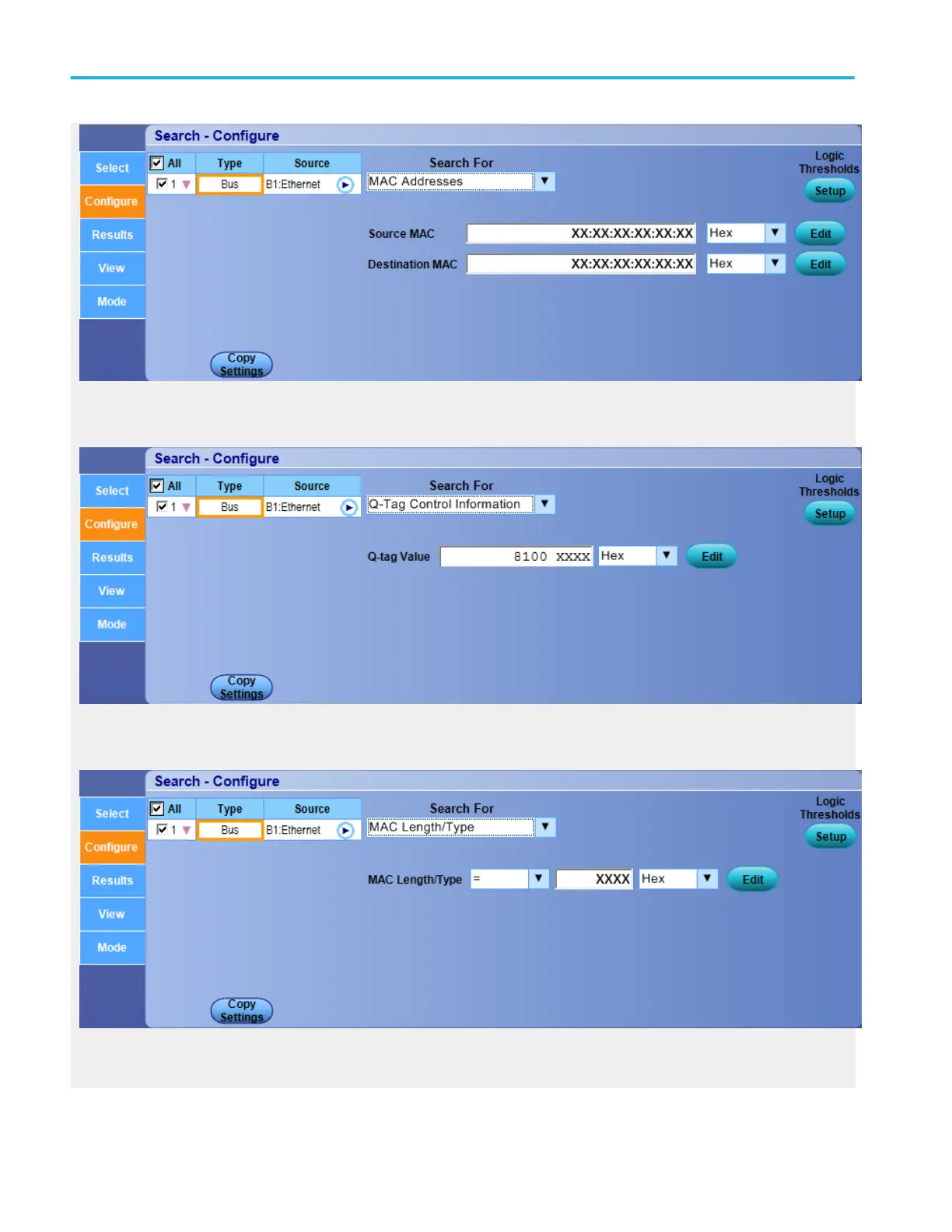

Q-Tag control information

The data type option available in Search For Q-Tag Control Information is Q-Tag Value.

MAC length/type

The data type option available in Search For MAC Length/Type is MAC Length/Type.

IPv4 header

The data type options available in Search For IPv4 Header are IP Protocol, Source Address, and Destination Address.

Analyzing waveforms

356 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
