Display a wavefo
rm

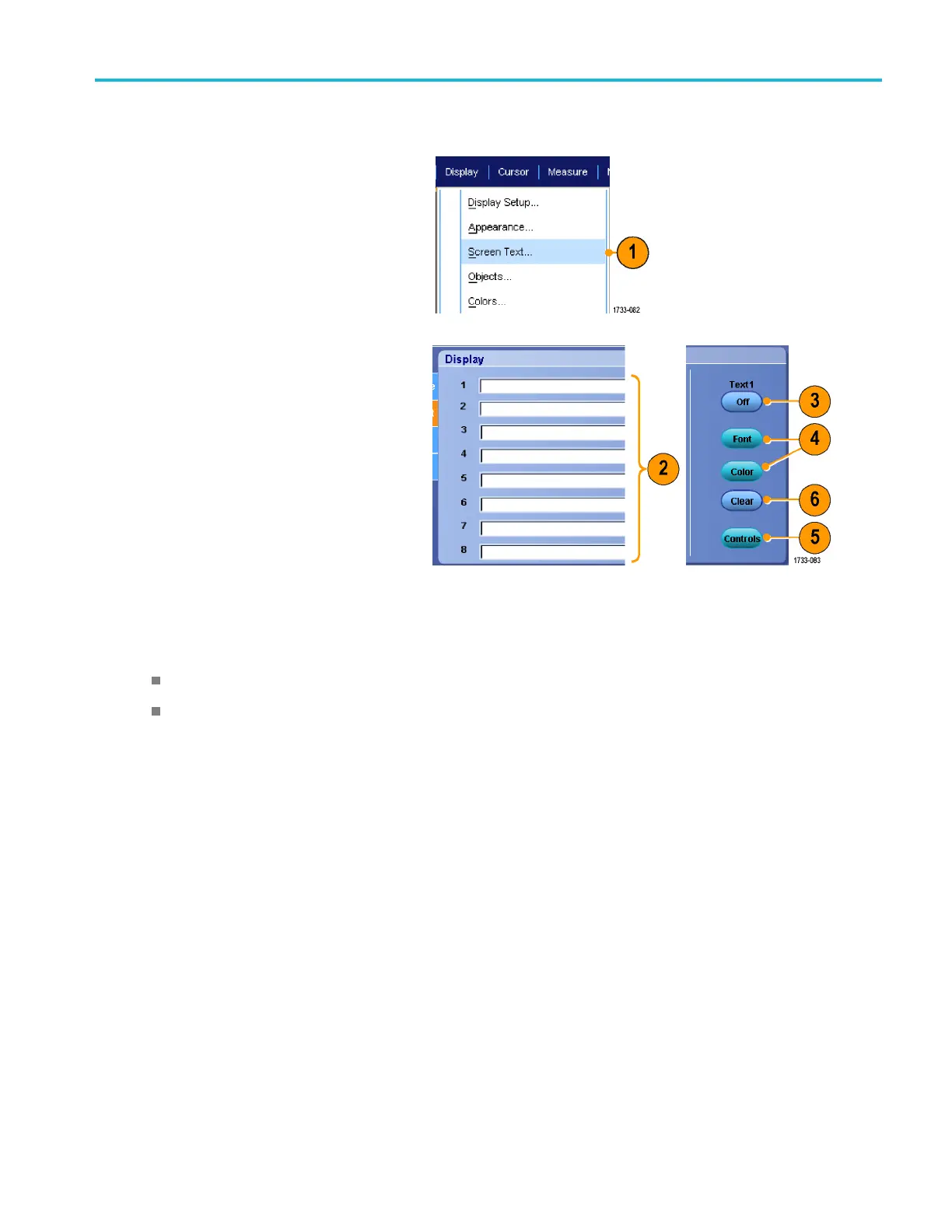

Adding Screen Text
1. Select Displa
y > Screen Text.
2. Enter up to eight independent lines of
text.
3. Click Text Off or On to turn the text
display on and off.
4. Click Font or Color to select the font and
color of the screen text.
5. Click Controls to open the Text
Properties control window for positioning
of the text on the display.
6. Click Clear to erase the entire text of the
selected line.
Quick tips
Click and drag screen text to reposition it on the screen.
You can also label waveforms and buses. (See page 52, Setting up digital channels.) (See page 53, Setting up a bus.)
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 95
