Pinpoint trigge

Choosing a trigger type

Your instrume

nt allows you to modify basic trigger parameters from the front panel or set up more advanced triggers in

the Trigger Setup control window.

NOTE. Some trigger type selections are not available on some instruments.

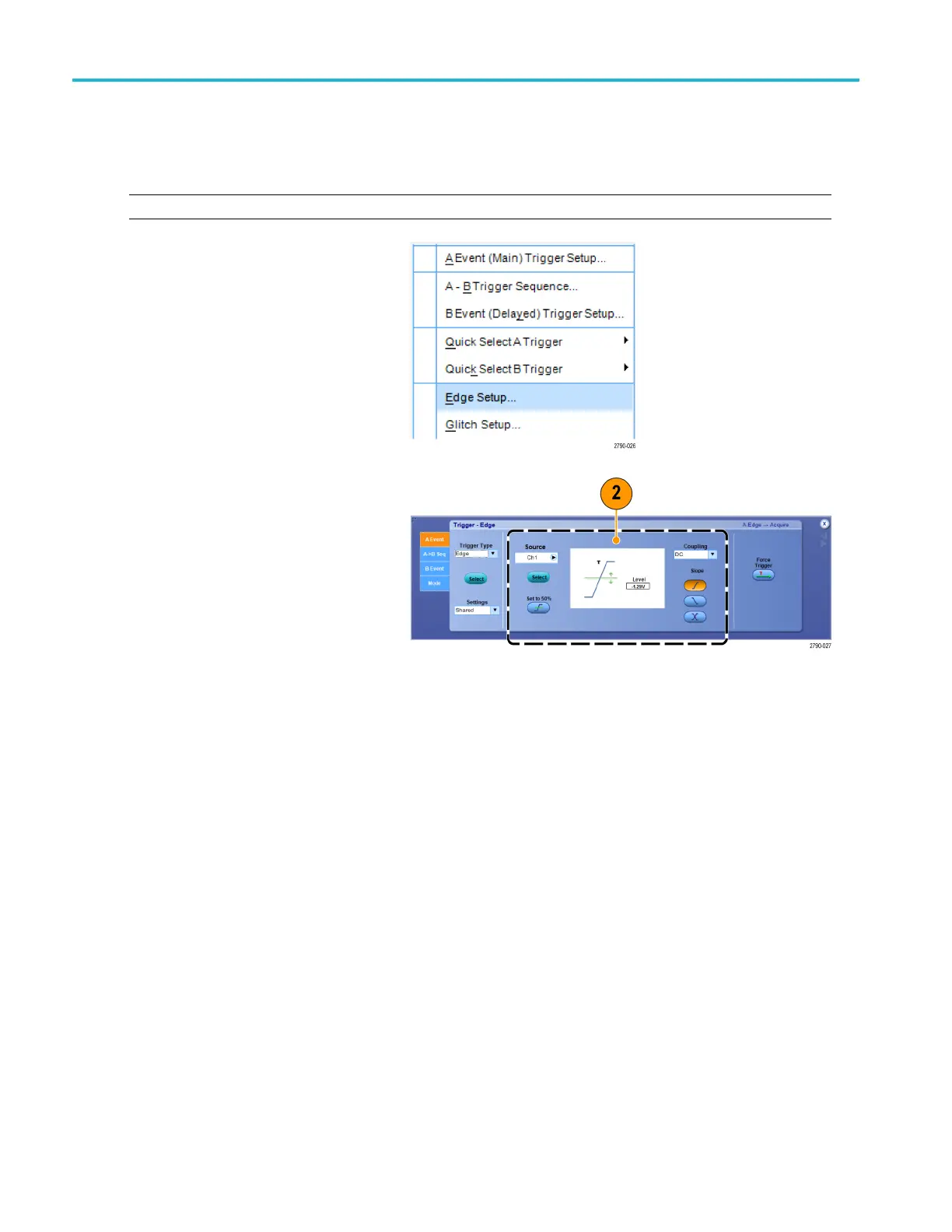

1. Select Trig > Edge Setup.

2. Set the so

urce, slope, coupling, and

mode using the setup menu.

70 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
