Pinpoint trigge

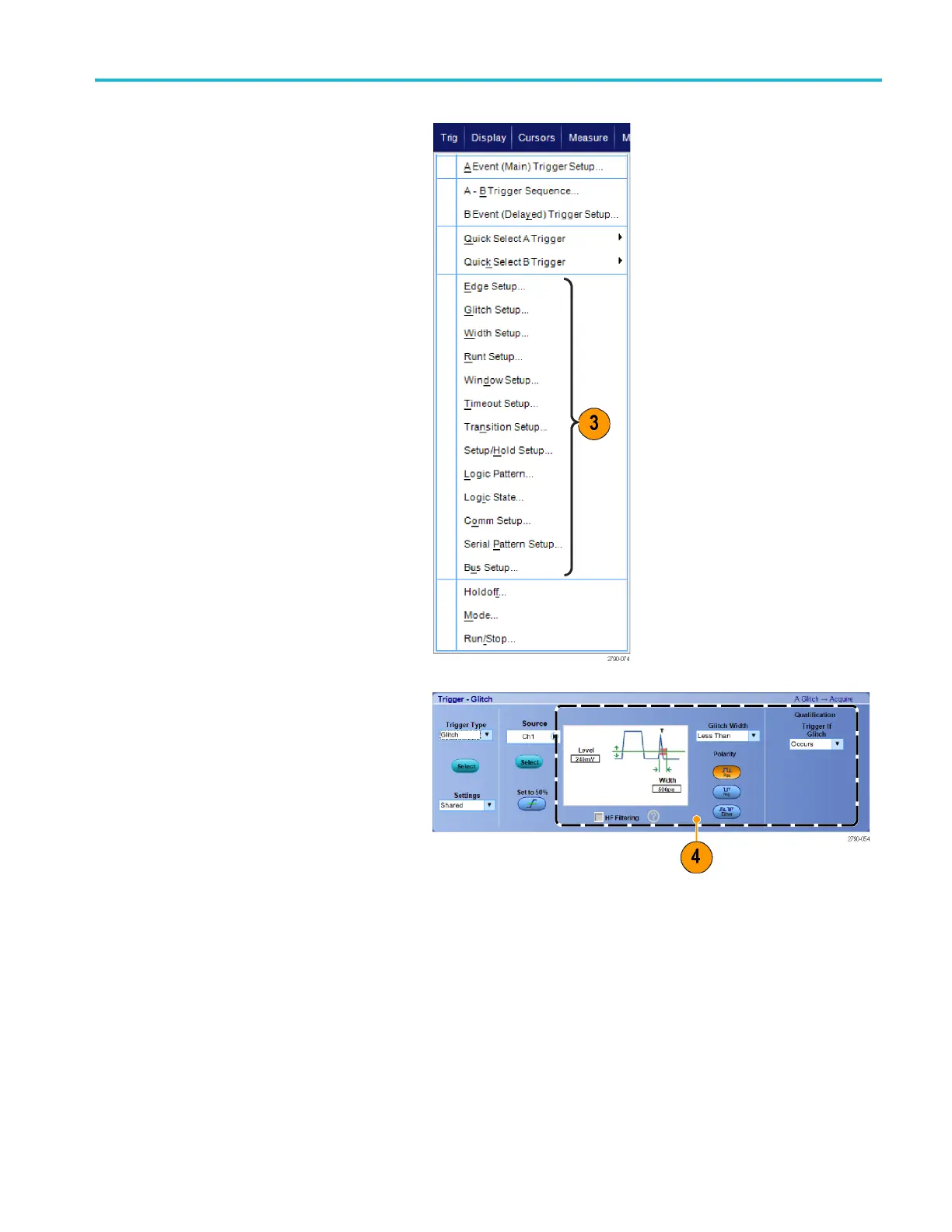

3. To select one of the other trigger types,

select a trigger type directly from the Trig

menu.

4. Complete the trigger setup using the

controls displayed for the trigger type.

The co

ntrols to set u p the trigger vary

depending on the trigger type, instrument

model, and options.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 71

Table of Contents7
