Acquisition

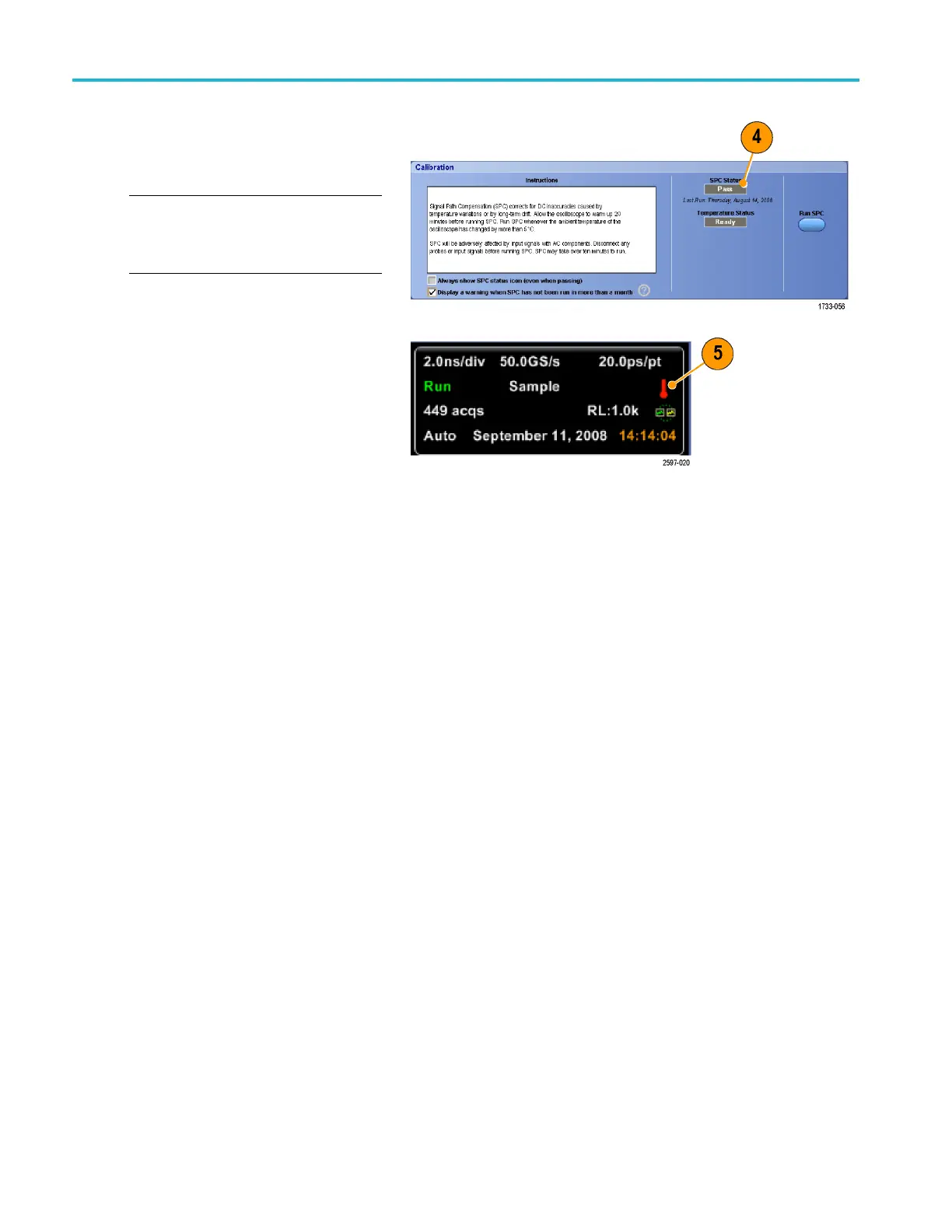

4. If the instrument does not pass,

recalibrate the instrument, or have the

instrument se

rviced by qualiﬁed service

personnel.

NOTE. To always show the SPC status icon

or display a w

arning when SPC has not

been run in more than a month, click the

corresponding check box.

5. If the SPC needed icon is red, perform a

signal path compensation.

32 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
