Acquisition

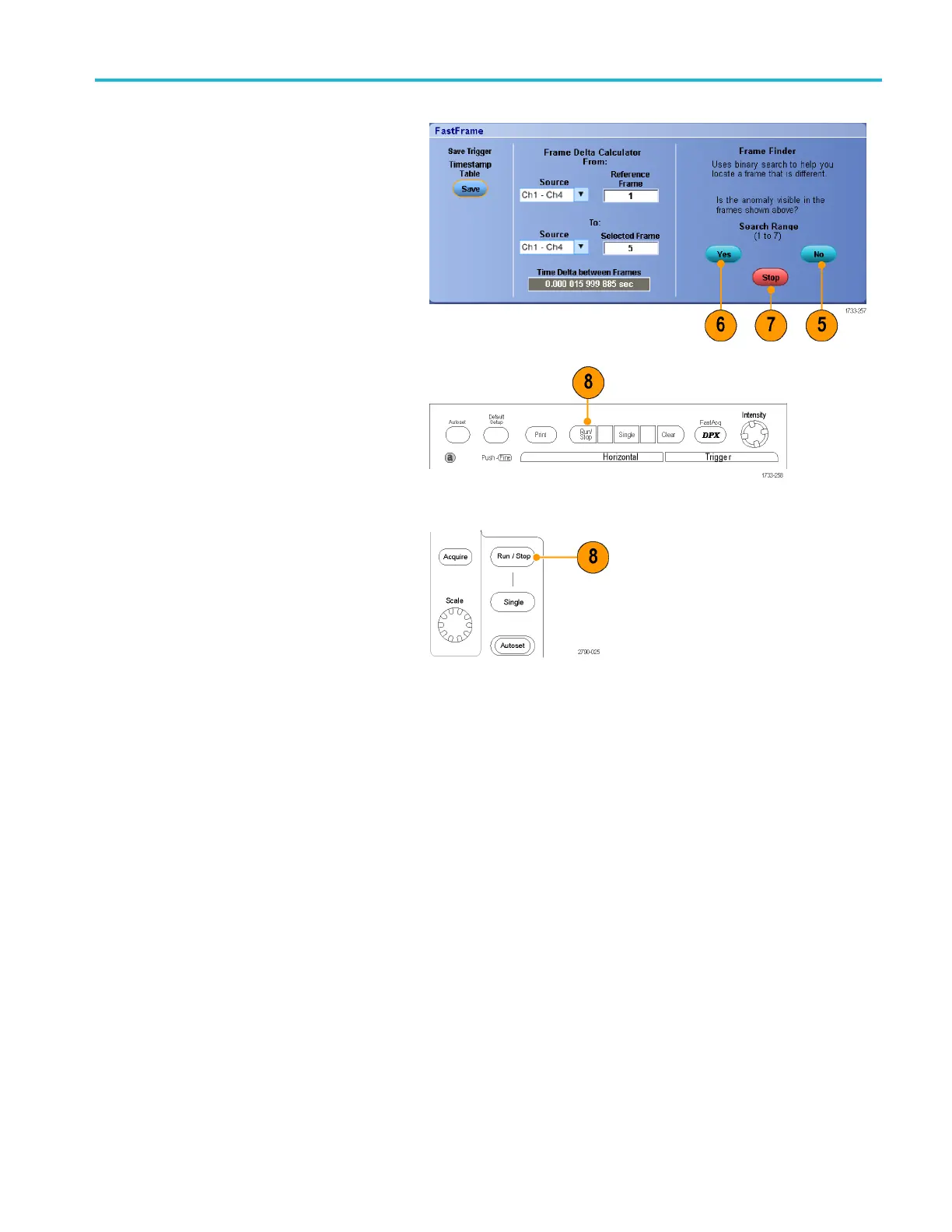

Frame Finder searches for and displays a

different frame.

5. If the anomaly you are looking for is not

in the display

ed frame, push No.Frame

Finder searches for another different

frame.

6. If the anomaly you are looking for is in

the displaye

d frame, push Yes.

7. If you are do

ne searching, push Stop.

8. Push Run/Stop to restart a cquisitions.

MSO\DPO70000DX, MSO/DPO70 000C, and D PO7000C Series

MSO5000B an d DPO5000B Series

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 67
