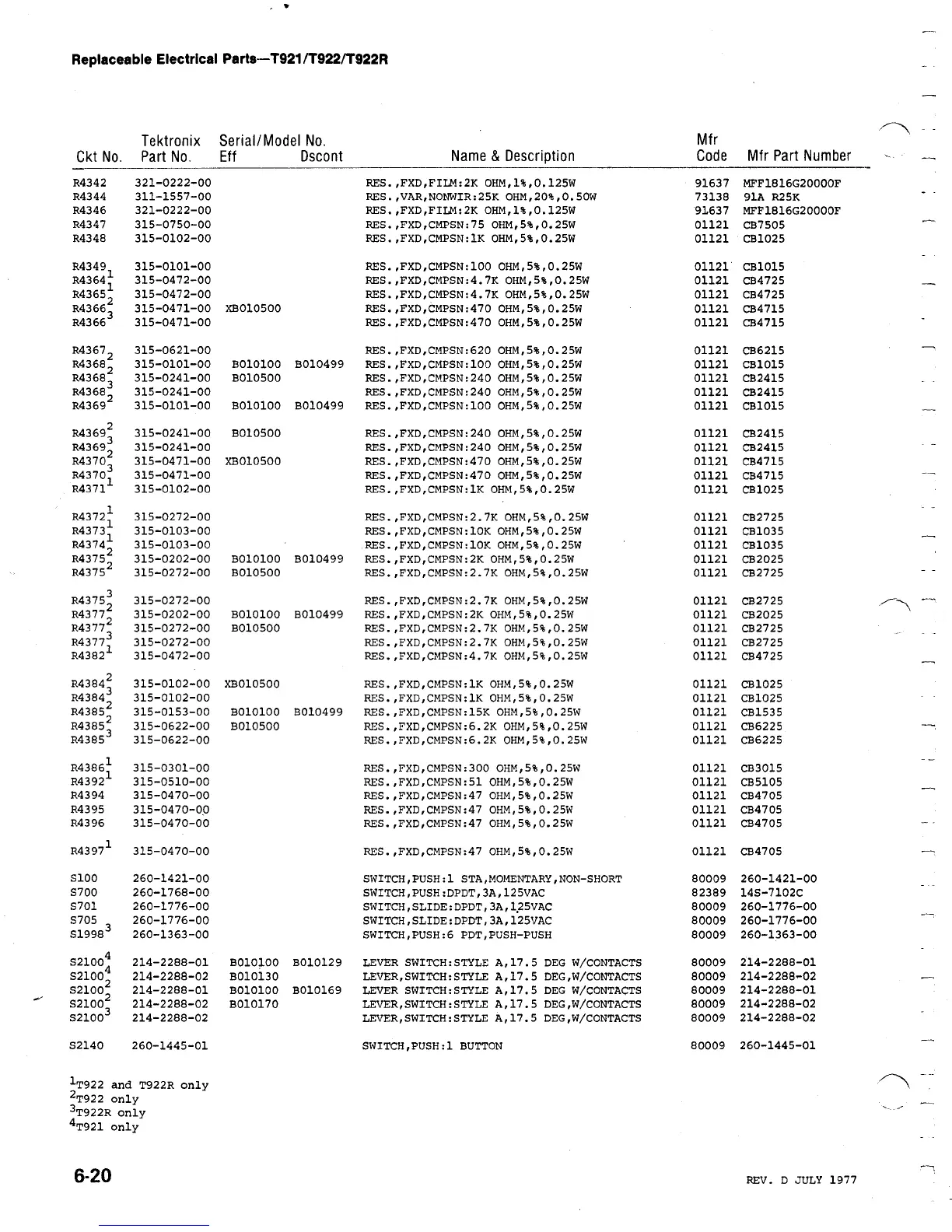

Replaceable Electrical Parts-T921/T922/T922R
1 T922 and T922R only
2 T922 only
3
T922R
only
4 T921only
6- 2 0
REV . D JULY 1977
Ckt No .
Tektronix
Pa rt No .
Serial/Model
Eff
No .
Dscont
Name & Description
Mfr
Code Mfr Part Number
84342 321-0222-00 RES .,FXD,FILM :2K OHM,1%,0 .125W 91637 MFF1816G20000F
84344 311-1557-00 RES .,VAR,NONWIR :25K OHM,20%,0 .50W
73138 91A R25K
R4346 321-0222-00 RES .,FXD,FILM :2K OHM,1%,0 .125W
91637 MFF1816G20000F
84347 315-0750-00 RES .,FXD,CMPSN :75 OHM,5%,0 .25W
01121 CB7505
84348 315-0102-00 RES .,FXD,CMPSN :IK OHM,5%,0 .25W
01121 CB1025
84349 315-0101-00 RES .,FXD,CMPSN :100 OHM,5%,0 .25W
01121 CB1015
R43641 315-0472-00 RES .,FXD,CMPSN :4 .7K OHM,5%,0 .25W 01121 CB4725
84365 2 315-0472-00 RES .,FXD,CMPSN :4 .7K OHM,5%,0 .25W
01121 CB4725
84366 3 315-0471-00XBO10500 RES .,FXD,CMPSN :470 OHM,5%,0 .25W
01121 CB4715
84366 315-0471-00 RES .,FXD,CMPSN :470 OHM,5%,0 .25W
01121 CB4715
84367 2 315-0621-00 RES .,FXD,CMPSN :620 OHM,5%,0 .25W
01121 CB6215
84368 2 315-0101-00 B010100B010499 RES .,FXD,CMPSN :100 OHM,5%,0 .25W 01121 CB1015
84368 315-0241-00 B010500 RES .,FXD,CMPSN :240 OHM,5%,0 .25W 01121 CB2415
R43682 315-0241-00 RES .,FXD,CMPSN :240 OHM,5%,0 .25W 01121 C132415
R4369 315-0101-00 B010100B010499 RES .,FXD,CMPSN :100 OHM,5%,0 .25W 01121 CB1015
843693 315-0241-00 B010500 RES .,FXD,CMPSN :240 OHM,5%,0 .25W 01121 CB2415
R4369 2 315-0241-00 RES .,FXD,CMPSN :240 OHM,5%,0 .25W 01121 CB2415
84370 315-0471-00 XBO10500 RES .,FXD,CMPSN :470 OHM,5%,0 .25W 01121 CB4715
R4370 3 315-0471-00 RES .,FXD,CMPSN :470 OHM,5%,0 .25W 01121 CB4715
84371
315-0102-00 RES .,FXD,CMPSN :IK OHM,5%,0 .25W 01121 CB1025
84372 1
315-0272-00 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W 01121 CB2725
84373 1 315-0103-00 RES .,FXD,CMPSN :10K OHM,5%,0 .25W 01121 CB1035
84374 1
315-0103-00 RES .,FXD,CMPSN :10K OHM,5%,0 .25W 01121 CB1035
84375
2 315-0202-00 B010100B010499 RES .,FXD,CMPSN :2K OHM,5%,0 .25W 01121 CB2025
R4375 2 315-0272-00 B010500 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W
01121 CB2725
R43752 315-0272-00 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W
01121 CB2725
84377 315-0202-00 B010100B010499 RES .,FXD,CMPSN :2K OHM,5%,0 .25W
01121 CB2025
84377 2 315-0272-00 B010500 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W 01121 CB2725
84377 3 315-0272-00 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W 01121 CB2725
84382 1 315-0472-00 RES .,FXD,CMPSN :4 .7K OHM,5%,0 .25W 01121 CB4725
R4384 2 315-0102-00 XBO10500 RES .,FXD,CMPSN :IK OHM,5%,0 .25W 01121 CB1025
84384 3 315-0102-00 RES .,FXD,CMPSN :lK OHM,5%,0 .25W 01121 CB1025
R4385 2 315-0153-00 B010100B010499 RES .,FXD,CMPSN :15K OHM,5%,0 .25W 01121 CB1535
R4385 2 315-0622-00 B010500 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
R4385 3 315-0622-00 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
84386 1 315-0301-00 RES .,FXD,CMPSN :300 OHM,5%,0 .25W 01121 CB3015
84392 1 315-0510-00 RES .,FXD,CMPSN :51 OHM,5%,0 .25W 01121 CB5105
84394 315-0470-00
RES .,FXD,CMPSN :47 OHM,5%,0 .25W 01121 CB4705
84395 315-0470-00 RES .,FXD,CMPSN :47 OHM,5%,0 .25W 01121 CB4705
R4396 315-0470-00
RES
.,FXD,CMPSN
:47
OHM,5%,0
.25W 01121 CB4705
84397 1 315-0470-00
RES .,FXD,CMPSN :47
OHM,5%,0
.25W 01121 CB4705
5100 260-1421-00 SWITCH,PUSH :1 STA,MOMENTARY,NON-SHORT 80009 260-1421-00
5700 260-1768-00 SWITCH,PUSH :DPDT,3A,125VAC 82389145-7102C
5701 260-1776-00 SWITCH,SLIDE:DPDT,3A,125VAC 80009 260-1776-00
5705 260-1776-00 SWITCH,SLIDE:DPDT,3A,125VAC 80009 260-1776-00
S1998 3 260-1363-00 SWITCH,PUSH :6 PDT,PUSH-PUSH 80009 260-1363-00
52100 4 214-2288-01 B010100B010129 LEVER SWITCH :STYLE A,17 .5 DEG W/CONTACTS 80009 214-2288-01
52100 4 214-2288-02 B010130 LEVER,SWITCH :STYLE A,17 .5 DEG,W/CONTACTS 80009 214-2288-02
52100 2 214-2288-01 B010100B010169 LEVER SWITCH :STYLE A,17 .5 DEG W/CONTACTS 80009 214-2288-01
S2100 2 214-2288-02 B010170 LEVER,SWITCH :STYLE A,17 .5 DEG,W/CONTACTS 80009 214-2288-02
52100 3 214-2288-02 LEVER,SWITCH :STYLE A,17 .5 DEG,W/CONTACTS 80009 214-2288-02
52140
260-1445-01 SWITCH,PUSH :l BUTTON 80009
260-1445-01
