Tektronix T921 User Manual

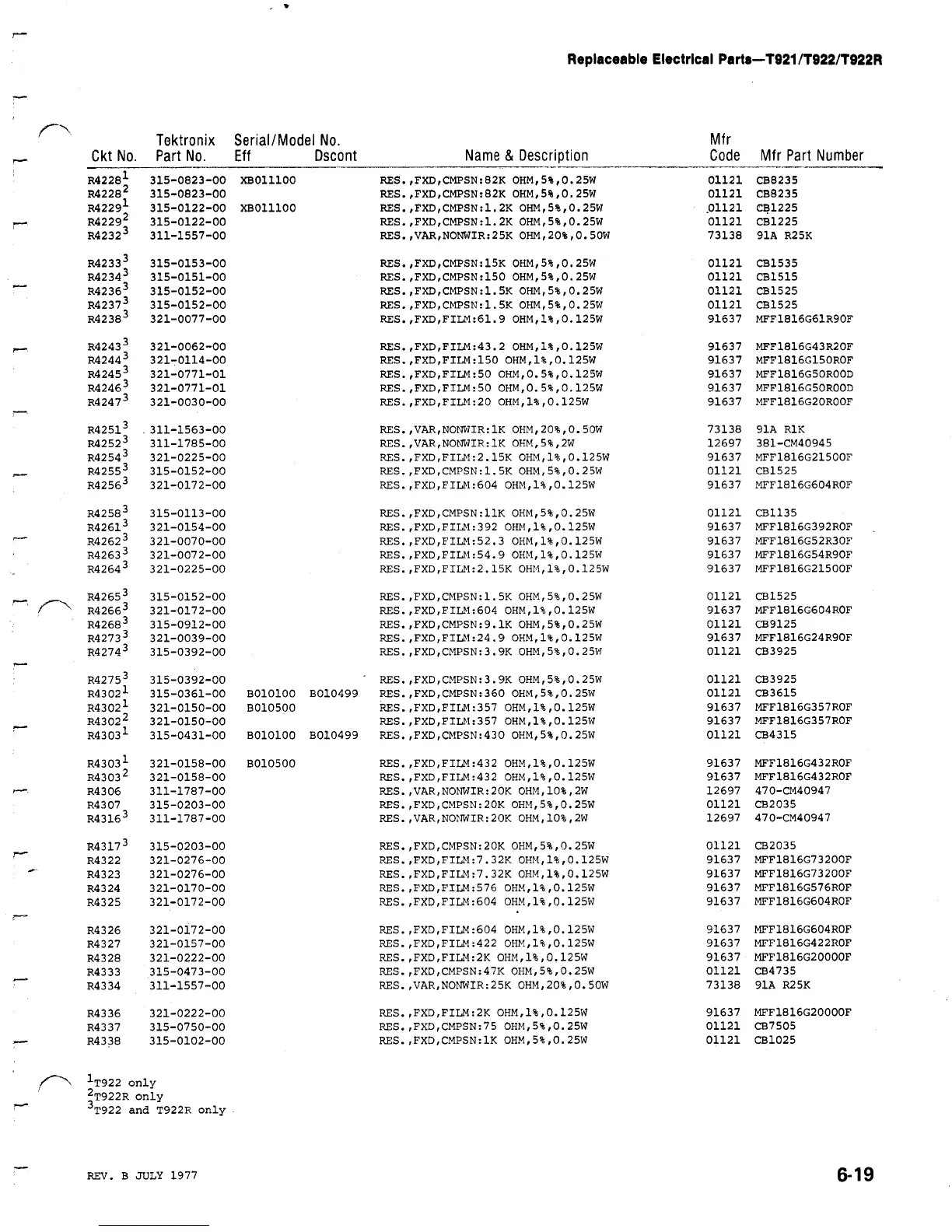

Replaceable Electrical Parts-T921/T922/T922101
1 T922 only
2 T922R only
3 T922 and T922R only .
REV . B JULY1977
6-
1 9
Ckt No .
Tektronix
Part N o
.
Serial/Model
Eff
No .
Dsc ont Na me& Descri ption
Mfr
Code Mf r Par t Nu mber
84228 1 315-0823-00 XBO11100 RES .,FXD,CMPSN :82K OHM,5%,0 .25W 01121 CB8235
84228 2 315-0823-00 RES .,FXD,CMPSN :82K OHM,54,0 .25W 01121 CB8235
84229 1 315-0122-00 XBO11100 RES .,FXD,CMPSN :I .2K OHM,5%,0 .25W .01121 CB1225
R4229 2 315-0122-00 RES .,FXD,CMPSN :I .2K OHM,5%,0 .25W 01121 CB1225
84232 3 311-1557-00
RES .,VAR,NONWIR :25K OHM,20%,0 .50W 73138 91A R25K
84233 3 315-0153-00 RES .,FXD,CMPSN :15K OHM,5%,0 .25W 01121 CB1535
84234 3 315-0151-00 RES .,FXD,CMPSN :150 OHM,5%,0 .25W 01121 CB1515
84236 3 315-0152-00 RES .,FXD,CMPSN :1 .5K OHM,5%,0 .25W 01121 CB1525
R4237 3 315-0152-00 RES .,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
R4238 3 321-0077-00 RES .,FXD,FILM :61 .9 OHM,1%,0 .125W 91637 MFF1816GGIR90F
R4243 3 321-0062-00 RES .,FXD,FILM :43 .2 OHM,1%,0 .125W 91637 MFF1816G43R20F
84244 3 321-0114-00 RES .,FXD,FILM :150 OHM,1%,0 .125W 91637 MFF1816G150ROF
84245 3 321-0771-01 RES .,FXD,FILM
:50 OHM,0 .5%,0
.125w
91637 MFF1816G50ROOD
84246 3 321-0771-01 RES .,FXD,FILM :50 OHM,0 .5%,0.125W 91637 MFF1816G50ROOD
84247 3 321-0030-00
RES .,FXD,FILM :20 OHM,1%,0 .125W 91637 MFF1816G20ROOF
84251
3
311-1563-00 RES .,VAR,NONWIR :IK OHM,20%,0 .50W 73138 91A RlK
84252 3 311-1785-00 RES .,VAR,NONWIR :IK OHM,5%,2W 12697 381-CM40945
84254 3 321-0225-00 RES .,FXD,FILM :2 .15K OHM,1%,0 .125W 91637 MFF1816G21500F
84255 3 315-0152-00 RES .,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
84256 3 321-0172-00 RES .,FXD,FILM :604 OHM,1%,0 .125w 91637 MFF1816G604ROF
84258 3 315-0113-00 RES .,FXD,CMPSN :l1K OHM,5%,0 .25W 01121 CB1135
84261 3 321-0154-00 RES .,FXD,FILM :392 OHM,1%,0 .125W 91637 MFF1816G392ROF
84262 3 321-0070-00 RES .,FXD,FILM :52 .3 OHM,1%,0 .125W 91637 MFF1816G52R30F
84263 3 321-0072-00 RES .,FXD,FILM :54 .9 OHM,1%,0 .125W 91637 MFF1816G54R90F
84264 3 321-0225-00 RES .,FXD,FILM :2 .15K OHM,1%,0 .125W 91637 MFF1816G21500F
84265 3 315-0152-00
RES .,FXD,CMPSN
:1 .5K OHM,5%,0 .25W 01121 CB1525
R4266 3 321-0172-00 RES .,FXD,FILM :604
OHM,1%,0 .125W 91637 MFF1816G604ROF
84268 3 315-0912-00
RES
.,FXD,CMPSN :9 .1K OHM,5%,0
.25W
01121 CB9125
84273 3 321-0039-00
RES .,FXD,FILM :24 .9 OHM,1%,0 .125W 91637 MFF1816G24R90F
84274 3
315-0392-00 RES .,FXD,CMPSN :3 .9K OHM,5%,0 .25W 01121 CB3925
84275
3 315-0392-00 ' RES .,FXD,CMPSN :3 .9K OHM,5%,0 .25W 01121 CB3925
R4302 1 315-0361-00 B010100B010499 RES .,FXD,CMPSN :360 OHM,5%,0 .25w 01121 CB3615
R4302 1 321-0150-00 B010500 RES .,FXD,FILM :357 OHM,1%,0 .125W 91637 MFF1816G357ROF
84302 2 321-0150-00 RES .,FXD,FILM :357 OHM,1%,0 .125W 91637
MFF1816G357ROF
R4303 1 315-0431-00 B010100B010499 RES .,FXD,CMPSN :430 OHM,5%,0 .25W 01121 CB4315
R4303 1 321-0158-00 B010500 RES .,FXD,FILM :432 OHM,1%,0 .125W 91637 MFF1816G432ROF
84303 2 321-0158-00 RES .,FXD,FILM :432 OHM,1%,0 .125W 91637
MFF1816G432ROF
84306 311-1787-00 RES .,VAR,NONWIR :20K OHM,10%,2W 12697 470-CM40947
84307 315-0203-00 RES .,FXD,CMPSN
:20K OHM,5%,0 .25W 01121 CB2035
84316 3 311-1787-00
RES .,VAR,NONWIR :20K OHM,10%,2W 12697 470-CM40947
R4317 3 315-0203-00
RES .,FXD,CMPSN :20K OHM,5%,0 .25W 01121 CB2035
84322 321-0276-00 RES .,FXD,FILM :7 .32K OHM,l%,0 .125w 91637 MFF1816G73200F
84323
321-0276-00 RES .,FXD,FILM :7 .32K OHM,1%,0 .125W 91637 MFF1816G73200F
R4324 321-0170-00 RES .,FXD,FILM :576 OHM,1%,0 .125W 91637 MFF1816G576ROF
R4325 321-0172-00 RES .,FXD,FILM :604 OHM,1%,0 .125W 91637 MFF1816G604ROF
84326 321-0172-00 RES .,FXD,FILM :604 OHM,1%,0 .125W 91637 MFF1816G604ROF
84327 321-0157-00 RES .,FXD,FILM :422 OHM,1%,0
.125W 91637 MFF1816G422ROF
84328 321-0222-00 RES .,FXD,FILM :2K OHM,1%,0 .125W 91637 MFF1816G20000F
84333 315-0473-00 RES .,FXD,CMPSN
:47K OHM,5%,0 .25W 01121 CB4735
R4334 311-1557-00 RES .,VAR,NONWIR :25K OHM,20%,O .50W 73138 91A
R25K
R4336 321-0222-00
RES .,FXD,FILM :2K OHM,1%,0 .125W 91637 MFF1816G20000F
84337 315-0750-00
RES .,FXD,CMPSN :75 OHM,5%,0 .25W 01121 CB7505
84338
315-0102-00 RES .,FXD,CMPSN :IK OHM,5%,0 .25W 01121 CB1025
