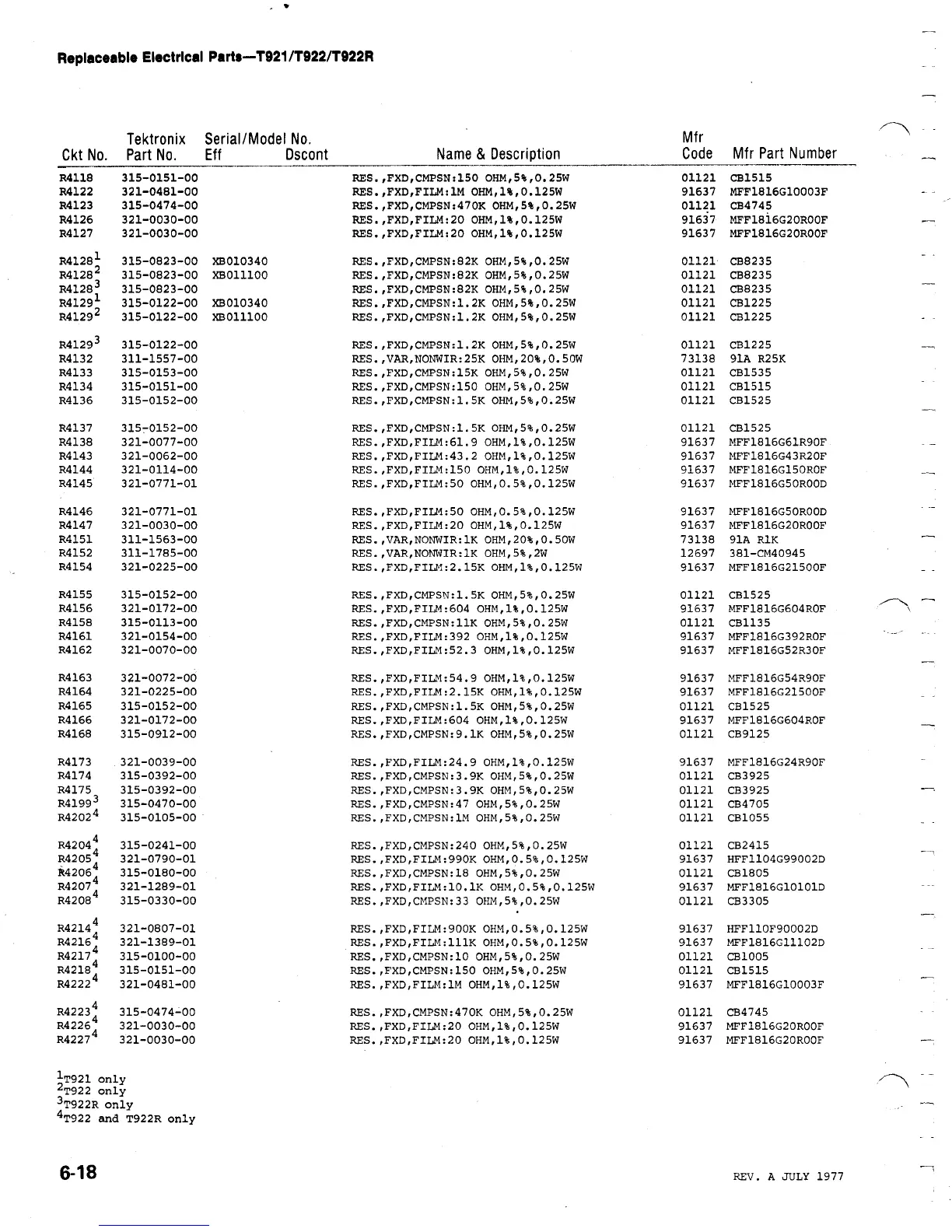

Replaceable Electrical
Parts-T921 /T922/T922R
Tektronix

Serial/Model No .
Ckt No .

Part No .

E ff

Dscont

Nam e & De scription
Mfr
Code

Mfr P art Nu mber
1 T921only
2 T922 only
3 T922R
only
4
T922 and T922R only
6- 1 8
REV . A JULY1977
84118 315-0151-00 RES .,FXD,CMPSN
:150
OHM,5%,0 .25W 01121 CB1515
84122 321-0481-00
RES
.,FXD,FILM :IM OHM,1%,0 .125W 91637 MFF1816Gl0003F
84123 315-0474-00 RES .,FXD,CMPSN :470K OHM,5%,0 .25W 01121 CB4745
84126 321-0030-00 RES .,FXD,FILM :20 OHM,1%,0 .125W 91637 MFF1816G20ROOF
84127 321-0030-00 RES .,FXD,FILM :20 OHM,1%,0 .125W 91637 MFF1816G20ROOF
84128 1 315-0823-00 XBO10340 RES .,FXD,CMPSN :82K OHM,5%,0 .25W 01121 CB8235
R4128 2 315-0823-00 XE011100 RES .,FXD,CMPSN :82K OHM,5%,0 .25W 01121 CB8235
84128 3 315-0823-00 RES .,FXD,CMPSN :82K OHM,5%,0 .25W 01121 CB8235
84129 1 315-0122-00 XBO10340 RES .,FXD,CMPSN :I .2K OHM,5%,0 .25W 01121 CB1225
84129 2 315-0122-00 XBO11100 RES .,FXD,CMPSN :I .2K OHM,5%,0 .25W 01121 CB1225
84129 3 315-0122-00 RES .,FXD,CMPSN :I .2K OHMS%,0 .25W 01121 CB1225
84132 311-1557-00 RES .,VAR,NONWIR :25K OHM,20%,0 .50W 73138 91A R25K
84133 315-0153-00 RES .,FXD,CMPSN :15K OHM,5%,0 .25W 01121 CB1535
84134 315-0151-00 RES .,FXD,CMPSN :150 OHM,5%,0 .25W 01121 CB1515
84136 315-0152-00 RES .,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
R4137 315-0152-00 RES .,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
84138 321-0077-00 RES .,FXD,FILM :61 .9 OHM,1%,0 .125W 91637 MFF1816G61R90F
84143
321-0062-00
RES .,FXD,FILM :43 .2 OHM,1%,0 .125W 91637 MFF1816G43R20F
R4144 321-0114-00 RES .,FXD,FILM :150 OHM,1%,0 .125W 91637 MFF1816G150ROF
84145 321-0771-01 RES .,FXD,FILM :50 OHM,0 .5%,0.125W 91637 MFF1816G50ROOD
84146 321-0771-01 RES .,FXD,FILM :50 OHM,0 .5%,0.125W 91637 MFF1816G50ROOD
84147 321-0030-00 RES .,FXD,FILM :20 OHM,1%,0 .125W 91637 MFF1816G20ROOF
84151 311-1563-00 RES .,VAR,NONWIR :IK OHM,20%,0 .50W 73138 91ARlK
84152 311-1785-00 RES .,VAR,NONWIR :IK OHM,5%,2W 12697 381-CM40945
84154 321-0225-00 RES .,FXD,FILM :2 .15K OHM,1%,0 .125W 91637 MFF1816G21500F
84155
315-0152-00 RES .,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
R4156 321-0172-00 RES .,FXD,FILM
:604 OHM,1%,0 .125w 91637 MFF1816G604ROF
R4158
315-0113-00 RES .,FXD,CMPSN :11K OHM,5%,0 .25W 01121 CB1135
84161 321-0154-00 RES .,FXD,FILM :392 OHM,1%,0 .125W 91637 MFF1816G392ROF
84162 321-0070-00 RES .,FXD,FILM :52 .3 OHM,1%,0 .125W 91637 MFF1816G52R30F
R4163 321-0072-00 RES .,FXD,FILM :54 .9 OHM,1%,0 .125w 91637 MFF1816G54R90F
84164 321-0225-00 RES .,FXD,FILM :2 .15K OHM,1%,0 .125W 91637 MFF1816G21500F
84165 315-0152-00 RES .,FXD,CMPSN :I .5K OHM,5%,0 .25W
01121
CB1525
84166 321-0172-00 RES .,FXD,FILM :604 OHM,1%,0 .125W 91637 MFF1816G604ROF
84168 315-0912-00 RES .,FXD,CMPSN :9 .1K OHM,5%,0 .25W 01121 CB9125
84173 321-0039-00 RES .,FXD,FILM :24 .9 OHM,1%,0 .125W 91637 MFF1816G24R90F
84174 315-0392-00 RES .,FXD,CMPSN :3 .9K OHM,5%,0 .25W 01121 CB3925
R4175 315-0392-00 RES .,FXD,CMPSN :3 .9K OHM,5%,0 .25W 01121 C133925
84199 3 315-0470-00 RES .,FXD,CMPSN :47 OHM,5%,0 .25W 01121 CB4705
R4202 4 315-0105-00 RES .,FXD,CMPSN :IM OHM,5%,0 .25W 01121 CB1055
84204 4 315-0241-00 RES .,FXD,CMPSN :240 OHM,5%,0 .25W 01121 CB2415
84205 4 321-0790-01
RES .,FXD,FILM :990K
OHM,0
.5%,0
.125W 91637 HFF1104G99002D
14206 4 315-0180-00
RES .,FXD,CMPSN :18
OHM,5%,0 .25W
01121 CB1805
R4207 4 321-1289-01 RES .,FXD,FILM :10.1K OHM,0 .5%,0
.125W
91637 MFF1816G10101D
R4208 4 315-0330-00
RES .,FXD,CMPSN :33 OHM,5%,0 .25w 01121 CB3305
84214 4 321-0807-01 RES .,FXD,FILM :900K OHM,0 .5%,0.125W 91637 HFF11OF90002D
84216 4 321-1389-01 RES .,FXD,FILM :111K OHM,0 .5%,0.125W 91637 MFF1816G11102D
R4217 4 315-0100-00 RES .,FXD,CMPSN :10 OHM,5%,0 .25W 01121 CB1005
84218 4 315-0151-00 RES .,FXD,CMPSN :150 OHM,5%,0 .25W 01121 CB1515
84222 4 321-0481-00 RES .,FXD,FILM :IM OHM,1%,0 .125w 91637 MFF1816G10003F
84223 4 315-0474-00 RES .,FXD,CMPSN :470K OHM,5%,0 .25W 01121 CB4745
84226 4 321-0030-00 RES .,FXD,FILM :20 OHM,1%,0 .125W 91637 MFF1816G20ROOF
84227 4 321-0030-00 RES .,FXD,FILM :20 OHM,1%,0 .125W 91637 MFF1816G20ROOF
