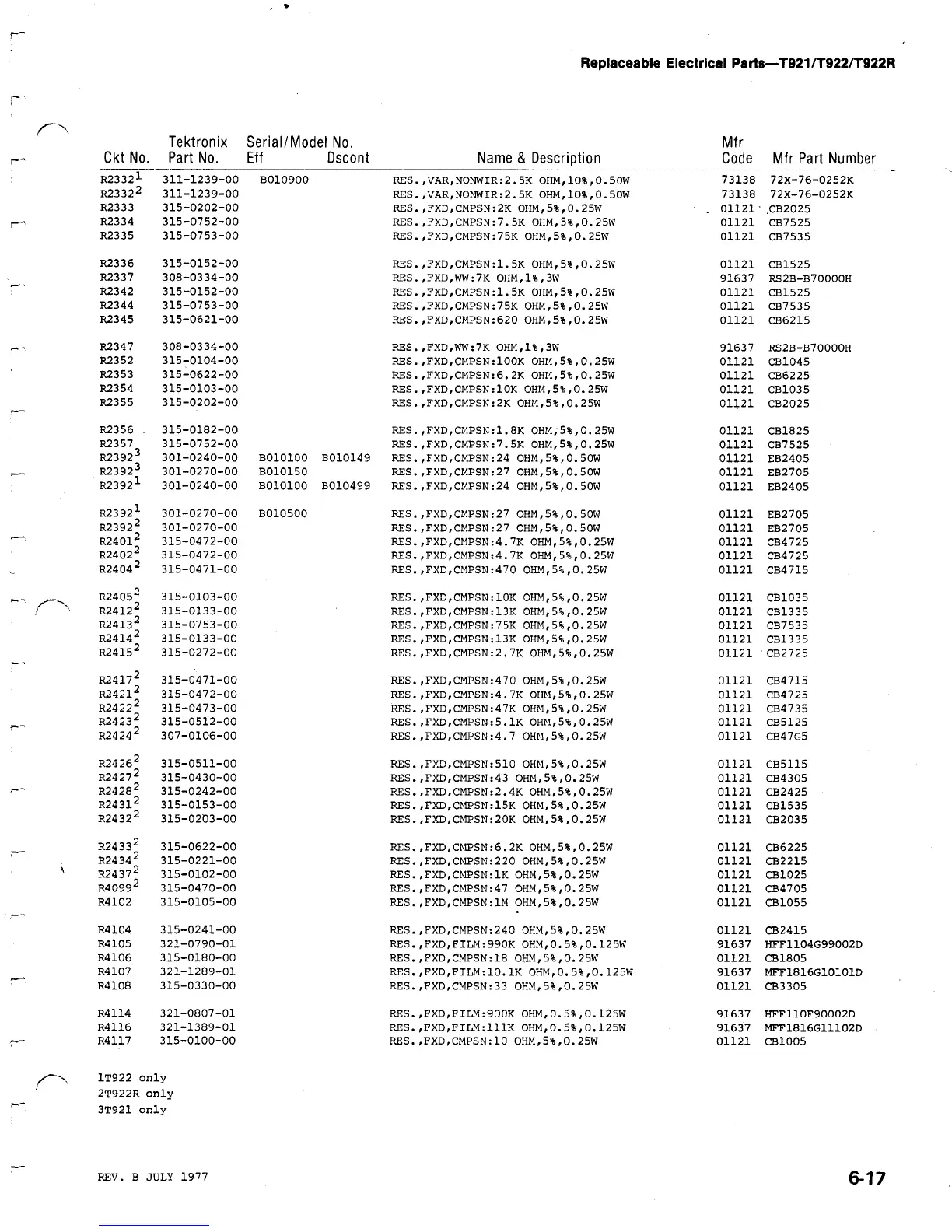

Tektronix T921 User Manual

Tektronix

Serial/Model
No .
Ckt N o .

Part N o .

Eff

Dscont
1T922 only
2T922R only
3T921 only
REV . B JULY1977
Name & Description
Replaceable
Electrical
Parts-T921/T922/T922R
Mfr
Code

Mfr Part Number
6- 1 7
82332 1 311-1239-00
B010900 RES .,VAR,NONWIR :2 .5K OHM,108,0 .50W 73138 72x-76-0252K
82332 2 311-1239-00 RES .,VAR,NONWIR :2 .5K OHM,10%,0 .50W 73138 72X-76-0252K
82333 315-0202-00
RES .,FXD,CMPSN :2K OHM,5%,0 .25W 01121' CB2025
82334
315-0752-00 RES .,FXD,CMPSN :7 .5K OHM,5%,0 .25W 01121 CB7525
82335
315-0753-00 RES .,FXD,CMPSN :75K OHM,S%,0 .25W 01121 CB7535
82336 315-0152-00
RES .,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
82337 308-0334-00
RES .,FXD,WW :7K OHM,1%,3W 91637 RS2B-B70000H
82342 315-0152-00
RES .,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
82344 315-0753-00
RES .,FXD,CMPSN :75K OHM,5%,0 .25W 01121 CB7535
82345 315-0621-00
RES .,FXD,CMPSN :620 OHM,5%,0 .25W 01121 CB6215
R2347 308-0334-00 RES .,FXD,WW :7K OHM,1%,3W 91637
RS2B-B70000H
82352 315-0104-00 RES .,FXD,CMPSN :l00K OHM,S%,0
.25W 01121 CB1045
R2353 315-0622-00 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
82354 315-0103-00 RES .,FXD,CMPSN :10K OHMS%,0 .25W
01121 CB1035
R2355 315-0202-00 RES .,FXD,CMPSN :2K OHM,5%,0 .25W 01121 CB2025
82356 . 315-0182-00 RES
.,FXD,CMPSN :1 .8K OHM ;58,0 .25W 01121 CB1825
82357 315-0752-00
RES .,FXD,CMPSN :7 .5K OHM,5%,0 .25W 01121 CB7525
82392 3 301-0240-00 B010100B010149 RES .,FXD,CMPSN :24
OHM,5%,0 .50W 01121 EB2405
82392 3 301-0270-00 B010150 RES .,FXD,CMPSN :27
OHM,5%,0 .50W 01121 EB2705
R2392 1 301-0240-00 B010100B010499 RES .,FXD,CMPSN :24
OHM,5%,0 .50W 01121 EB2405
82392 1 301-0270-00 B010500 RES .,FXD,CMPSN :27 OHM,5%,0
.50W 01121 EB2705
82392 2 301-0270-00
RES .,FXD,CMPSN :27 OHM,5%,0 .50W 01121 EB2705
82401 2 315-0472-00 RES .,FXD,CMPSN :4 .7K OHM,5%,0 .25W
01121 CB4725
82402 2 315-0472-00 RES .,FXD,CMPSN :4 .7K OHM,5%,0 .25W 01121
CB4725
82404 2 315-0471-00 RES .,FXD,CMPSN :470 OHM,5%,0 .25W 01121 CB4715
R2405 2 315-0103-00 RES .,FXD,CMPSN :l0K OHM,5%,0 .25W 01121 CB1035
82412 2 315-0133-00 RES .,FXD,CMPSN :I3K OHM,5%,0 .25W
01121 CB1335
82413 2 315-0753-00 RES .,FXD,CMPSN :75K OHM,5%,0 .25W 01121 CB7535
82414 2 315-0133-00 RES .,FXD,CMPSN :13K OHM,5%,0 .25W 01121 CB1335
82415 2 315-0272-00 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W 01121 CB2725
82417 2
315-0471-00 RES .,FXD,CMPSN :470 OHM,5%,0 .25W 01121 CB4715
82421 2 315-0472-00 RES .,FXD,CMPSN :4 .7K OHM,5%,0 .25W 01121 CB4725
R2422 2 315-0473-00 RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
82423 2 315-0512-00 RES .,FXD,CMPSN :5 .1K OHM,5%,0 .25W
01121 CB5125
R2424 2 307-0106-00 RES .,FXD,CMPSN :4 .7
OHM,5%,0 .25W 01121 CB47G5
R2426 2 315-0511-00 RES .,FXD,CMPSN
:510
OHM,5%,0 .25W
01121 CB5115
82427 2 315-0430-00 RES .,FXD,CMPSN :43 OHM,5%,0 .25W
01121 CB4305
82428 2 315-0242-00 RES .,FXD,CMPSN :2 .4K OHM,5%,0 .25W 01121 CB2425
R2431 2 315-0153-00 RES .,FXD,CMPSN :I5K OHM,5%,0 .25W 01121 CB1535
82432 2 315-0203-00 RES .,FXD,CMPSN :20K OHM,5%,0 .25W 01121 CB2035
82433 2 315-0622-00 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
R2434 2 315-0221-00
RES .,FXD,CMPSN :220 OHM,5%,0 .25W 01121 CB2215
R2437 2 315-0102-00 RES .,FXD,CMPSN
:IK OHM,5%,0 .25W 01121 CB1025
84099 2 315-0470-00 RES .,FXD,CMPSN :47 OHM,5%,0 .25W
01121 CB4705
84102 315-0105-00 RES .,FXD,CMPSN :IM OHM,5%,0 .25W
01121 CB1055
R4104 315-0241-00 RES .,FXD,CMPSN :240 OHM,5%,0 .25W 01121 CB2415
84105 321-0790-01 RES .,FXD,FILM :990K OHM,0 .5%,0.125W 91637 HFF1104G99002D
R4106 315-0180-00 RES .,FXD,CMPSN :18 OHM,5%,0 .25W 01121 CB1805
84107 321-1289-01 RES .,FXD,FILM :l0 .lK OHM,0 .5%,0.125W 91637 MFF1816G10101D
R4108 315-0330-00 RES .,FXD,CMPSN :33 OHM,5%,0 .25W 01121 CB3305
84114 321-0807-01 RES .,FXD,FILM :900KOHM,0.5%,0.125W 91637 HFF11OF90002D
R4116 321-1389-01 RES .,FXD,FILM :111KOHM,0.5%,0.125W 91637 MFF1816G11102D
84117 315-0100-00 RES .,FXD,CMPSN :10 OHM,58,0
.25W 01121 CB1005
