Replaceable

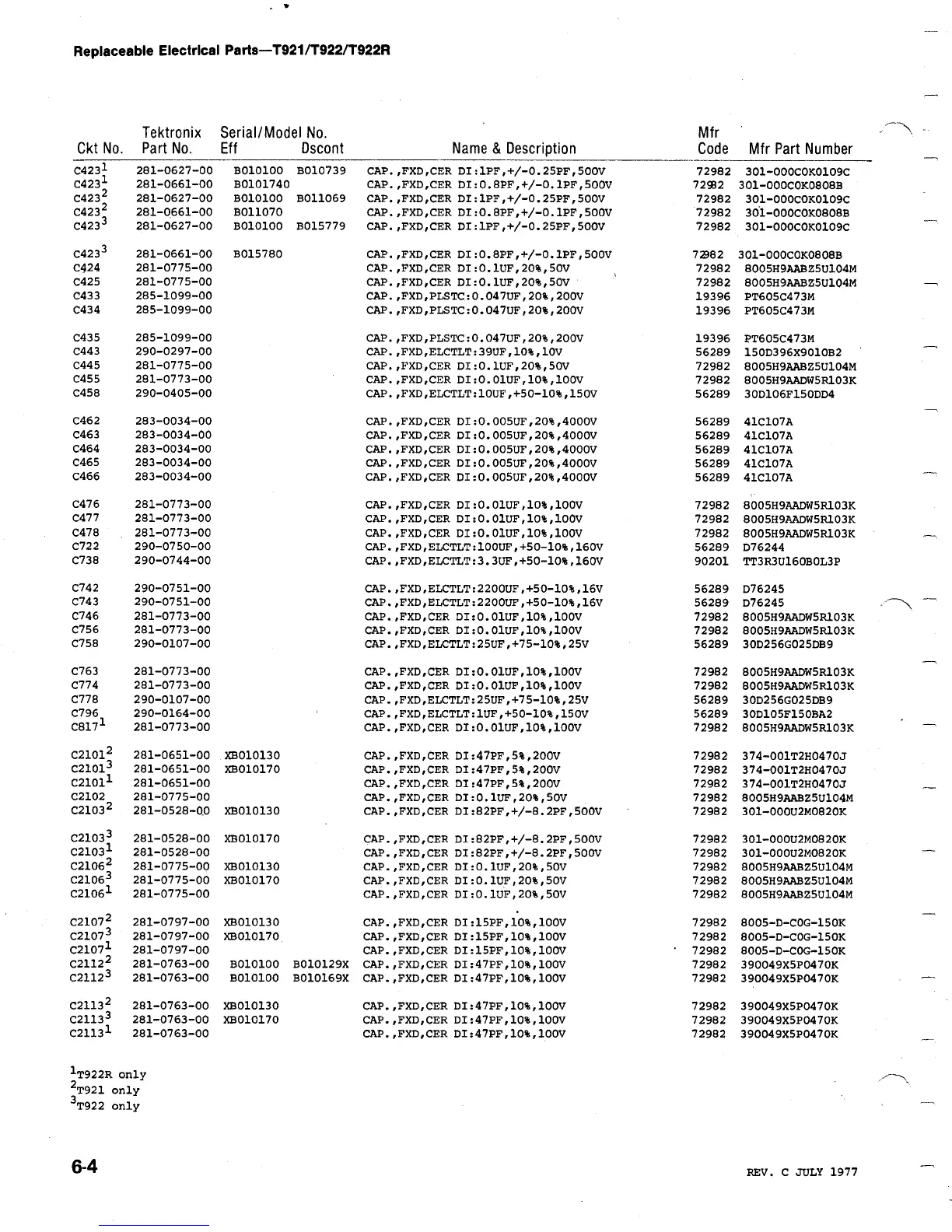

Electrical Parts-T921/T922/T922R
1 T922R only
2 T921 only
3 T922 only
6-4
REV . C JULY1977
Ckt No .
Tektronix
Part No .
Serial/Model No .
Eff Dscont Name & Description
Mfr
Code Mfr Part Number
0423 1 281-0627-00 B010100 B010739 CAP .,FXD,CER DI :1PF,+/-0.25PF,500V 72982
301-OOOCOK0109C
0423 1 281-0661-00 B0101740 CAP .,FXD,CER DI:0 .8PF,+/-O .1PF,500V 72582 301-OOOCOKO808B
C423 2 281-0627-00 B010100B011069 CAP .,FXD,CER DI :1PF,+/-0.25PF,500V 72982 301-OOOCOKO109C
C423 2 281-0661-00 B011070 CAP .,FXD,CER DI :0 .8PF,+/-O.1PF,500V 72982 301-000COK0808B
C423 3 281-0627-00 B010100B015779 CAP
.,FXD,CER DI
:1PF,+/-0
.25PF,SOOV 72982 301-OOOCOKO109C
C423 3 281-0661-00 B015780 CAP
.,FXD,CER DI :0 .8PF,+/-O .1PF,500V 72982 301-OOOCOKOB08B
C424 281-0775-00
CAP .,FXD,CER DI :O .lUF,20%,50V 72982 8005H9AABZ5U104M
C425 281-0775-00 CAP .,FXD,CER
DI :O .lUF,20%,50V 72982 8005H9AABZ5U104M
C433 285-1099-00
CAP .,FXD,PLSTC :0 .047UF,208,200V 19396 PT605C473M
C434 285-1099-00 CAP .,FXD,PLSTC
:0 .047UF,20%,200V 19396 PT60SC473M
C435 285-1099-00 CAP .,FXD,PLSTC
:0
.047UF,20%,200V
19396 PT605C473M
C443 290-0297-00 CAP .,FXD,ELCTLT:39UF,108,1OV
56289 150D396X901OB2
C445 281-0775-00 CAP .,FXD,CER DI :O .lUF,20%,SOV
72982 8005H9AABZ5U104M
0455 281-0773-00 CAP .,FXD,CER DI :0 .O1UF,10%,100V
72982 8005H9AADW5R103K
C458 290-0405-00 CAP .,FXD,ELCTLT :l0UF,+50-10%,150V 56289
30D106Fl5ODD4
0462
283-0034-00 CAP .,FXD,CER DI :0 .005UF,20%,4000V 56289 41C107A
C463 283-0034-00 CAP .,FXD,CER DI :0 .005UF,20%,4000V 56289 41C107A
C464
283-0034-00 CAP .,FXD,CER DI :0 .005UF,20%,4000V 56289 41C107A
C465
283-0034-00 CAP .,FXD,CER DI :0 .005UF,20%,4000V 56289 41C107A
C466 283-0034-00
CAP .,FXD,CER DI:0 .005UF,20%,4000V 56289 41C107A
C476 281-0773-00
CAP .,FXD,CER DI :O .OIUF,10%,100V 72982 8005H9AADW5R103K
C477 281-0773-00
CAP .,FXD,CER DI :O .O1UF,10%,100V 72982 8005H9AADW5R103K
C478
281-0773-00 CAP .,FXD,CER DI :0 .O1UF,10%,100V 72982 8005H9AADW5R103K
C722 290-0750-00
CAP .,FXD,ELCTLT :100UF,+50-10%,160V 56289 D76244
C738 290-0744-00
CAP .,FXD,ELCTLT :3 .3UF,+50-108,160V 90201 TT3R3U160BOL3P
C742 290-0751-00 CAP .,FXD,ELCTLT
:2200UF,+50-10%,16V 56289 D76245
0743 290-0751-00 CAP .,FXD,ELCTLT
:2200UF,+50-10%,16V 56289 D76245
C746 281-0773-00 CAP .,FXD,CER
DI :O .O1UF,l0%,100V 72982 8005H9AADW5R103K
C756 281-0773-00 CAP .,FXD,CER
DI :O .O1UF,l0%,IOOV 72982 8005H9AADW5R103K
C758 290-0107-00 CAP .,FXD,ELCTLT :25UF,+75-10%,25V 56289 30D256GO25DB9
C763 281-0773-00 CAP .,FXD,CER DI :0 .O1UF,10%,100V 72982 8005H9AADW5R103K
C774 281-0773-00 CAP .,FXD,CER DI :0 .O1UF,10%,100V 72982 8005H9AADW5R103K
C778 290-0107-00 CAP .,FXD,ELCTLT :25UF,+75-10%,25V 56289 30D256GO25DB9
C796 290-0164-00 CAP .,FXD,ELCTLT :lUF,+50-10%,150V 56289 30D105F150BA2
C817 1 281-0773-00 CAP .,FXD,CER DI :0 .O1UF,10%,l00V 72982 8005H9AADW5R103K
C2101 2 281-0651-00 XBO10130 CAP .,FXD,CER DI :47PF,5%,200V 72982 374-OOlT2HO470J
C2101 3 281-0651-00 XBO10170 CAP .,FXD,CER DI :47PF,5%,200V 72982 374-OOlT2HO470J
C2101 1 281-0651-00 CAP .,FXD,CER DI :47PF,5%,200V 72982 374-OOlT2HO470J
C2102 281-0775-00
CAP .,FXD,CER DI :O .lUF,20%,50V 72982 8005H9AABZ5U104M
C2103 2 281-0528-0,0
XBO10130 CAP .,FXD,CER DI :82PF,+/-8 .2PF,500V 72982 301-OOOU2MO820K
C2103 3 281-0528-00
XBO10170 CAP .,FXD,CER DI :82PF,+/-8 .2PF,500V 72982 301-00OU2M0820K
C2103 1 281-0528-00
CAP .,FXD,CER DI :82PF,+/-8 .2PF,500V 72982 301-00OU2MO820K
C2106 2 281-0775-00 XBO10130
CAP
.,FXD,CER
DI :O .IUF,20%,50V 72982 8005H9AABZ5U104M
C2106 3 281-0775-00XBO10170 CAP .,FXD,CER DI :O .lUF,20%,50V 72982
8005H9AABZ5U104M
C2106 1 281-0775-00 CAP .,FXD,CER DI :O .lUF,20%,SOV 72982
8005H9AABZ5U104M
C2107 2 281-0797-00 XBO10130 CAP .,FXD,CER DI
:15PF,10%,100V 72982 8005-D-COG-150K
02107 3 281-0797-00 XBO10170 CAP .,FXD,CER DI :15PF,10%,100V
72982 8005-D-COG-150K
C2107 1 281-0797-00 CAP .,FXD,CER DI
:15PF,10%,100V 72982 8005-D-COG-150K
C2112 2 281-0763-00 B010100 B010129X CAP .,FXD,CER DI :47PF,10%,100V 72982
390049X5PO470K
C2112 3 281-0763-00 B010100 B010169X CAP .,FXD,CER DI :47PF,10%,100V 72982
390049X5PO470K
02113 2 281-0763-00 XBO10130 CAP .,FXD,CER DI :47PF,10%,100V 72982 390049X5PO470K
C2113 3 281-0763-00 XBO10170 CAP .,FXD,CER DI :47PF,10%,100V 72982 390049XSP0470K
02113 1 281-0763-00 CAP .,FXD,CER DI :47PF,10%,100V 72982 390049X5P0470K
