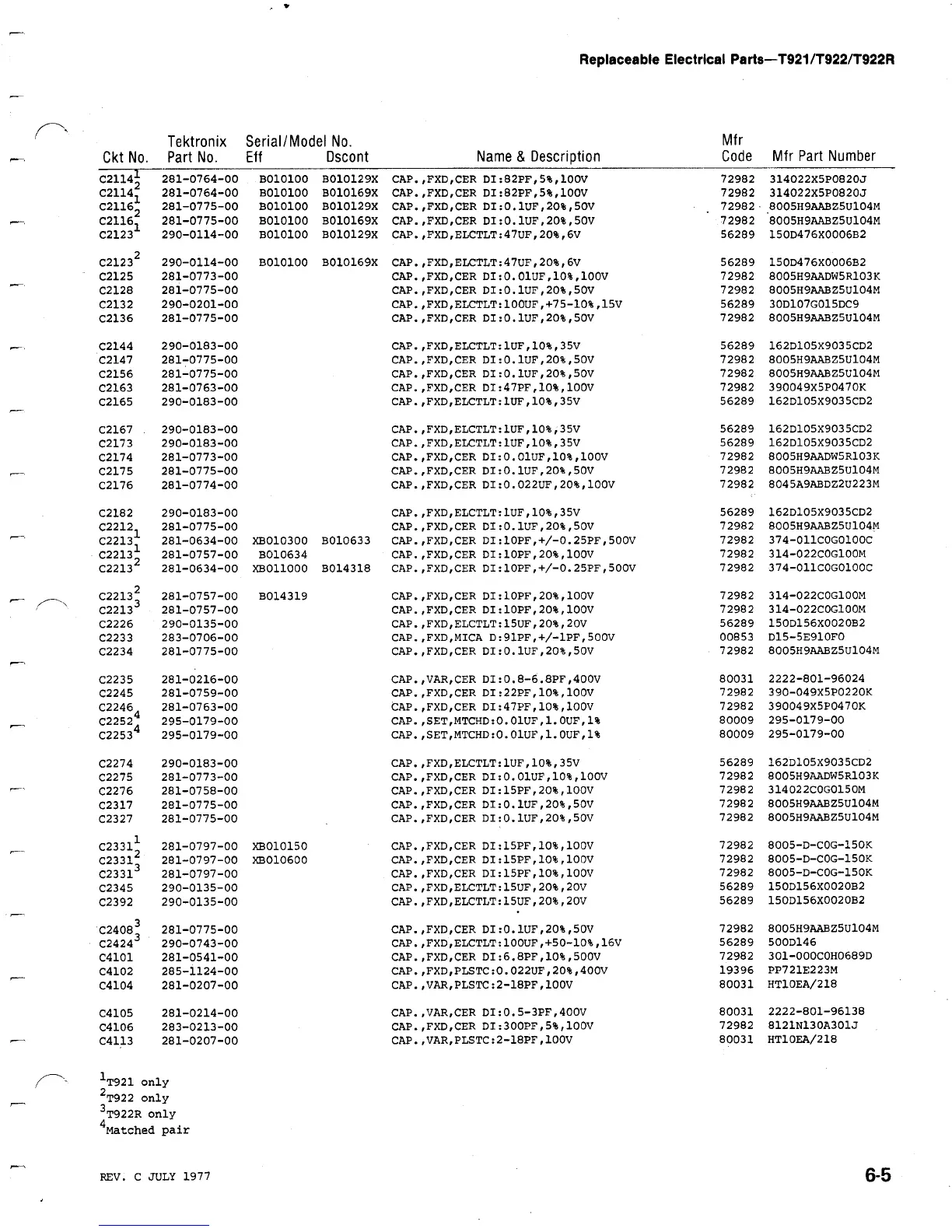

Replaceable Electrical Parts-T921/T922/T922R
1 T921 only
2 T922
only
3 T922R
only
4 Matched pair
REV . C JULY 1977
6- 5
Ckt
No .
Tektronix
Part No .
Serial/Model
Eff
No .
Dscont Name & Description
Mfr
Code
Mfr Part Number
C2114 1 281-0764-00 B010100 B010129X CAP .,FXD,CER DI :82PF,5%,100V 72982 314022X5P0820J
C2114 2 281-0764-00 B010100 B010169X CAP .,FXD,CER DI :82PF,5%,100V 72982 314022X5PO820J
C2116 2 281-0775-00 8010100 B010129X CAP .,FXD,CER DI :O .lUF,208,50V 72982 8005H9AABZ5U104M
C2116 1 281-0775-00 8010100 B010169X CAP .,FXD,CER DI :O .lUF,20%,50V " 72982 8005H9AABZ5U104M
C2123 290-0114-00 B010100 B010129X CAP .,FXD,ELCTLT:47UF,20%,6V 56289 150D476X0006B2
C2123 2 290-0114-00 B010100 B010169X CAP .,FXD,ELCTLT:47UF,20%,6V 56289 150D476X0006B2
C2125 281-0773-00 CAP .,FXD,CER DI :O .O1UF,10%,100V 72982 8005H9AADW5R103K
C2128 281-0775-00 CAP .,FXD,CER DI :O .lUF,20%,50V 72982
8005H9AABZ5U104M
C2132 290-0201-00 CAP .,FXD,ELCTLT :100UF,+75-10%,15V 56289 30D107GO15DC9
C2136 281-0775-00 CAP
.,FXD,CER DI
:O
.lUF,20%,50V 72982 8005H9AABZ5U104M
C2144
290-0183-00 CAP .,FXD,ELCTLT:lUF,10%,35V 56289 162D105X9035CD2
C2147 281-0775-00 CAP
.,FXD,CER
DI :O
.lUF,20%,50V 72982 8005H9AABZ5U104M
C2156
281-0775-00 CAP .,FXD,CER DI :O .lUF,20%,50V 72982 8005H9AABZ5U104M
C2163 281-0763-00
CAP .,FXD,CER DI :47PF,10%,100V 72982 390049XSP0470K
C2165 290-0183-00 CAP .,FXD,ELCTLT:lUF,10%,35V 56289 162D105X9035CD2
C2167 . 290-0183-00 CAP .,FXD,ELCTLT:lUF,10%,35V 56289 162DlO5X9035CD2
C2173 290-0183-00 CAP .,FXD,ELCTLT :lUF,10%,35V 56289 162DlO5X9035CD2
C2174 281-0773-00 CAP .,FXD,CER DI :O .O1UF,10%,100V 72982 8005H9AADWSR103K
C2175 281-0775-00 CAP .,FXD,CER DI :O .lUF,20%,50V
72982 8005H9AABZ5U104M
C2176 281-0774-00 CAP .,FXD,CER DI :0 .022UF,20%,100V 72982
8045A9ABDZ2U223M
C2182 290-0183-00 CAP .,FXD,ELCTLT' :lUF,10%,35V 56289
162D105X9035CD2
C2212 1 281-0775-00 CAP .,FXD,CER DI :O
.lUF,20%,50V 72982 8005H9AABZ5U104M
C2213 281-0634-00 XBO10300 8010633 CAP .,FXD,CER DI :1OPF,+/-0 .25PF,500V
72982 374-0110000100C
C2213 2 281-0757-00 B010634 CAP .,FXD,CER DI :1OPF,20%,100V
72982 314-022000100M
C2213 281-0634-00 XBO11000 8014318 CAP .,FXD,CER DI
:1OPF,+/-0 .25PF,500V 72982 374-0110000100C
C2213
2
281-0757-00 B014319
CAP .,FXD,CER DI :1OPF,20%,100V 72982 314-022000100M
C2213 3
281-0757-00 CAP .,FXD,CER DI :1OPF,20%,100V 72982 314-022000100M
C2226 90-0135-00 CAP .,FXD,ELCTLT :15UF,20%,20V 56289 150D156XO020B2
C2233 283-0706-00 CAP .,FXD,MICA D :91PF,+/-1PF,500V 00853 D15-5E910FO
C2234 281-0775-00 CAP .,FXD,CER DI :O .IUF,20%,50V 72982
8005H9AABZ5U104M
C2235 281-0216-00 CAP .,VAR,CER DI :0 .8-6 .8PF,400V 80031 2222-801-96024
C2245 281-0759-00 CAP .,FXD,CER DI :22PF,10%,100V
72982 390-049X5P0220K
C2246 4 281-0763-00 CAP .,FXD,CER DI :47PF,10%,100V
72982 390049X5PO470K
C2252 295-0179-00 CAP .,SET,MTCHD :O
.O1UF,1.0UF,1% 80009 295-0179-00
C2253 4 295-0179-00 CAP .,SET,MTCHD :0 .O1UF,1
.0UF,l8 80009 295-0179-00
C2274 290-0183-00 CAP .,FXD,ELCTLT :lUF,10%,35V
56289 162D105X9035CD2
C2275 281-0773-00 CAP .,FXD,CER DI :O .O1UF,10%,100V
72982 8005H9AADW5R103K
C2276 281-0758-00 CAP
.,FXD,CER DI :15PF,20%,100V 72982 3140220000150M
C2317 281-0775-00 CAP .,FXD,CER
DI
:O
.lUF,20%,50V 72982 SOOSH9AABZ5U104M
C2327 281-0775-00
CAP .,FXD,CER DI :O .lUF,20%,50V 72982 SOO5H9AABZ5U104M
C2331 1
281-0797-00 XBO10150 CAP .,FXD,CER DI :15PF,10%,100V 72982 8005-D-COG-150K
C2331
281-0797-00 X8010600 CAP .,FXD,CER DI :15PF,10%,100V
72982 8005-D-COG-150K
C2331
3
281-0797-00 CAP .,FXD,CER DI :15PF,10%,100V
72982 8005-D-COG-150K
C2345 290-0135-00 CAP .,FXD,ELCTLT
:15UF,20%,20V 56289 150D156XO020B2
C2392 290-0135-00 CAP .,FXD,ELCTLT :15UF,20%,20V
56289 150D156XO02OB2
C24083 281-0775-00 CAP .,FXD,CER DI :O .lUF,208,50V
72962 SOO5H9AABZ5U104M
C2424 290-0743-00
CAP .,FXD,ELCTLT :100UF,+50-10%,16V 56289 50OD146
C4101 281-0541-00 CAP
.,FXD,CER DI :6 .8PF,10%,500V 72982 301-000COH0689D
C4102 285-1124-00
CAP .,FXD,PLSTC :0 .022UF,20%,400V 19396 PP721E223M
C4104 281-0207-00 CAP
.,VAR,PLSTC:2-18PF,l00V 80031 HT10EA/218
C4105 281-0214-00
CAP .,VAR,CER DI :0 .5-3PF,400V 80031
2222-801-96138
C4106 283-0213-00
CAP .,FXD,CER DI :300PF,5%,100V 72982 8121N130A301J
C4113
281-0207-00 CAP .,VAR,PLSTC:2-18PF,l00V 80031
HT10EA/218
