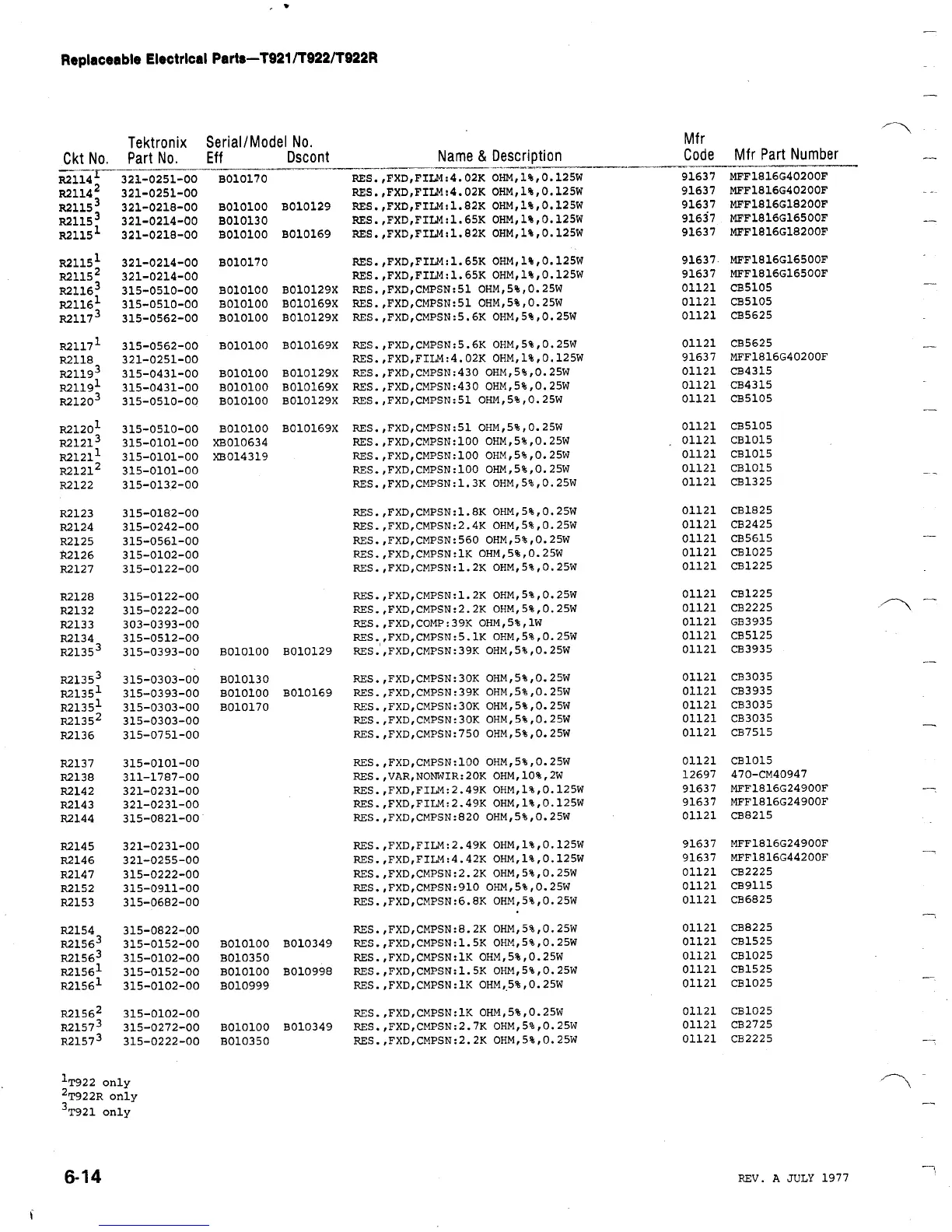

Tektronix T922 User Manual

Replaceable Electrical
Parts-T921/T922/T922R
1 T922 only
2 T922R only
3 T921 only
6- 1 4
REV . A JULY 1977
Ckt No .
82114
Tektronix
Part No . _
321-0251-00
Serial/Model No .
Eff
Dscont
B010170
& Description
__
_N
ame
RES .,FXD,FILM
:4 .02K OHM,1%,0 .125
Mfr
Code
91637
Mfr Part Nu mber
MFF1816G40200F
82114 2 321-0251-00
RES .,FXD,FILM
:4 .02K OHM,1%,0 .125W 91637
MFF1816G40200F
82115 3
321-0218-00 B010100 8010129 RES .,FXD,FILM
:1 .82K OHM,1%,0 .125W 91637 MFF1816G18200F
R2115 3
321-0214-00 8010130 RES .,FXD,FILM
:1 .65K OHM,l%,0 .125W 91637
MFF1816G16500F
R2115 1
321-0218-00 80101008010169
RES .,FXD,FILM :1 .82K OHM,1%,0 .125W 91637
MFF1816G18200F
82115 1 321-0214-00 8010170
RES .,FXD,FILM :1 .65K OHM,1%,0 .125W
91637 . MFF1816G16500F
82115 2 321-0214-00
RES .,FXD,FILM :1 .65K OHM,1%,0 .125W
91637 MFF1816G16500F
82116 3 315-0510-00 8010100
B010129X RES .,FXD,CMPSN :51 OHM,5%,0 .25W
01121 CB5105
82116 1 315-0510-00 B010100
B010169X RES .,FXD,CMPSN :51 OHM,5%,0 .25W
01121 CB5105
82117 3 315-0562-00
8010100 B010129X RES .,FXD,CMPSN :5 .6K OHM,5%,0 .25W
01121 CB5625
82117 1 315-0562-00
B010100 B010169X RES .,FXD,CMPSN :5 .6K OHM,5%,0
.25W 01121 CB5625
82118
321-0251-00 RES .,FXD,FILM
:4 .02K OHM,1%,0 .125W 91637
MFF1816G40200F
82119 3
315-0431-00 B010100 B010129X RES .,FXD,CMPSN :430
OHM,5%,0 .25W 01121 CB4315
82119 1 315-0431-00
B010100 B010169X RES .,FXD,CMPSN
:430 OHM,5%,0 .25W 01121 CB4315
82120 3 315-0510-00 B010100 B010129X RES
.,FXD,CMPSN :51 OHM,5%,0 .25W 01121
CB5105
82120 1 315-0510-00 B010100 B010169X
RES .,FXD,CMPSN :51 OHM,5%,0 .25W
01121 CB5105
82121 3 315-0101-00 X8010634
RES .,FXD,CMPSN :100 OHM,5%,0
.25W 01121 CB1015
82121 1 315-0101-00 X8014319
RES .,FXD,CMPSN :100 OHM,5%,0 .25W
01121 CB1015
82121 2 315-0101-00
RES .,FXD,CMPSN :100 OHM,5%,0 .25W
01121 CB1015
82122 315-0132-00
RES .,FXD,CMPSN :I .3K OHM,5o,0 .25W
01121 CB1325
82123 315-0182-00 RES
.,FXD,CMPSN :I .SK OHM,5%,0 .25W
01121 CB1825
82124 315-0242-00
RES .,FXD,CMPSN :2 .4K OHM,5%,0 .25W
01121 CB2425
82125 315-0561-00 RES .,FXD,CMPSN
:560 OHM,5%,0 .25W 01121
CB5615
82126 315-0102-00
RES .,FXD,CMPSN :IK OHM,5%,0 .25W
01121 CE1025
82127 315-0122-00
RES .,FXD,CMPSN :I .2K OHM,5%,0 .25W
01121 CB1225
82128 315-0122-00
RES .,FXD,CMPSN :I .2K OHM,5%,0 .25W
01121 CB1225
82132 315-0222-00
RES .,FXD,CMPSN :2 .2K OHM,5%,0
.25W 01121 CB2225
82133 303-0393-00
RES .,FXD,COMP :39K
OHM,5%,1W 01121 GB3935
82134
315-0512-00 RES .,FXD,CMPSN :5 .1K
OHM,5%,0 .25W 01121 CB5125
82135
3 315-0393-00 B0101008010129 RES .,FXD,CMPSN :39K
OHM,5%,0 .25W 01121 CB3935
82135 3 315-0303-00 8010130 RES .,FXD,CMPSN
:30K OHM,5%,0 .25W 01121
CB3035
82135 1 315-0393-00 B0101008010169
RES .,FXD,CMPSN :39K OHM,5%,0 .25W
01121 CB3935
82135 1 315-0303-00 8010170 RES
.,FXD,CMPSN :30K OHM,5%,0 .25W 01121
CB3035
82135 2 315-0303-00
RES .,FXD,CMPSN :30K
OHM,5%,0 .25W 01121 CB3035
82136 315-0751-00
RES .,FXD,CMPSN :750 OHM,5%,0 .25W
01121 CB7515
82137 315-0101-00
RES .,FXD,CMPSN :100 OHM,5%,0 .25W
01121 CB1015
82138 311-1787-00
RES .,VAR,NONWIR :20K OHM,10%,2W
12697 470-CM40947
82142 321-0231-00
RES .,FXD,FILM :2 .49K OHM,1%,0 .125W
91637 MFF181GG2490OF
82143 321-0231-00
RES .,FXD,FILM :2 .49K
OHM,1%,0 .125W 91637 MFF1816G24900F
82144
315-0821-00 RES .,FXD,CMPSN
:820 OHM,5%,0 .25W 01121
CBS215
82145
321-0231-00 RES .,FXD,FILM
:2 .49K OHM,1%,0 .125W 91637
MFF1816G24900F
82146 321-0255-00 RES .,FXD,FILM
:4 .42K OHM,1%,0 .125W 91637 MFF1816G44200F
82147 315-0222-00
RES .,FXD,CMPSN :2 .2K
OHM,5%,0 .25W 01121 CB2225
82152 315-0911-00 RES .,FXD,CMPSN :910
OHM,5%,0 .25W 01121 CB9115
82153 315-0682-00
RES .,FXD,CMPSN :6 .8K
OHM,5%,0 .25W 01121 CB6825
82154 315-0822-00
RES .,FXD,CMPSN :8
.2K OHM,5%,0 .25W 01121
CBS225
82156 3 315-0152-00 B0101008010349 RES
.,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
82156 3
315-0102-00 8010350 RES .,FXD,CMPSN :IK
OHM,5%,0 .25W 01121 CB1025
82156 1 315-0152-00 B0101008010998 RES
.,FXD,CMPSN :I .5K OHM,5%,0 .25W 01121 CB1525
82156 1 315-0102-00 8010999 RES .,FXD,CMPSN
:IK OHM, .5%,0 .25W
01121 CB1025
82156 2 315-0102-00 RES
.,FXD,CMPSN :IK OHM,5%,0 .25W
01121 CB1025
82157 3 315-0272-00 B010100
8010349 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W
01121 CB2725
82157 3 315-0222-00 8010350
RES .,FXD,CMPSN :2 .2K OHM,5%,0 .25W
01121 CB2225
