Tektronix T922 User Manual

Tektronix

Serial/Model No .
_Ckt_No o. .

Part No . _ Eff_

Dsc _ ont

Name &D
escription _
~

1 T922only
2 T922R only
3
T921 only
REV . B JULY1977

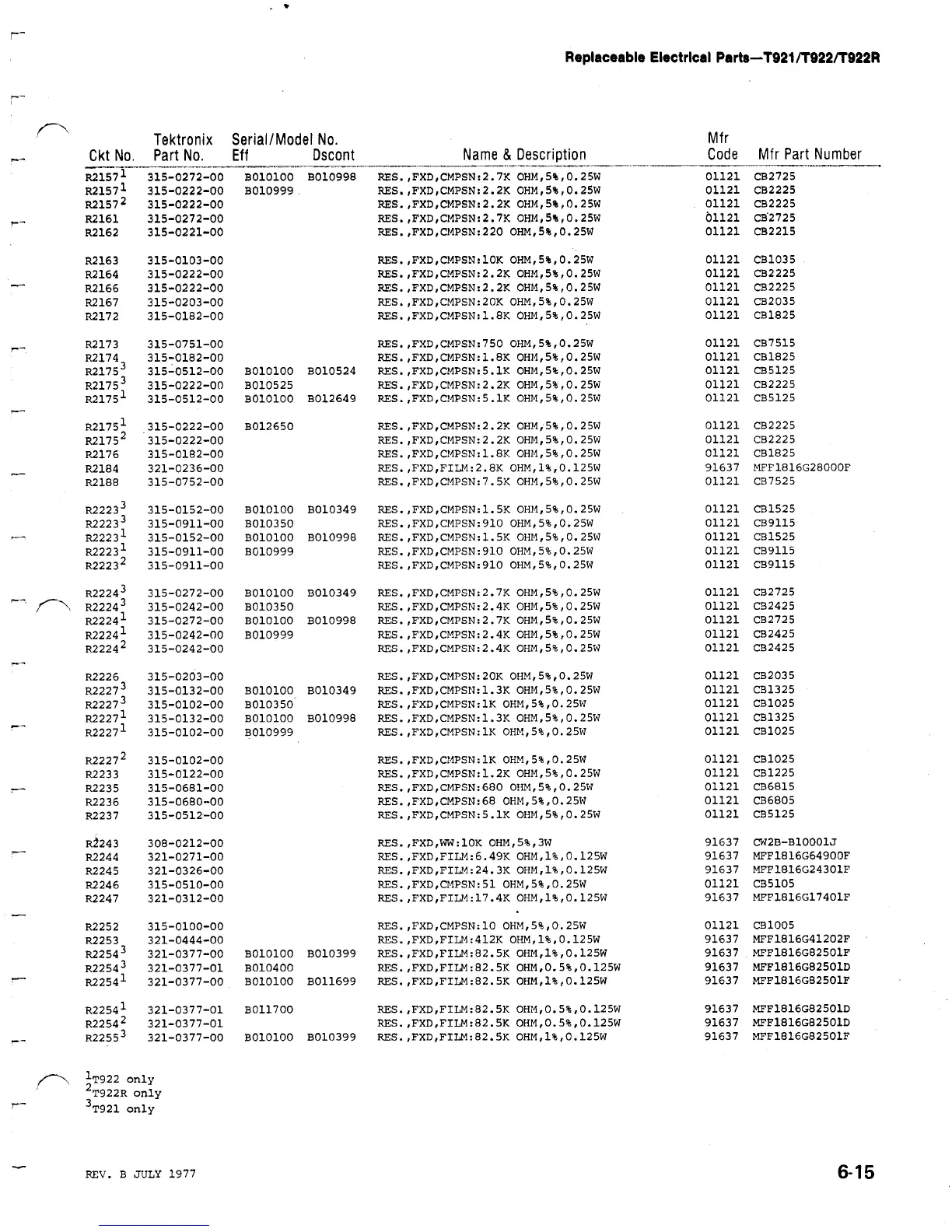

Replaceable Electrical Parts-T921/T922/T922R
Mfr
Code

Mfr Part Number
6- 1 5
R215T 1
82157 1
315-0272-00
315-0222-00
B010100
B010999 .
B010998RES .,FXD,CMPSN :2 .7KOHM,5%,0 .25W
RES .,FXD,CMPSN :2
.2K OHM,5%,0 .25W
01121
01121
CB2725
CB2225
R2157 2 315-0222-00
RES .,FXD,CMPSN :2 .2K OHM,5%,0 .25W 01121 CB2225
82161 315-0272-00
RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W 01121 CB2725
82162 315-0221-00
RES .,FXD,CMPSN :220 OHM,5%,0 .25W 01121 CB2215
82163 315-0103-00
RES .,FXD,CMPSN :l0K OHM,5%,0 .25W 01121 CB1035
82164
315-0222-00 RES .,FXD,CMPSN :2 .2K OHM,5%,0 .25W 01121 CB2225
R2166 315-0222-00
RES .,FXD,CMPSN :2 .2K OHM,5%,0 .25W 01121 CB2225
R2167 315-0203-00
RES .,FXD,CMPSN :20K OHM,5%,0 .25W 01121 CB2035
82172 315-0182-00
RES .,FXD,CMPSN :I .8K OHM,5%,0 .25W 01121 CB1825
82173 315-0751-00
RES .,FXD,CMPSN :750 OHM,5%,0 .25W 01121 CB7515
R2174 315-0182-00 RES .,FXD,CMPSN :I .8K OHM,5%,0 .25W 01121
CB1825
82175 3 315-0512-00 B010100B010524 RES .,FXD,CMPSN :5 .1K
OHM,5%,0
.25W
01121 CB5125
82175 3 315-0222-00 B010525 RES .,FXD,CMPSN
:2 .2K OHM,5%,0 .25W 01121 CB2225
R2175 1 315-0512-00 B010100
B012649 RES .,FXD,CMPSN :5 .lK OHM,5%,0 .25W 01121 CB5125
82175 1 315-0222-00
B012650 RES .,FXD,CMPSN :2 .2K OHM,5%,0 .25W 01121 CB2225
82175 2
315-0222-00 RES .,FXD,CMPSN :2 .2K OHM,5%,0 .25W 01121
CB2225
82176 315-0182-00 RES .,FXD,CMPSN :I .8K OHM,5%,0 .25W 01121
CB1825
82184 321-0236-00 RES .,FXD,FILM :2 .8K OHM,1%,0 .125W 91637
MFF1816G28000F
R2188 315-0752-00 RES .,FXD,CMPSN :7 .5K OHM,5%,0 .25W 01121
CB7525
82223 3 315-0152-00 B010100B010349 RES .,FXD,CMPSN :l .5K OHM,5%,0
.25W 01121 CB1525
82223 3 315-0911-00 B010350 RES
.,FXD,CMPSN :910 OHM,5%,0 .25W 01121 CB9115
82223 1 315-0152-00 B010100B010998 RES .,FXD,CMPSN :I .5K
OHM,5%,0 .25W 01121 CB1525
82223 1 315-0911-00 B010999
RES .,FXD,CMPSN :910 OHM,5%,0 .25W 01121 CB9115
R2223 2 315-0911-00 RES
.,FXD,CMPSN :910 OHM,5%,0 .25W 01121 CB9115
82224 3 315-0272-00
B010100B010349 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W 01121 CB2725
82224
3 315-0242-00 B010350 RES .,FXD,CMPSN :2 .4K OHM,5%,0 .25W 01121 CB2425
82224 1
315-0272-00 B010100 B010998 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W 01121
CB2725
82224
1 315-0242-00 B010999 RES .,FXD,CMPSN :2 .4K OHM,5%,0 .25W 01121 CB2425
82224
2
315-0242-00 RES .,FXD,CMPSN :2 .4K OHM,5%,0 .25W 01121 CB2425
R2226 315-0203-00 RES .,FXD,CMPSN :20K OHM,5%,0 .25W 01121 CB2035
82227 3 315-0132-00 B010100B010349 RES .,FXD,CMPSN :1 .3K OHM,5%,0 .25W 01121 CB1325
82227 3 315-0102-00 B010350 RES .,FXD,CMPSN :IK OHM,5%,0 .25W
01121 CB1025
R2227 1 315-0132-00 B010100 B010998 RES .,FXD,CMPSN :I .3K OHM,5%,0 .25W 01121
CB1325
R2227 1 315-0102-00 B010999 RES .,FXD,CMPSN :IK OHM,5%,0 .25W
01121 CB1025
82227 2 315-0102-00 RES .,FXD,CMPSN :IK OHM,5%,0
.25W 01121 CB1025
82233 315-0122-00 RES
.,FXD,CMPSN
:I .2K
OHM,5%,0 .25W 01121 CB1225
82235 315-0681-00
RES .,FXD,CMPSN :680 OHM,5%,0 .25W 01121 CB6815
82236 315-0680-00
RES .,FXD,CMPSN :68 OHM,5%,0 .25W 01121 CB6805
82237 315-0512-00
RES .,FXD,CMPSN :5 .1K OHM,5%,0 .25W 01121 CB5125
82243 308-0212-00
RES .,FXD,WW :10K OHM,5%,3W 91637 CW2B-Bl0001J
82244 321-0271-00 RES .,FXD,FILM :6 .49K OHM,1%,0 .125W 91637
MFF1816G64900F
R2245 321-0326-00 RES .,FXD,FILM :24 .3K
OHM,1%,0 .125W 91637 MFF1816G24301F
R2246 315-0510-00 RES .,FXD,CDIPSN :51 OHM,5%,0 .25W 01121
CB5105
R2247 321-0312-00 RES .,FXD,FILM
:17 .4K OHM,1%,0 .125W 91637 MFF1816G17401F
82252 315-0100-00
RES .,FXD,CMPSN :10 OHM,5%,0 .25W 01121 CB1005
R2253 321-0444-00
RES .,FXD,FIL14 :412K OHM,1%,0 .125W 91637 MFF1816G41202F
82254 3 321-0377-00
B010100B010399 RES .,FXD,FILM :82 .5K OHM,1%,0 .125W 91637 MFF1816GB2501F
82254 3 321-0377-01 B010400
RES .,FXD,FILM :82 .5K OHM,0 .5%,0.125W 91637 MFF1816G82501D
82254 1 321-0377-00
B010100 B011699 RES .,FXD,FILM :82 .5K OHM,1%,0 .125W 91637 MFF1816GS2501F
82254 1 321-0377-01
B011700 RES .,FXD,FILM :82 .5K OHM,0 .5%,0.125W 91637 MFF1816G82501D
82254 2 321-0377-01
RES .,FXD,FILM :82.5K OHM,0 .5%,0.125W 91637 MFF1816G82501D
82255 3
321-0377-00 B010100 B010399 RES .,FXD,FILM :82 .5K OHM,1%,0 .125W
91637 MFF1816G82501F
