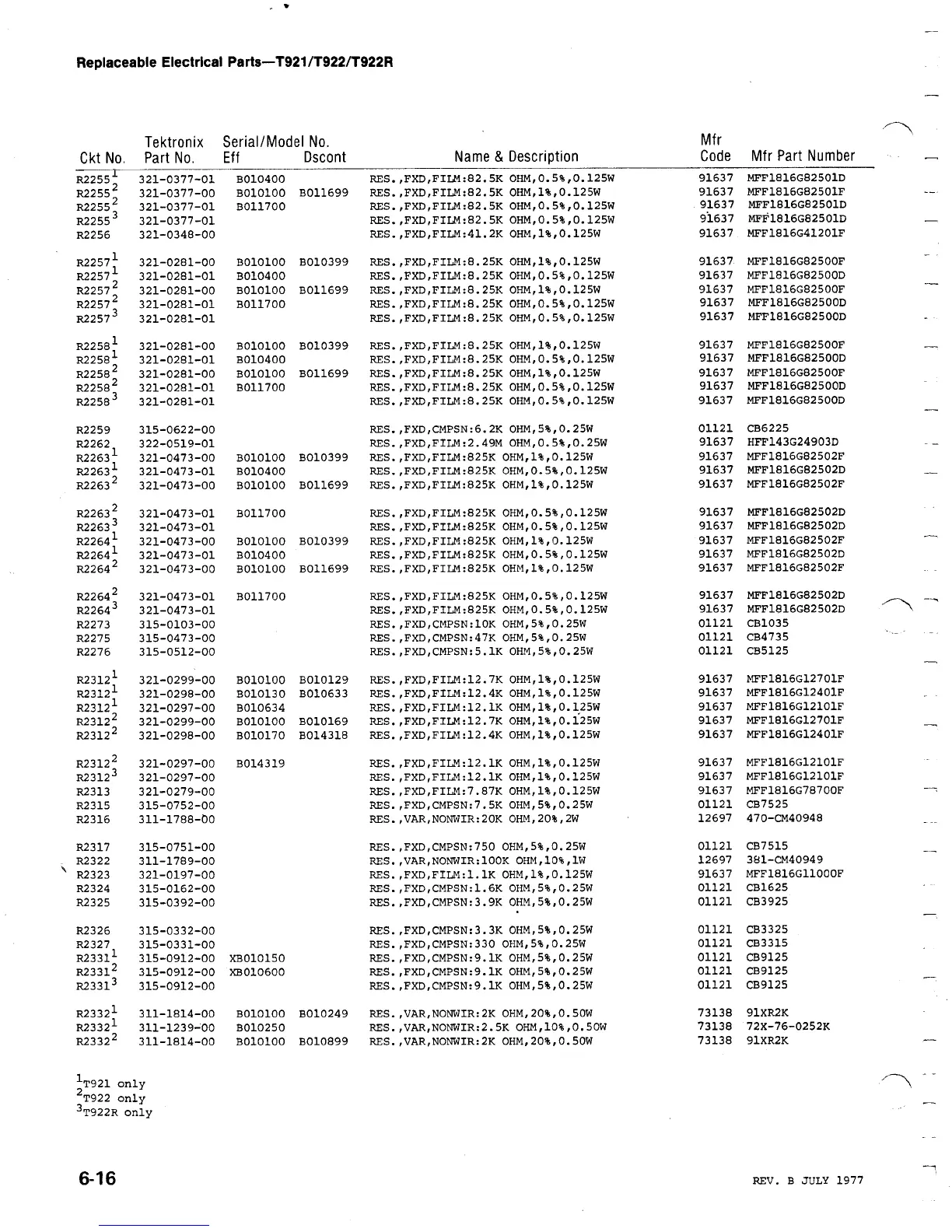

Tektronix T922 User Manual

Replaceable Electrical Parts-T921/T922/T922R
1 T921 only
2
T922
only
3 T922R only
6- 1 6
REV . B
JULY
1977
Ckt No .
Tektronix
Part
No .
Serial/Model
Eff
No .
Dscont Name & Description
Mfr
Code Mfr Part Number
82255 1
321-0377-01
_
B010400 RES .,FXD,FILM :82 .5K OHM,0.5%,0 .125W
91637 MFF1816GB2501D
R2255 2
321-0377-00 B010100B011699 RES .,FXD,FILM :82 .5K OHM,1%,0 .125W
91637 MFF1816GB2501F
82255 2 321-0377-01 B011700 RES .,FXD,FILM
:82 .5K OHM,0.5%,0 .125W 91637 MFF1816G82501D
R2255 3 321-0377-01 RES .,FXD,FILM
:82 .5K OHM,0 .5%,0.125W 9].637 MFF1816G82501D
R2256 321-0348-00
RES .,FXD,FILM :41 .2K OHM,1%,0 .125W 91637 MFF1816G41201F
R2257 1 321-0281-00 B0101008010399
RES .,FXD,FILM :8 .25K OHM,1%,0 .125W 91637 . MFF1816GS250OF
82257 1 321-0281-01 B010400
RES .,FXD,FILM :8 .25K OHM,0 .5%,0.125W 91637 MFF1816GB2500D
R2257 2 321-0281-00 B010100B011699
RES .,FXD,FILM :8 .25K OHM,1%,0 .125W 91637 MFF1816GS250OF
82257 2 321-0281-01 B011700 RES
.,FXD,FILM :8 .25K OHM,0.5%,0 .125W 91637
MFF1816GB2500D
R2257 3 321-0281-01 RES .,FXD,FILM
:8 .25K OHM,0 .5%,0.125W 91637 MFF1816GB2500D
82258 1 321-0281-00
B010100B010399 RES .,FXD,FILM :8 .25K OHM,1%,0 .125W 91637 MFF1816G82500F
82258 1 321-0281-01
B010400 RES .,FXD,FILM :8 .25K OHM,0 .5%,0.125W
91637 MFF1816G82500D
R2258 2 321-0281-00
B0101008011699 RES .,FXD,FILM :8 .25K OHM,1%,0 .125W 91637 MFF1816GS250OF
82258 2 321-0281-01
B011700 RES .,FXD,FILM :8 .25K OHM,0 .5%,0.125W
91637 MFF1816G82500D
82258 3
321-0281-01 RES .,FXD,FILM :8 .25K OHM,0 .5%,0.125W 91637 MFF1816GB2500D
82259
315-0622-00 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
82262 322-0519-01
RES .,FXD,FILM :2 .49M OHM,0 .5%,0 .25W
91637 HFF143G24903D
82263 1
321-0473-00 B010100B010399 RES .,FXD,FILM :825K OHM,1%,0 .125W 91637 MFF1816GS2502F
R2263 1
321-0473-01 8010400 RES .,FXD,FILM :825K OHM,0 .5%,0 .125W
91637 MFF1816GS2502D
82263 2 321-0473-00 B010100B011699 RES .,FXD,FILM :825K OHM,1%,0 .125W 91637
MFF1816G82502F
R2263 2 321-0473-01 B011700 RES .,FXD,FILM :825K OHM,0 .5%,0 .125W 91637
MFF1816G82502D
R2263 3 321-0473-01 RES .,FXD,FILM :825K OHM,0 .5%,0
.125W 91637 MFF1816G82502D
R2264 1 321-0473-00 B010100B010399 RES .,FXD,FILM :825K OHM,1%,0 .125W 91637 MFF1816G82502F
R2264 1 321-0473-01 B010400 RES .,FXD,FILM :825K OHM,0 .5%,0 .125W
91637 MFF1816G82502D
R2264 2 321-0473-00 B010100B011699 RES .,FXD,FILM :825K OHM,1%,0
.125W 91637 MFF1816GB2502F
82264 2 321-0473-01 B011700
RES
.,FXD,FILM
:825K OHM,0 .5%,0.125W 91637 MFF1816G82502D
82264 3 321-0473-01
RES .,FXD,FILM :825K OHM,0 .5%,0 .125W 91637 MFF1816G82502D
82273 315-0103-00
RES .,FXD,CMPSN :l0K OHM,5%,0 .25W 01121 CB1035
R2275 315-0473-00
RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
R2276 315-0512-00 RES .,FXD,CMPSN :5 .1K OHM,5%,0 .25W 01121 CB5125
82312 1 321-0299-00 B010100
8010129 RES .,FXD,FILM :12 .7K OHM,1%,0 .125W 91637 MFF1816G12701F
82312 1 321-0298-00 8010130 8010633 RES .,FXD,FILM :12 .4K OHM,1%,0 .125W
91637 MFF1816GI2401F
R2312 1 321-0297-00
B010634 RES .,FXD,FILM :12 .1K OHM,1%,0 .125W 91637
MFF1816G12101F
82312 2 321-0299-00 B010100B010169 RES .,FXD,FILM :l2 .7K OHM,1%,0
.125W 91637 MFF1816G12701F
82312 2 321-0298-00 8010170 8014318 RES .,FXD,FILM :12 .4K OHM,1%,0
.125W 91637 MFF1816G12401F
82312 2 321-0297-00 8014319 RES .,FXD,FILM :12 .1K OHM,1%,0 .125W
91637 MFF1816G12101F
R2312 3 321-0297-00 RES .,FXD,FILM :12 .lK OHM,1%,0
.125W 91637 MFF1816G12101F
82313 321-0279-00 RES .,FXD,FILM :7 .87K OHM,1%,0 .125W
91637 MFF1816G78700F
82315 315-0752-00 RES .,FXD,CMPSN :7 .5K OHM,5%,0 .25W
01121 CB7525
82316 311-1788-00 RES .,VAR,NONWIR :20K OHM,20%,2W
12697 470-CM40948
82317 315-0751-00 RES .,FXD,CMPSN :750
OHM,5%,0 .25W 01121 CB7515
82322 311-1789-00 RES .,VAR,NONWIR
:100K OHM,10%,1W 12697 381-CM40949
82323 321-0197-00 RES .,FXD,FILM :l .1K
OHM,1%,0 .125W 91637 MFF181GG11000F
R2324
315-0162-00
RES .,FXD,CMPSN :I .6K OHM,5%,0 .25W 01121 CB1625
82325 315-0392-00
RES .,FXD,CMPSN :3 .9K OHM,5%,0 .25W 01121 CB3925
82326 315-0332-00 RES
.,FXD,CMPSN :3 .3K OHM,5%,0 .25W 01121 CB3325
82327
315-0331-00
RES .,FXD,CMPSN :330 OHM,5%,0 .25W 01121 CB3315
R2331
1 315-0912-00 XE010150
RES .,FXD,CMPSN :9 .1K OHM,5%,0 .25W 01121 CB9125
82331 2 315-0912-00 X8010600 RES .,FXD,CMPSN :9 .1K OHM,5%,0 .25W
01121 CB9125
82331 3 315-0912-00 RES .,FXD,CMPSN :9 .1K OHM,5%,0 .25W
01121 CB9125
82332 1 311-1814-00 B0101008010249 RES .,VAR,NONWIR :2K OHM,20%,0 .50W
73138 91XR2K
82332 1 311-1239=00 8010250 RES .,VAR,NONWIR :2 .5K
OHM,10%,0 .50W 73138 72X-76-0252K
82332 2 311-1814-00 B0101008010899 RES .,VAR,NONWIR :2K OHM,20%,0 .50W
73138 91XR2K
