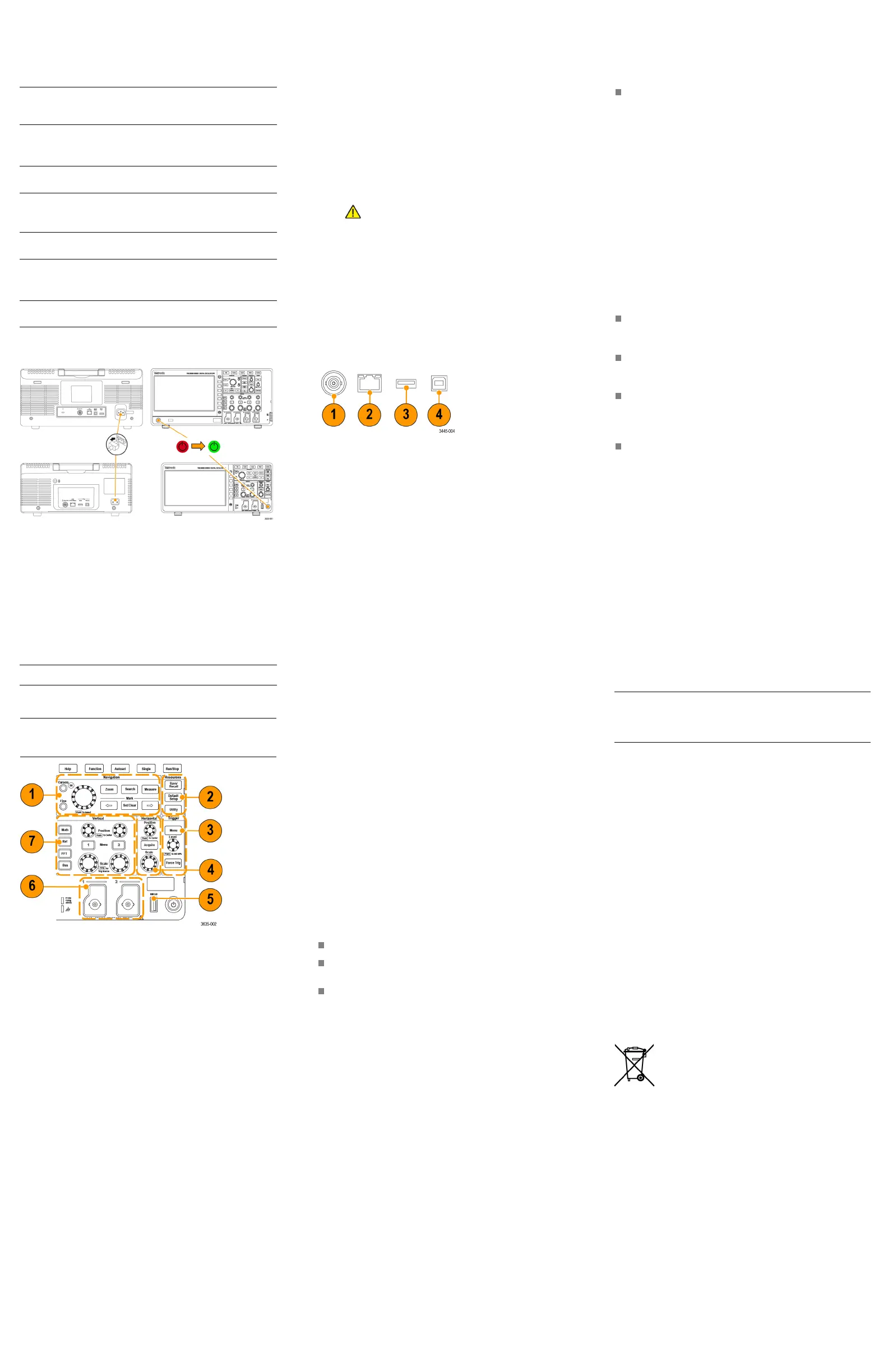

Operating requirements
Environment requirements
Characteristic Description
Operating
temperature
0°Cto+50°C,with5°C/minutemaximum
gradient, noncondensing (NC), up to
3000 meter altitude
Operating
humidity
5% to 95% relative humidity (% RH) up to
+30 °C
5% to 60% RH above +30 °C up to +50 °C, NC
Operating
altitude
Up to 3000 meters (9842 feet)
Power requirements
Characteristic Description
Power source
voltage
100 V
AC
–240V
AC
±10% RMS, single phase
Power source
frequency
50/60 Hz over entire source voltage range
400 Hz (360 Hz to 440 Hz) for 115 V
AC
(100 V
AC
–
132 V
AC
) RMS source voltage range
Power
consumption
All models: 80 W maximum
Installa
tion
Power on t
he unit
Connect the supplied power cord to the rear-panel power
connector. Push the front panel power button to power the
oscilloscope on and off. To completely remove power from the
unit, disconnect the power cord.
Controls and connections
Read the TBS2000X Series User Manual for detailed
information about all product controls, the user interface, how
to take measurements, and warranty information. The manual
is available in the languages listed below.
Language Tektronix part number
Simp
lified Chinese
077-1700-00
Front pa nel
NOTE. Some control and connector positions are different
between the two- and four-channel models, but their functions
are the same.
1. Use the Navigation controls to select menu items, set
values, display and move cursors, magnify a section of the
waveform and add marks (tags) to a waveform record. The
Mark functions are not now enabled, but will be available
in a future software update.
2. Use the Resource controls to open menus to select and
display automated measurements; save or recall setups,
waveforms, and screen images; set UI language, date and
time, network and Wi-Fi settings, and more.
3. Use the Tr
igger controls to set the trigger type, source
channel, trigger signal coupling, the signal’s trigger slope
(positive or negative), trigger level, and more.
4. Use the Horizontal controls to set the acquisition mode,
waveform rec
ord length, horizontal scale (time per major
horizontal graticule and samples/second), and more.
5. Use the USB 2.0 Host port to insert a USB flash drive to
save and recall screen im age s, waveforms, and settings,
and install new oscilloscope firmware.
6. Use the TekVPI
®
probe inp ut connectors to connect the
oscilloscope to the signal. The maximum measurement
input voltage is 300 V
RMS
,CATII.
A
symbol next to a m easurement readout indicates a
signal over range condition (clipping). This is often caused
by waveforms that extend above or below the screen edge.
To get an accurate measurement readout, adjust the vertical
scale and/or position knob to show the e ntire waveform
on the screen.
7. Use the Vert ical controls to select a waveform to display,
open menus t
o set signal coupling, bandwidth, probe
attenuation and type; move the waveform up or down on
the screen;
set the vertical scale factor (volts per vertical
graticule division); and more.
Rear panel
1. Aux Out. Sends a low to high transition when a trigger
occurs, to synchronize other test equipment.
2. LAN. Connects to a 10/100 Base-T local area network for
remote access.
3. US B (Host). Connects to the optional Wi-Fi adapter for
wireless remote access.
4. USB (Device). Connects to a PC for remote control using
USBTMC protocol.
Cleaning
Use a dry, soft cotton cloth to clean the outside of the unit.
Do not use any liquid cleaning agents or c hemicals that could
damage the case, controls, screen, markings or labels, or
possibly infiltrate the case.
Compliance
This sect
ion lists the EMC (electromagnetic compliance),
safety, a nd environmental standards with which the instrument
complies
. This product is intended for use by professional and
trained personnel only; it is not designed for use in households
or by chil
dren.
Questions about he following compliance information may be
directed to the following address:
Tektronix, Inc.
PO Box 500, MS 19‐045
Beaverton, OR 97077, USA
www.tek.com
EMC com pliance
EC declaration of conformity – EMC
Meets intent of Directive 2014/30/EC for Electromagnetic
Compatibility. Compliance was demonstrated to the following
specifications as listed in the Official Journal of t he European
Communities:
EN 6 1326-1, EN 61326 -2-1. EMC requirements for electrical
equipment for measurement, control, and laboratory use.
123
45
CISPR 11 (Group 1, Class A)
IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4;
IEC 6100
0-4-5; IEC 61000-4-6; IEC 61000-4-11
EN 61000-3-2:A1/A2; EN 61000-3-3
1
This product is intended for use in nonresidential areas only. Use in residential
areas may cause electromagnetic interference.
2
Emissi
ons that exceed the levels required by this standard may occur when
this equipment is connected t o a test object.
3
Equipment may not meet the immunity requirements of applicable listed
standards when test leads and/or test probes are connected.
4
For compliance with the EMC standards listed here, high quality shielded
interface cables that incorporate low impedance connection between the cable
shield and the connector shell should be used.
5
10 mV/division to 1 V/division: ≤1.0 division waveform displacement or
≤2.0 di
vision increase in peak-to-peak noise is allowed when the instrument
is subjected to fields and signals as defined in the IEC 61000-4-3 and
IEC 61
000-4-6 tests.
Australia / New Zealand declaration of conformity – EMC
Complies with the EMC provision of the Radiocommunications
Act per the following standard, in accordance with ACMA:
CISPR 11. Radiated and Conducted Emissions, Group
1, Class A, in
accordance with EN 61326-1 and EN
61326-2-1.
Safety compliance
This section lists the safety standards with which the product
complies and o
ther safety compliance information.
EC declaration of conformity – low voltage
Compliance was demonstrated to the following specification as
listed in the Official Jo
urnal of the European Union:
Low Voltage Directive 2
014/35/EU.
EN 61010-1; EN 61010-2-030
U.S. nationally recognized testing laboratory listing
UL 6
1010-1; UL 61010-2-030
Canadian certification
CAN/CSA-C22.2 No. 61010-1; CAN/CSA-C22.2 No.
61010-2-030
Additional compliances
IEC 61010-1; IEC 61010-2-030
Equipmen
ttype
Test and measuring equipment.
Safety class
Class 1 - grounded product.
Pollution degree rating
Pollution Degree 2 (as defined in IEC 61010-1). Rated for
indoor, dry location use only.
Measurement and overvoltage category de scriptions
Measurem
ent terminals on this product may be rated for
measuring mains voltages from one or more of the following
categori
es (see specifi c ratings marked on the product and in
the manual).
Category II. Circuits directly connected to the building wiring
at utilization points (socket outlets and similar points).
NOTE. Only measurement circuits have a measurement
category rating. Only mains power supply circuits have an
overvoltage category rating. Other circuits within the product
do not have either rating.
Mains overvoltage category rating
Overvoltage category II (as defined in IEC 61010-1).
Environmental con siderations
This sec
tion provides information about the environmental
impact of the product.
Restriction of hazardous substances
Complies with RoHS2 Directive 2011/65/EU.
Product end-of-life handling
Observe the following guidelines when recycling an instrument
or component:
Equipment recycling. Production of this equipment required
the extraction and use of natural resources. The equipment may
contain substances that could be harmful to the e nvironment or
human health if improperly handled at the product’s end of life.
To avoid release of such substances into the environment and
to reduce the use of natural resources, we encourage you to
recycle this product in an appropriate system that will ensure
that most of the materials are reused or recycled appropriately.
This symbol indicates that this product complies
with the applicable European Union requirements
according to Directives 2012/19/EU and
2006/6
6/EC on waste electrical and electronic
equipment (WEEE) and batteries. For information
about recycling options, check the Tektronix Web
site (www.tek.com/productrecycling).
Copyright © Tektronix, Inc. All rights reserved. www.tek.com
FCC – EMC
Emissio
ns are within the limits of FCC 47 CFR, Part 15,
Subpart B for Class A equipment.
