Tektronix TBS2202B Service Manual

Theory of operation
This chapter describes the electrical operation of the oscilloscope to the module
level. The block diagrams shows the oscilloscope module interconnections.

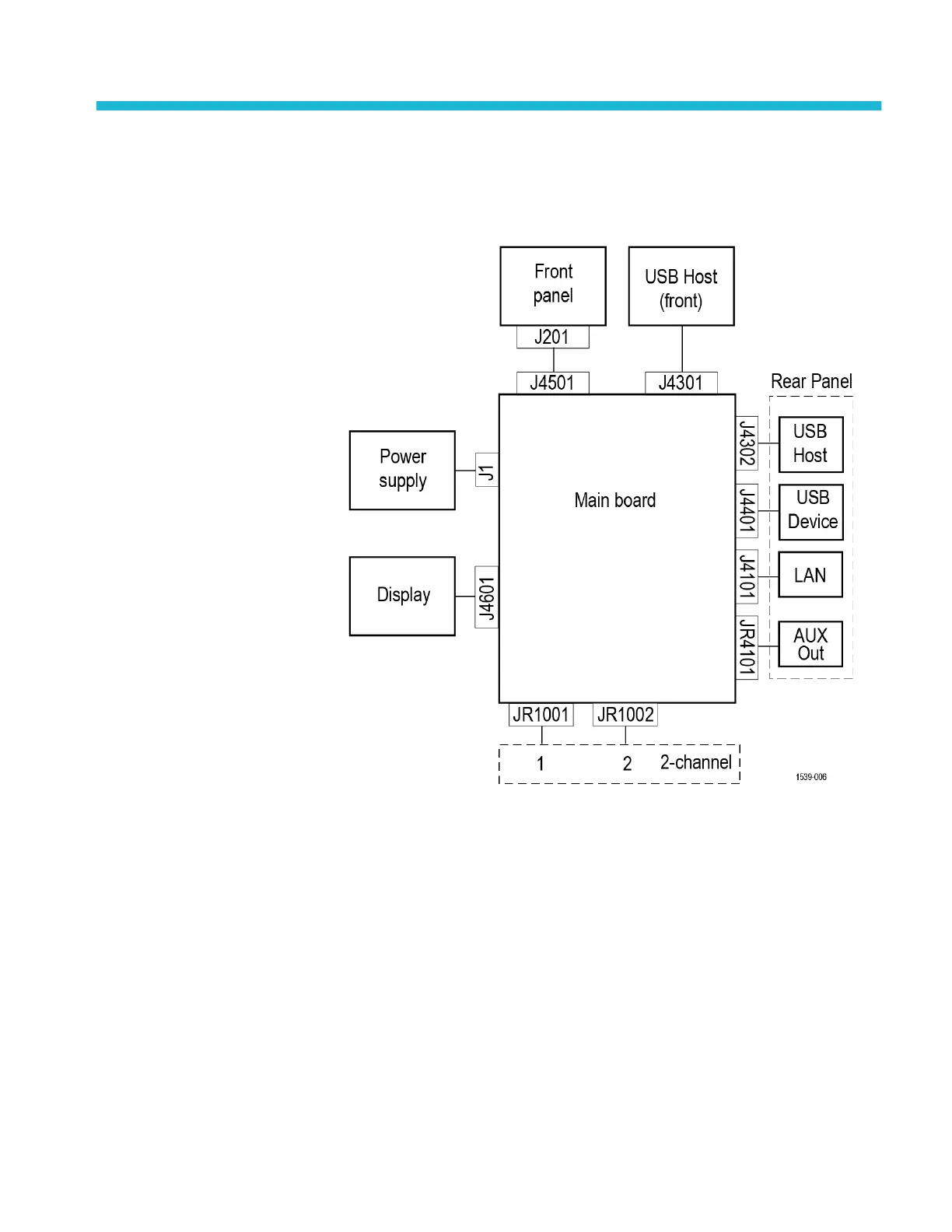

Figure 1: TBS2000B block diagram (2 channel)
TBS2000B Series Service Manual 3
