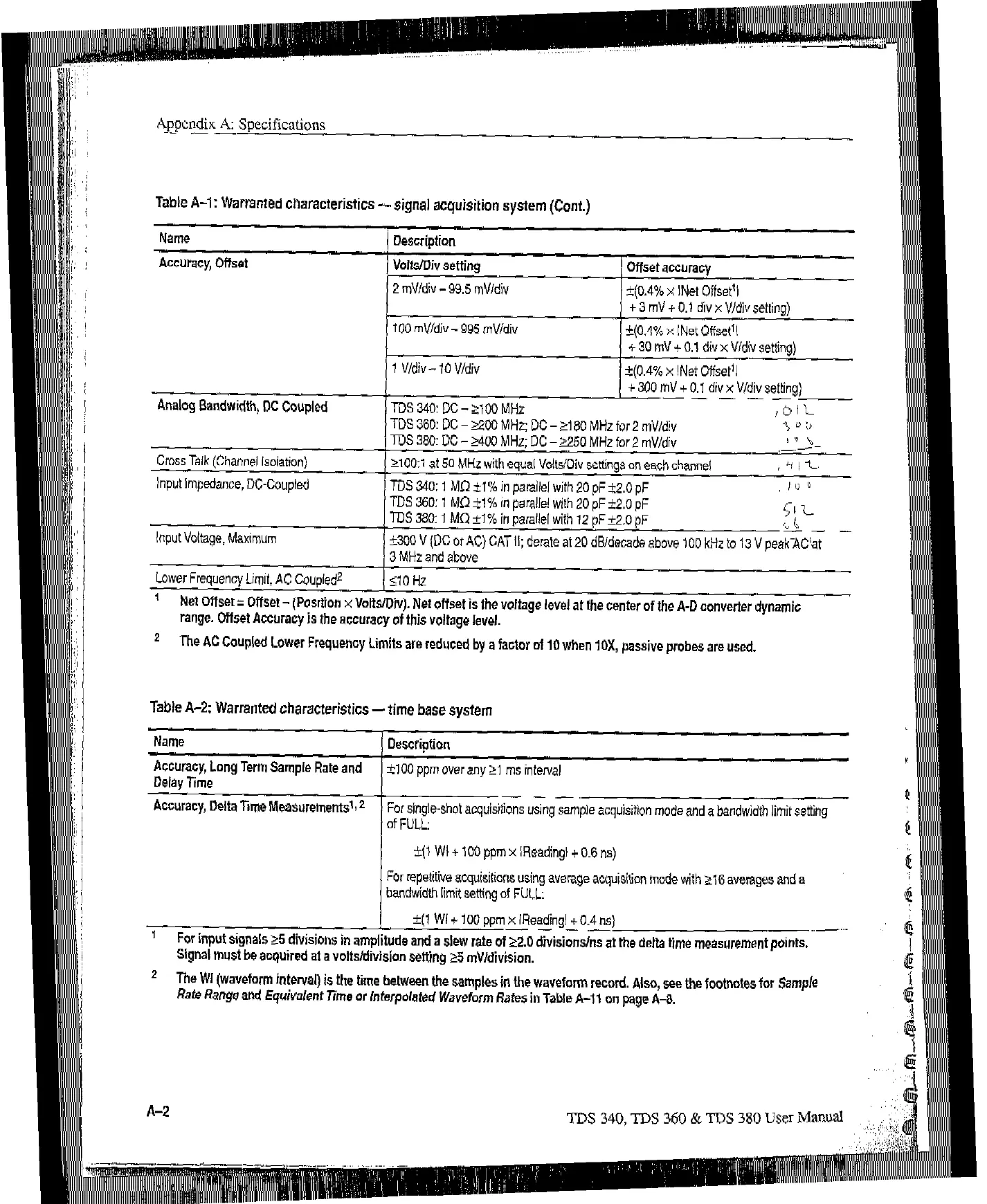

Appendix A: Specifications
-,-
Table
A-l: Warranted characteristics
-signal acquisition system (Cont.)
Name
Description
Accuracy, Offset
VoltslLliv setting
1 Offset accuracy
2 mVidiv - 99.5 mV/div
$491, x INet Offset’l
Analog Bandwidth,
DC coupled
+ 3 mV + 0.1 div x Vldiv setting)
100 mV/div - 995 mV/div
+_(0.4% x INet Offset’1
* 30 mV + 0.1 div x V/div setting)
1 Vldiv- 10 Vldiv
+(0.4%x INet Offset’l
t 300 mV + 0.1 div x Vidiv setting)
TDS 340: DC - ~100 MHz ,biL
TDS 360: DC-ZOO MHZ: DC - t180 MHz for 2 mV/div
f u :,I
lTX 380: DC - ?400 MHz; DC - Z2250 MHz for 2 mV/div
I” \
,,-.--
Cross Talk (Channel isolation)
21OO:l at 50 MHz with equal Volt&iv settings on each channel
‘5 , I.
Input Impedance, DC-Coupled
TDS 340: 1 MR il% in parallel with 20 pF 22.0 pF
lil 0
TDS 360: 1 Mai1 % in parallel with 20 pF k2.0 pF
TDS 380: 1 MfI +I% in parallel with 12 pFi2.0 pF
<IL
L L
Input Voltage, Maximum
*300 V (DC or AC) CAT II; derate at 20 dB/decade above 100 kHz to 13 V peakAC!at
3 MHz and above
Lower Frequency hmit, AC Coupled2
510 Hz
’ Net Offset : Offset - (Position x Volts/Div). Net offset is the voltage level at the center of the A-D converter dynamic
range. Offset Accuracy is the accuracy of this voltage level.
2
The AC Coupled Lower Frequency limits are reduced by a factor of IO when IOX, passive probes are used.
Table A-2: Warranted characteristics-time base system
Name
Accuracy, Long Term Sample Rate and
Delay Time
Description
*lo0 ppm over any 21 ms interval
Accuracy, Delta Xme Measuremems’v 2 For single-shot acquisitions using sample acquisition mode and a bandwidth limit setting
of FULL:
i(l WI + 100 ppm x IReadingl t 0.6 ns)
For repetitive acquisitions using average acquisition mode with 216 averages and a
bandwidth limit setting of FULL:
k(1 WI + 100 ppm x Reading1 c 0.4 ns)
1
For input signals 25 divisions in amplitude and a slew rate of 22.0 diiisionslns at the delta time measurement points.
Signal must be acquired at a volts/division setting 25 mV/division.
2 The WI (waveform interval) is the time between the samples in the waveform record. Also, see the footnotes far Sample
Rate Range and Equivalent Time or lnferpolated Waveform Rates in Table A-11 on page A-8.
TDS 340, TDS 360 & ‘IDS 380 User Manual
