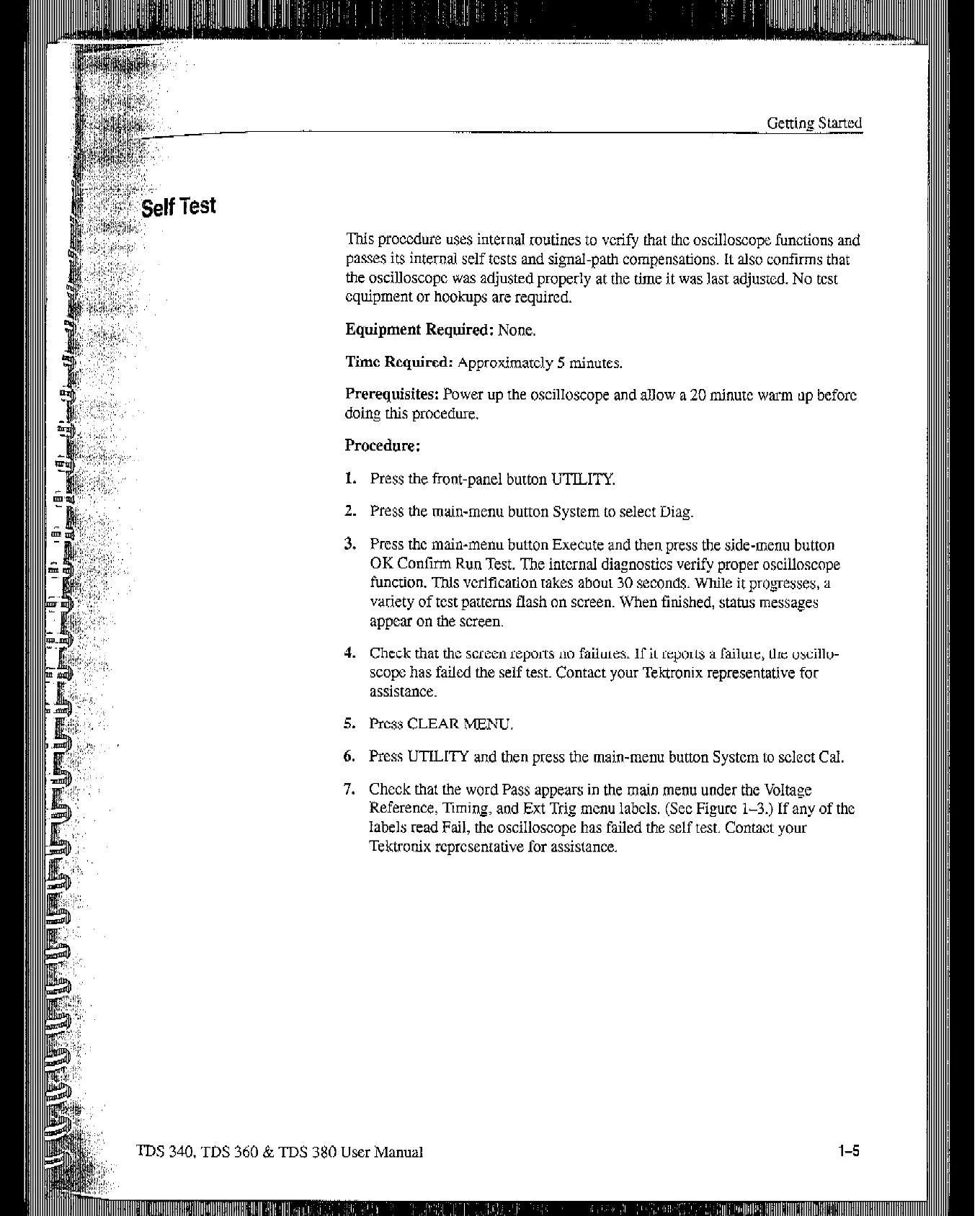

Getting Started
This procedure uses internlll routines to verify that the oscilloscope functions and
passes its internal self tests and signal-path compensations. It also confirms that
the
oscilloscope was
adjusted
properly at the dme it was last adjusted. No test
equipment or hookups
are
required.
Equipment Required: None.
Time Required:
Approximately 5 minutes.
Prerequisites:
Power up the oscilloscope and allow a 20 minute warm up before
doing this procedure.
Procedure:
360 & -IDS 380
User Manual
1.
2.
3.
4.
5.
6.
7.
Press the front-panel button UTILITY.
Press the main-menu button System to select Diag.
Press the main-menu button Execute and then press the side-menu button
OK Confirm Run Test. The internal diagnostics verify proper oscilloscope
function. This vcrlfication takes about 30 seconds. While it progresses, a
variety of test patterns flash on screen. When finished, status messages
appear on the screen.
Check that the screen reports no failures. If it reports a failure, the oscillo-
scope has failed the self test. Contact your Tektronix representadve for
assistance.
Press CLEAR
bmw.
Press UTILITY and then press the main-menu button System I:O select Cal.
Check that the word Pass appears in the main menu under the ‘Voltage
Reference, Timing, and Ext
Trig
menu labels. (Set Figure l-3.) If any of the
labels read Fall, the oscilloscope has failed the self test. Contact your
Tektronix rcprcsentative for assistance.
