Gming Swtcd
First, display lhe GAL menu.
1
Third. run a signal palh -
compensalm and verify
Slatus is Pass.

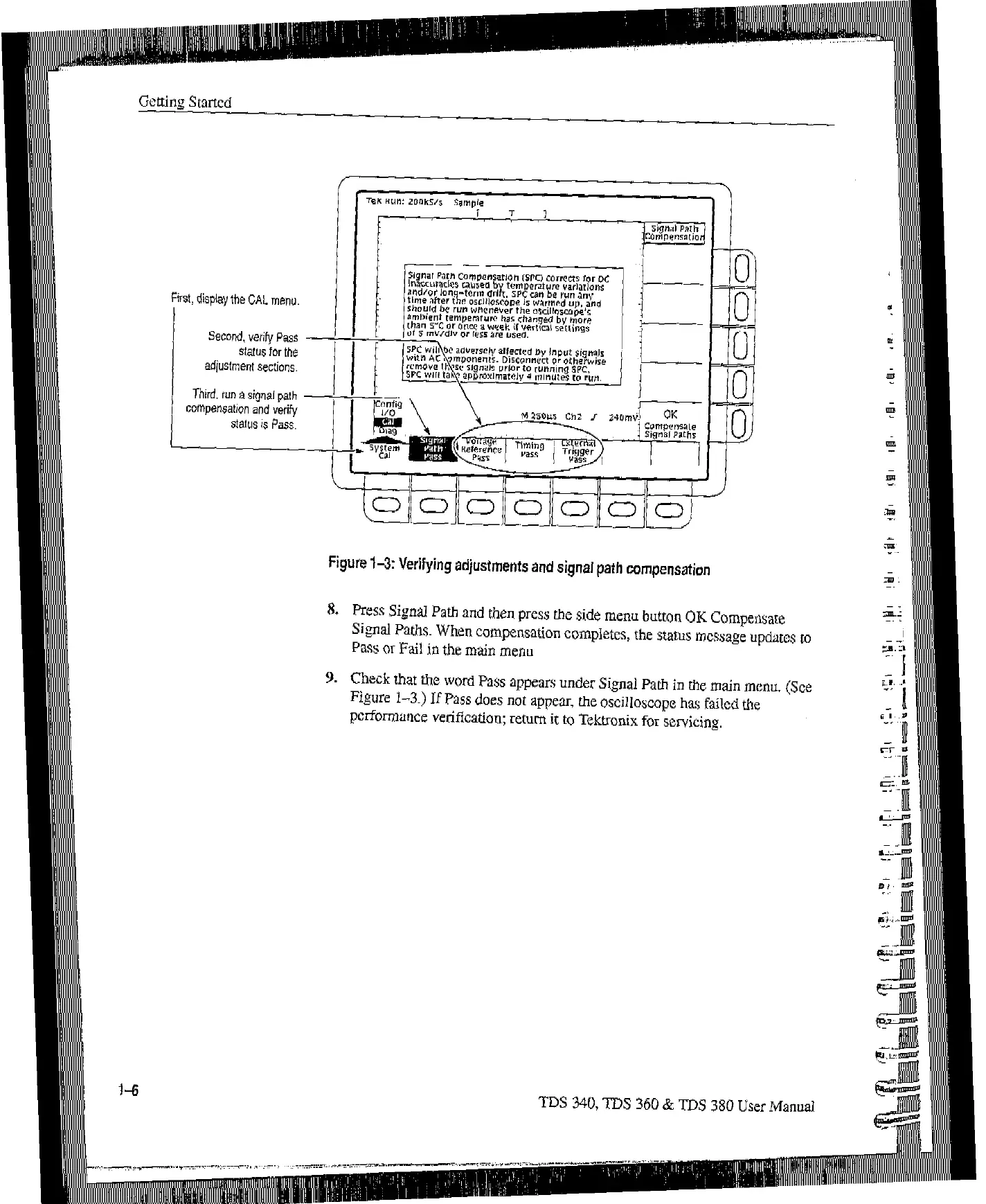

Figure I-3: Verifying adjustments and signal path compensation
8. Press Sipnti Path and then press tbc side menu button OK Compeasate
S@II Paths. When compensation completes, the status message updates to
Pass or Fail in the maan menu
9. Check that the word Pass appears under Signal Path in the main mt:nu. (See
Figure l-3.) If Pass does not appear, the oscilloscope has failed the
performance verification; rctum it to Tektronix for servicing.
TDS 340, T’DS 360 & TDS 380 User Manual
