Getting Started
Functional Test
‘kc purpose of this proccdurc is to conlkm that the oscilloscope functions
properly.
NOTE
Thisprocedure verifiesfunctions; that is, ii verifies that oscilloscope
feutures operate. It does not verify that they upcmte within limits. Therefbre,
when the instructions that follow call for you to veriyy that a signal appears
on-screen “thnl is aboutJive divisions in amplitude’” or “has a period of’about
six horizontal divisions, ” do NOT interpret the quantities given as limits.
Operation within limits is checlled En the peflormance tests, which begin on
pug’e B-5.
110 NOT make changes to the front-penel settings
that
are
not
called
out
in the
procedure.
If
you make changes to these settings other than those culled out in
the procedure, you may obtuin invalid rest&s. In this case, just redo the
vrocedure from stev 1.
Equipment Required: One P6109B (TDS 340), P6111B (TIX 360), or I?61146
(TDS 380)
probe.
Time Required: Approximately 5 minutes.
Procedure:
1. Install tbc probe on CB 1. Connect the probe tip to PROBE COMP on tie
front panel; leave the probe ground unconncctcd. (See Figure IA.)

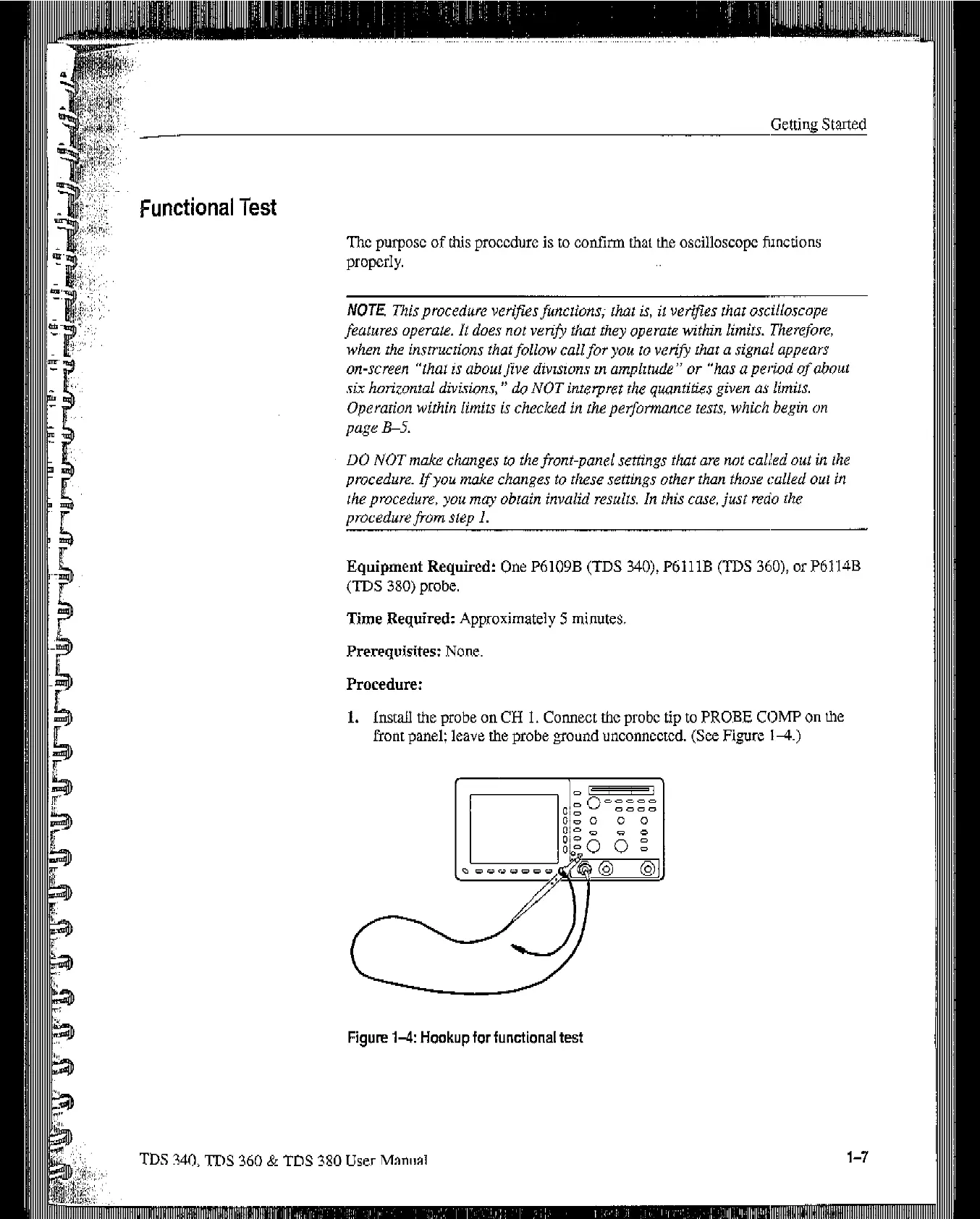

Figure 1-4: Hookup for functional test
TDS 340, TDS 360 & TDS 380
User Manual
