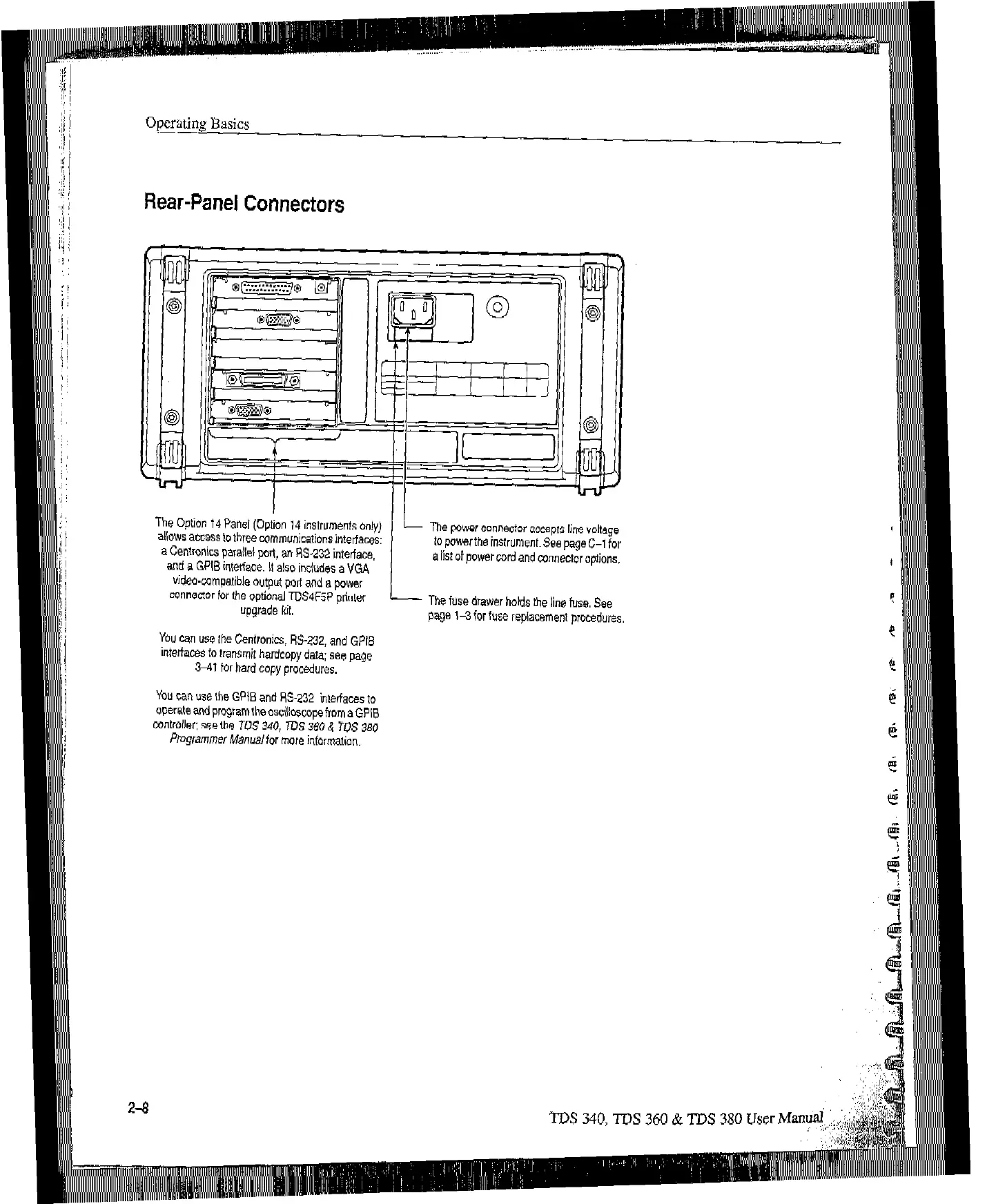

Opcming Basics
-,---
Rear-Panel Connectors
The Option 14 Panel (Option 14 instruments only)
allows ~ccoss 10 three communi&ons interfaces:
a Centronics parallel port, an US-232 interface.
and a GPIE interface. It also includes a VGA
videwxnparibla output pod and a power
mnn~clor for Ihe optional TDS4F5Q printer
upgrade kit,
YOU can “so Ihe Centronics, K-232, and GPIB
interfaces to Iranemil hardcopy data: see page
Wl tar hard copy procedures.
You can use lhe WI6 and RS-232 innixes to
operateaodprogt~mtheoscilloscopefromaGPl~
controller: see Ih@ TDS 340, lDS 360 & TDS 380
Programmer
Manualfor more informaban.
The power connector accepts line voltage
to powerthe inslrument.SeepageC-1 for
a lis! of power cord and connector options.
- The fuse drawer holds the line fuse. See
page 13 for fuse replacement procedures.
