Connecting a Probe
Compensating a Probe
The TDS 340, TIX 360, and TDS 380 come wilh two standard-accessory
probes. Use these probes to conduct signals to the oscilloscope. For detailed
probe specifications and instructions, see the instruction manual packaged with
the probe.
To connect a probe to the oscilloscope, attach the BNC end of the pro:bc to &her
the CH 1 or CA 2 inpul. Be sure to twist the probe end clockwise until tie BNC
is fully locked. See Figure 2-3.

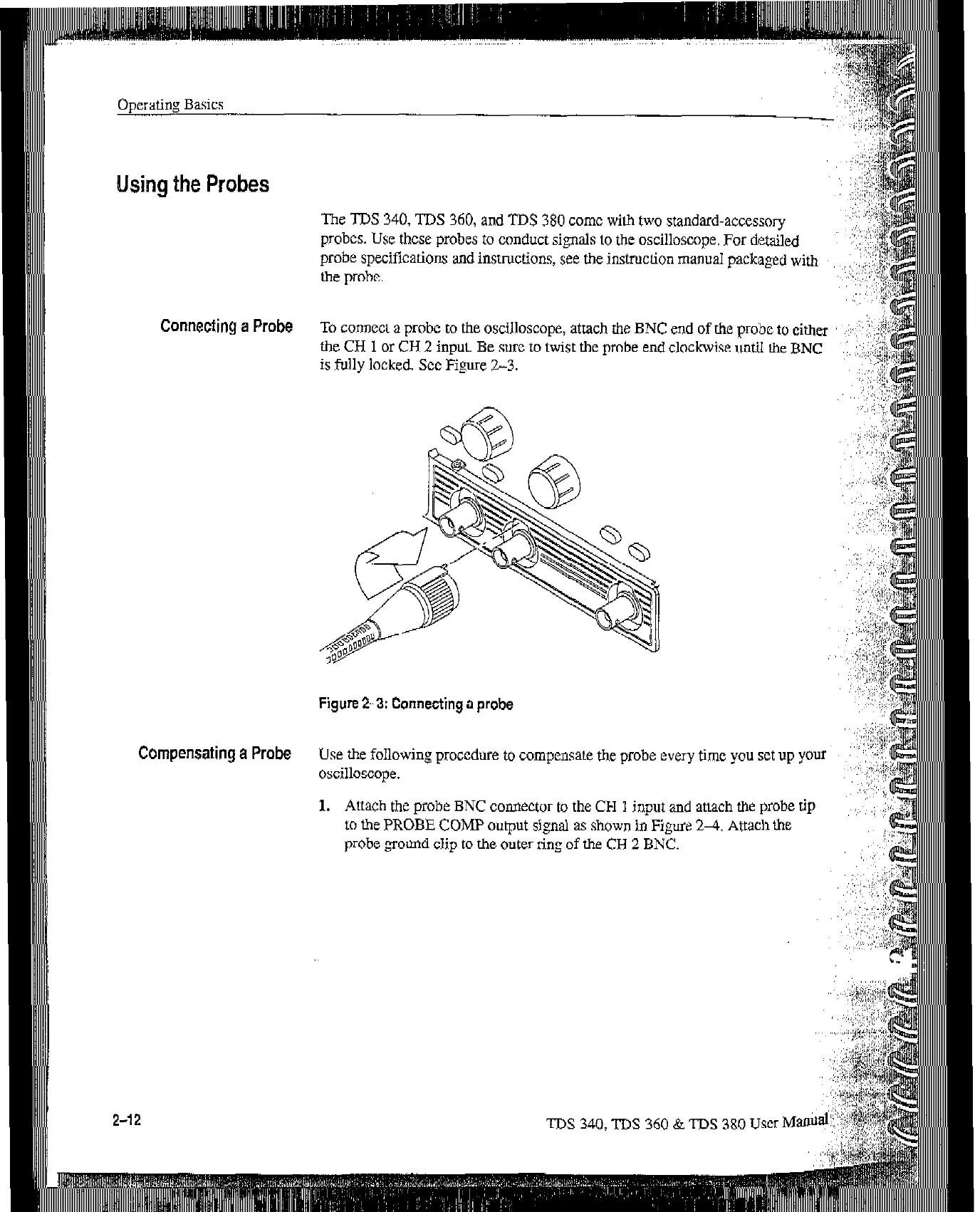

Figure 2-3: Connecting a probe
Use the following procedure to compensate the probe every tim,c you set up your
oscilloscope.
1. Attach the probe BNC connector to the CH 1 input and attach the probe tip
10 the PROBE COMP output signal as shown in Figure 24.
Attach
the
probe sound clip to the outer ring of the CH 2 ENC.
‘ES 340, -IDS 360
& ‘IDS 380 User M:
